Procedures

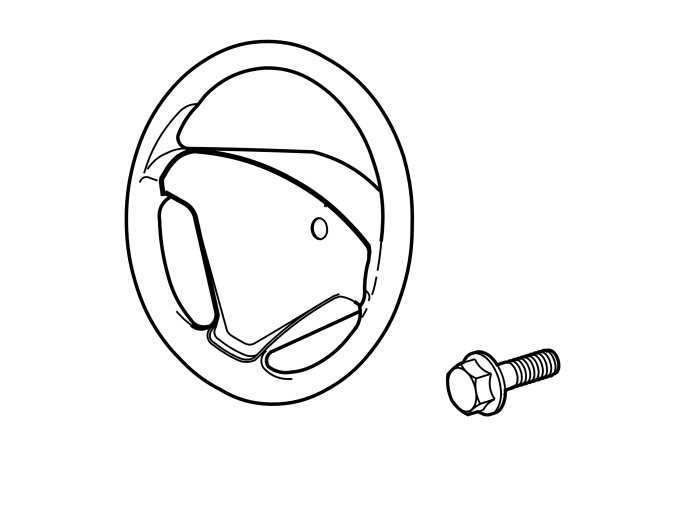

Steering wheel

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Cars equipped with SRS/SIPS (Airbag)

Warning! Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent:1. Personal injury2. Damage to or malfunction of the SRS/SIPS system.Work on the SRS/SIPS systems or related components must always be carried out by an authorized Volvo workshop.

Is the car equipped with SRS (supplemental restraint system)?
Cars equipped with a driver's airbag have the letters "SRS" imprinted on the centre panel of the steering wheel. Cars equipped with driver's and passenger airbags are marked with "SRS" on both the steering wheel centre panel and also on the dashboard close to the airbag.
If the car is equipped with SIPS (side impact protection system ) a "SIPS" decal is marked on both the front seats.
Cars equipped with inflatable curtains have the marking "SRS" on one of the panels along the posts on the inside of the car.
Cars equipped with SRS (supplemental restraint system) also have an "SRS" decal on the front windscreen.

Warning! The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery or accessories, within these areas. The panels must be able to open in the correct manner at the right time, otherwise there is an increased risk of personal injury in the event of a collision.

Do not damage the SRS wiring!
Do not trap, chafe, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.

Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to the service instructions in VIDA for information on carrying out such work. This is to prevent damage.

SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorized Volvo workshop.

Supplemental restraint system module, SRS

C30/S40(04-)/V50/S60/XC60/C70(06-)/V70/XC70/S80/XC90
The supplemental restraint system module (SRS) is located on the tunnel under the centre console, in front of the parking brake.

Warning! The ignition must be in position "0" and the key removed from the ignition switch if any connector in the SRS system is to be unplugged. Then wait at least three minutes and disconnect the battery negative lead before unplugging any of the connectors. When work is completed, the ignition key must be turned to position "II" before reconnecting the battery negative lead.

Steering wheel

Removing the steering wheel

- Turn the ignition key to position 0. Leave the key in the ignition switch
- Disconnect the battery negative lead.

Note! Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.

- Turn the steering wheel a quarter turn so that the holes on the reverse of the steering wheel are accessible.

- Insert a screwdriver in the hole (2) on the reverse of the steering wheel, at right angles to the rear surface of the steering wheel. Insert the screwdriver as far as possible to determine the position of the end of the spring clip (1)
- Position the end of the screwdriver on the top of the spring clip as illustrated
- Pry the screwdriver upwards towards the upper edge of the hole (2) so that the end of the screwdriver presses the spring clip down (1) until one side of the steering wheel module springs out and releases from the mounting
- Turn the steering wheel a half turn in the opposite direction. Carry out the same operation on the other side
- Turn the steering wheel to the neutral position. Remove the ignition key from the ignition switch.

- Fold the steering wheel module out

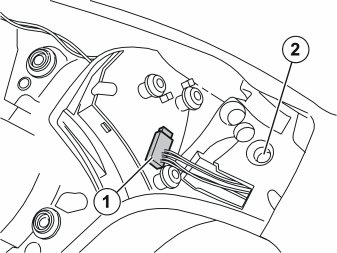

- Remove the two connectors (1) for the ignition cables for the airbag. First press in the catches on the sides. Then pull the connectors straight out.

Note! The connectors are tightly secured. However, tools must not be used when removing.

- Place the steering wheel module to one side.

Note! Position the steering wheel module with the front upwards in a secure position while carrying out the work.

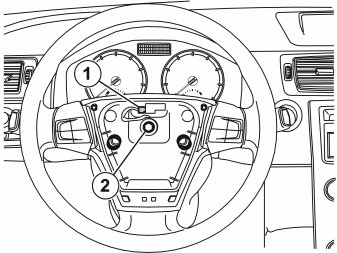

Remove:
- the connector (1)
- the screw (2) that holds the steering wheel, leave the steering wheel in place.

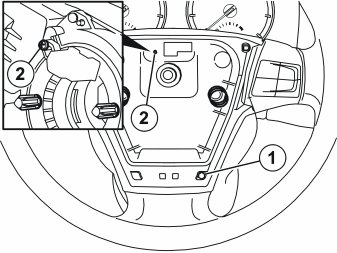

Remove:
- the screw (1). Install the screw in the contact reel (2)
- the steering wheel. Pull the wiring out through the hole in the steering wheel.

Transferring components

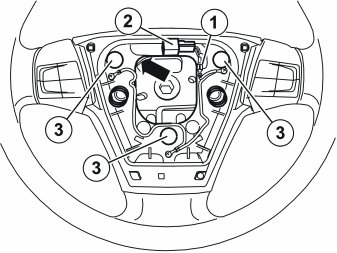

- Disconnect the cable terminal (1) for the horn
- Disconnect the connector (2) for the keypads from the horn
- Remove the three screws (3). Lift the horn out.

- Remove the left and right-hand keypads from the keypad. Carefully pry them off using a plastic weatherstrip tool. Twist the weatherstrip tool to pry out the keypad. It is firmly held in place by three lugs in the steering wheel, so some force is required to remove it.

Applies to cars with an RTI keypad
- Disconnect the connector (1) for the keypad for RTI
- Remove the screw (2).

Applies to cars with an RTI keypad
- Pry up the keypad at the front edge and unhook it from the steering wheel at the rear edge
- Pull the cable out of the steering wheel.

Applies to all models
- Pull out the wiring from the keypads from the channels in the bottom of the steering wheel. Transfer the wiring with the keypads to the new steering wheel.

Applies to cars with vibration dampers
- Remove the screw and the vibration damper from the steering wheel. Transfer to the new steering wheel.

Applies to cars with an RTI keypad

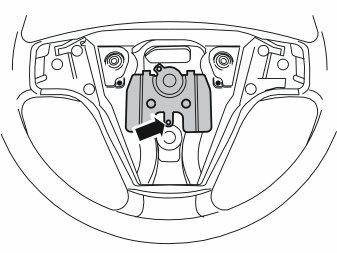

- Remove the cover on the reverse of the right-hand spoke on the new steering wheel.

Applies to cars with an RTI keypad

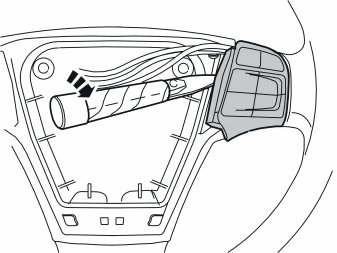

- Insert the RTI wiring into the reverse of the spokes and route them into the steering wheel
- Reinstall the keypad on the reverse of the spokes. Tighten using the screw.

Applies to all models
- Press the keypads into the steering wheel.

Note! Ensure that the wiring routed under the keypads is not trapped when they are pressed into position.

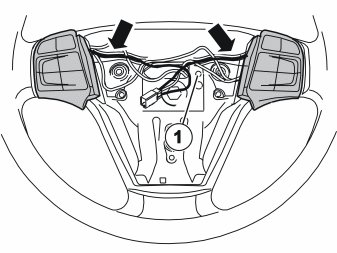

- Position the wiring for the keypads (including RTI) in the grooves in the bottom of the steering wheel
- Tighten the ground lead (1).

- Check that the three springs underneath the horn are in position
- Reinstall the horn in the steering wheel

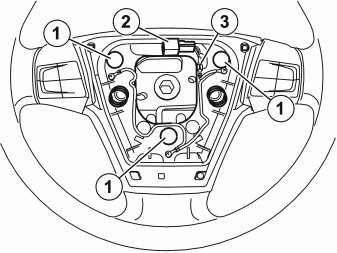

- Install the three screws (1) in the horn. Tighten the screws crosswise. Tighten to 8±2 Nm (6±1.5 lbf.ft.).

Note! The screws are self tapping which may mean that it is difficult to screw in.

- Check the function of the horn by pressing the horn around its entire circumference. A metallic noise should be heard when the three contact points come into contact
- Reconnect the connector (2) for the keypads in the horn
- Reinstall the cable terminal (3) for the horn.

Installing the new steering wheel

- Insert the wiring through the hole in the new steering wheel

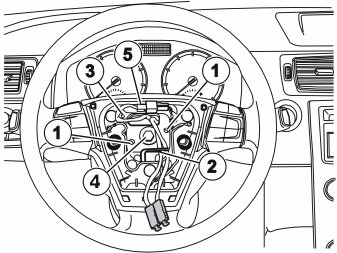

- Carefully install the new steering wheel by holding it straight and aligning the locating pins (1) on the contact reel. Route the ignition wiring for the airbag through holder (2)
- Remove the screw (3) from the contact reel and reinstall the screw in the holder. See point 6
- Install the new screw (4). Tighten to 40 Nm (30 lbf.ft.)
- Connect the connector (5).

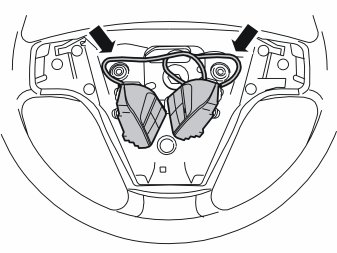

- Check that the two springs (1) are in position
- Press the two connectors for the ignition cables for the airbag into the steering wheel module
- Insert the two pins on the reverse of the steering wheel module in the two springs. Ensure that the ignition cables are not trapped
- Press the steering wheel module into the mountings. (Two clicks should be heard.).

- Insert the key in the ignition and turn to position "II".
- Reconnect the battery negative lead.
