Inner Side Link Ball Joint

Operation number: 64310-2

Inner side link ball joint











Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel Refer to: Wheels Service and Repair




Torque: Track rod end to track rod, 63 Nm
Torque: Track rod end to track rod, 90 Nm





Caution! Take extra care not to damage the thread during installation.

Note! Note the number of turns when removing the tie rod end.

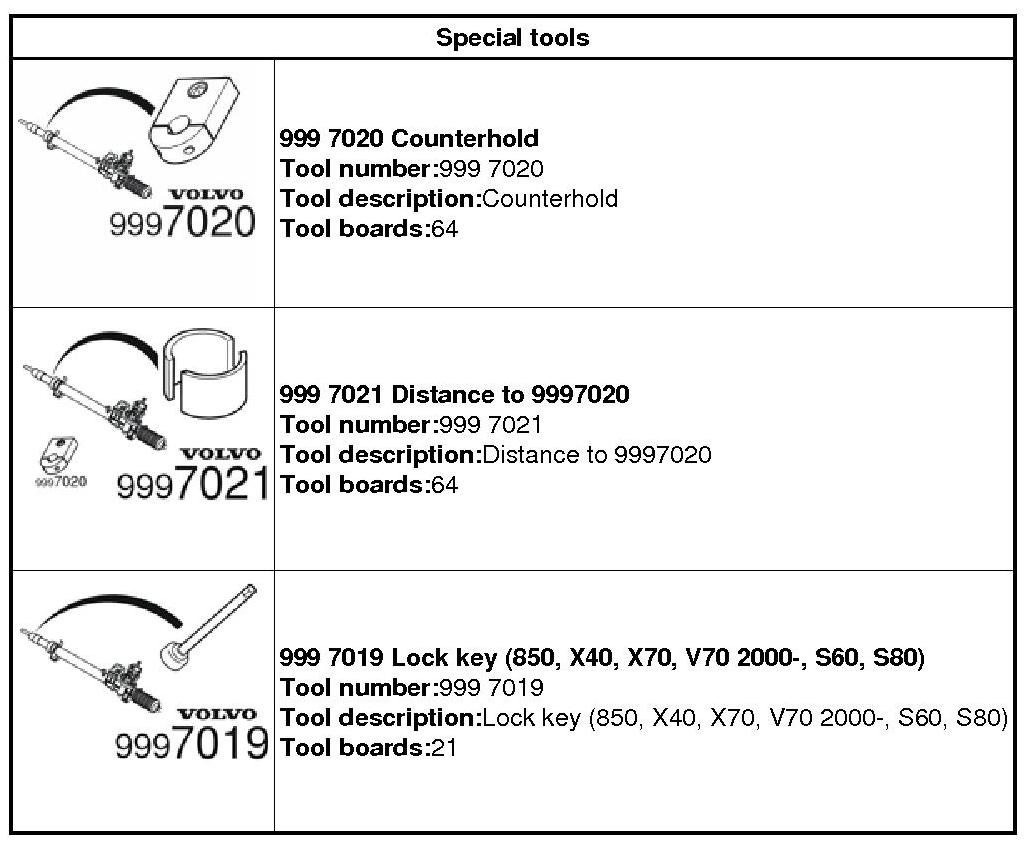

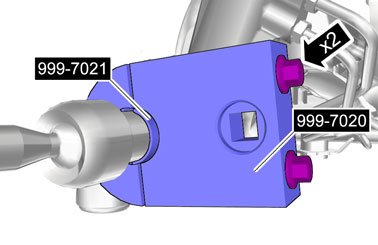

999 7020 Counterhold 999 7020 Counterhold 999 7021 Distance to 9997020 999 7021 Distance to 9997020
Torque: M8, 24 Nm

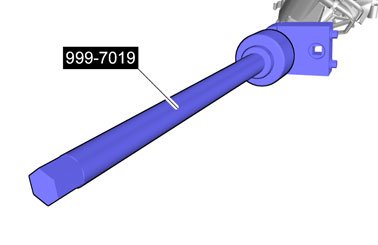

999 7019 Lock key 999 7019 Lock Key
Torque: Inner steering joint for steering gear, 110 Nm
Torque: Inner steering joint for steering gear, 69 Nm

Installation

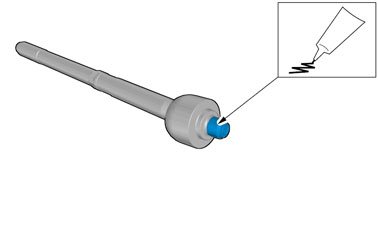

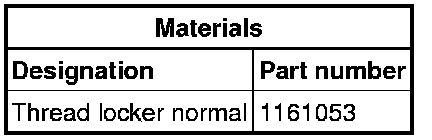

Use: Thread locker normal, 1161053

To install, reverse the removal procedure.

Perform wheel angles check Refer to: Wheel angles, check Service and Repair
