Starter Motor: Service and Repair

Operation number: 33118-2

Starter motor

Removal

Note! Removal steps in this procedure may contain installation details.

Perform battery disconnecting and connecting

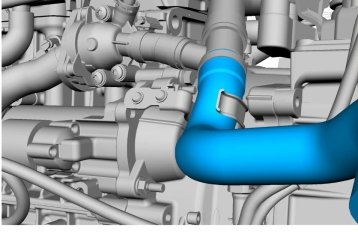

Remove the air filter housing Refer to: Air cleaner housing, B5254T7 Service and Repair

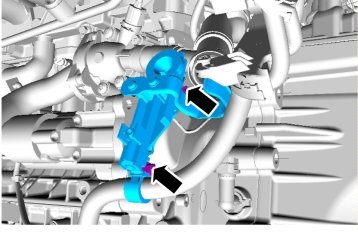

Torque: M6, 10 Nm

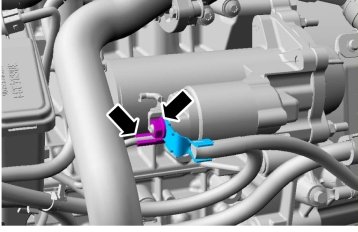

1. Torque: Battery positive cable to starter solenoid, 11 Nm

2. Torque: Start impulse lead , 8,5 Nm

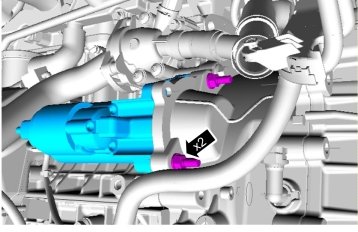

Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure.
