Starting System: Service and Repair

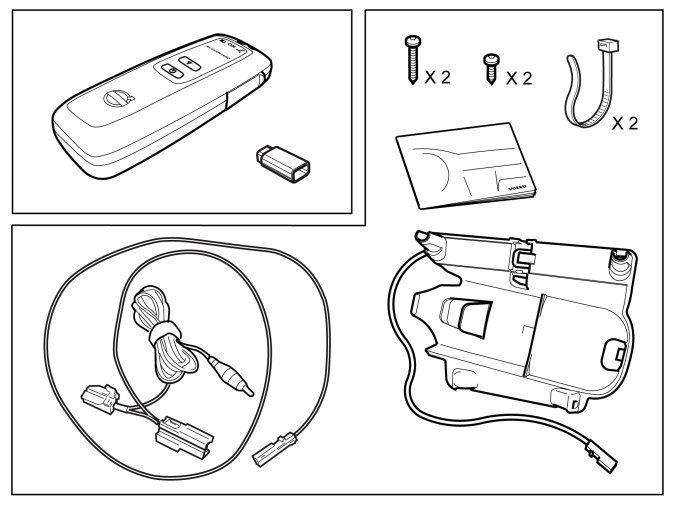

Alcoguard, Kit number 30756979
INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Alcoguard, Kit number 30756979
- Activate (and calibrate) the alcohol lock according to the description in the Technical Journal in TIE. Relevant journal is TJ 19265 "Alcoguard, calibration and activation software, AWARD v.6.x.x".
The necessary software can also be found there.
- After installing the software on a PC according to the TJ, connect the alcohol lock to the PC using the supplied communication cable. A question asking whether to activate appears automatically (if the lock is not activated), otherwise nothing special happens.
- Turn the ignition switch to position 0.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
- Open the glovebox.

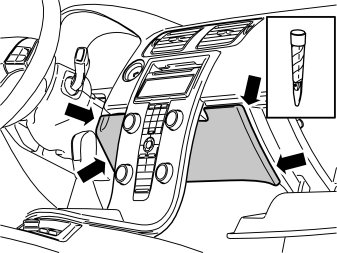

- Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
- Pull the panel off downwards.

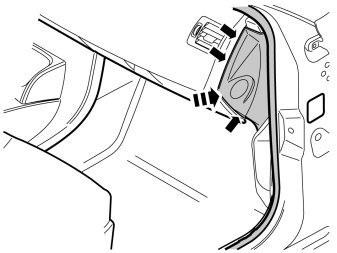

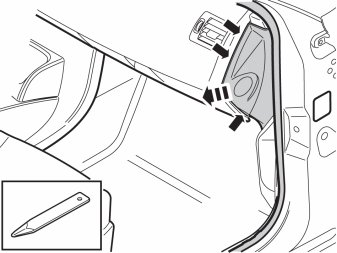

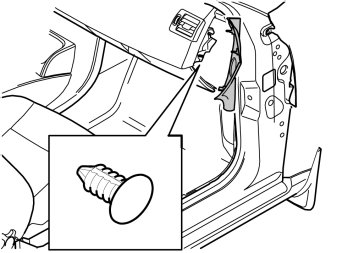

- Remove the panel on the right end of the dashboard. Carefully pry it loose all around with a weatherstrip tool, until the three legs release.
Note! Do not damage the dashboard.
- Detach the clip holding the nozzle from the glove compartment.
- Remove the glove compartment's rubber mat.

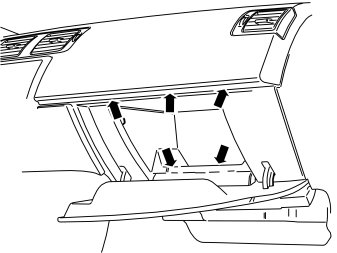

- Remove the five screws in the opening to the glovebox.
- Pull the glove compartment straight back to loosen the two hidden clips in the upper edge.
- Remove the outer section of the glovebox.
- Unplug the connectors on the top.

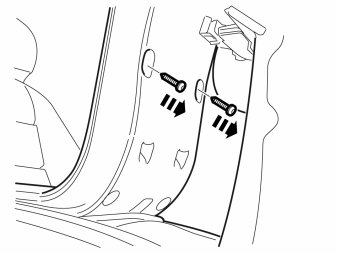

- Remove the two remaining screws at the rear of the centre console.
- Put away the screws and get new ones from the kit.
Illustrations A and B

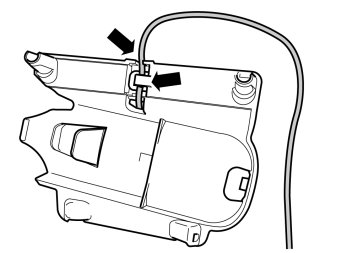

- Take the holder from the kit and insert the green connector in the lower hole and pull through the whole wire.
- Hook on the wire around the lip in the upper hole and place it in the slot at the top.
Note! Be careful when tightening the bolts, as it is easy to tighten them in too far.

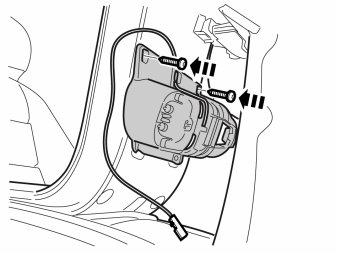

- Take the two longer screws from the kit.

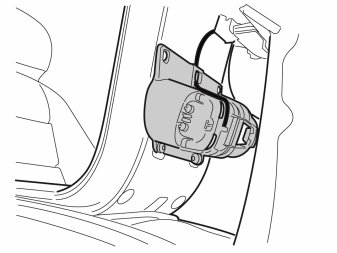

- Install the holder with the two screws in the upper edge and tighten.
- Tighten the bolts so that the head just has contact against the holder.
- Then tighten the bolts slightly more.
- Check that the holder is fastened at the top.
Note! The lower holes are angled 45°.

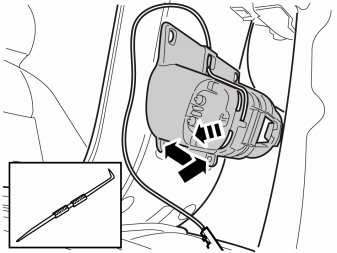

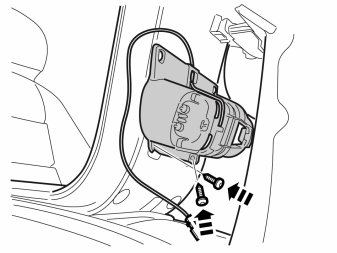

- Press the holder's middle part against the centre console's rear side. Make a distinct mark through the middle of the hole in the holder with a scribe to get the self-tapping screw to centre better.
- Repeat the operation on the other side.
- Take the self-tapping screws from the kit and tighten them.

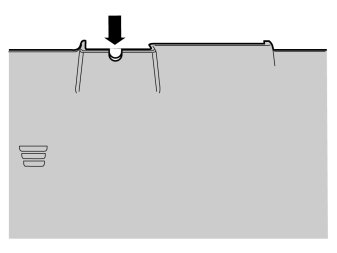

- File a slot in the panel for the holder's wire as shown.

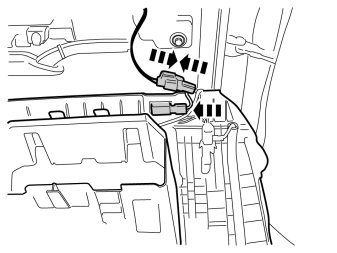

- Pull up the wire from the holder to the green connector for the display.
- Clamp the wire to the connector's cable harness so that the wire reaches down to the holder and so that it fits in the slot in the panel.

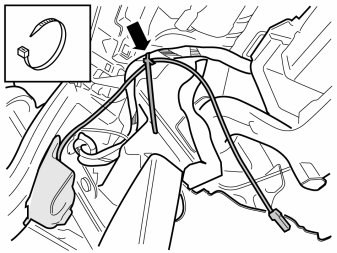

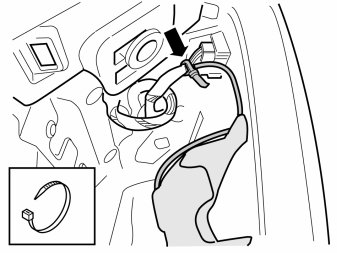

- Get the wire coming from the holder and attach it on the right side of the centre console. The wire shall be attached to the existing cable harness with a cable tie from the kit.

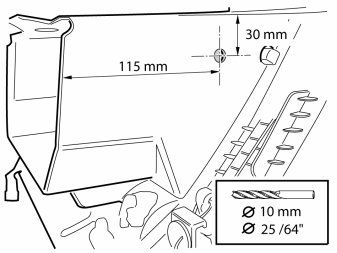

- Drill a - 10 mm (25/64") hole on the left side of the glove compartment's outer part.
- Remove any swarf.

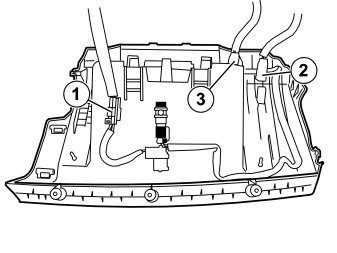

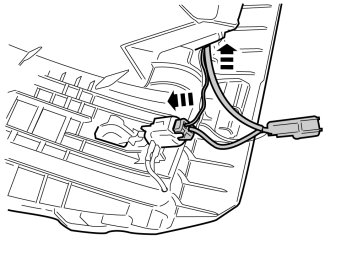

- Get the adapter wire from the kit and plug in one connector to the connection for the glove compartment lighting.
- Route the wires at the lower edge to the other side.

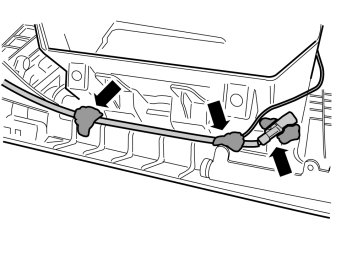

- Fasten the wires and the little green connector with pieces of butyl tape.

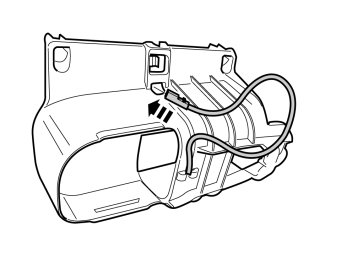

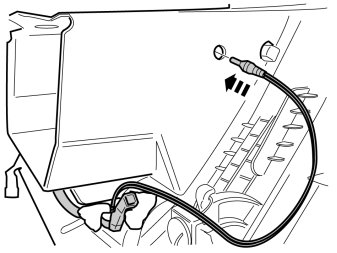

- Insert the little green connector and the whole wire in the glove compartment's outer part.

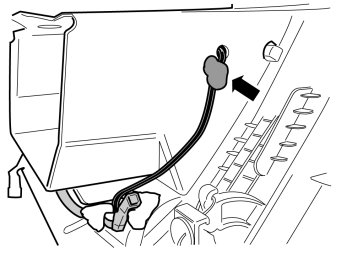

- Fasten the wire at the hole with a piece of butyl tape.

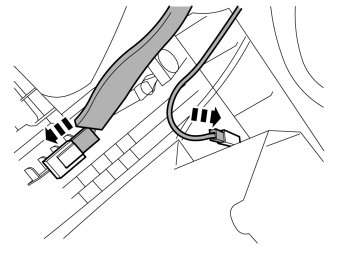

- Get the outer glove compartment and plug in the connector from the glove compartment lighting to the corresponding in the new adapter wire.
- Plug in remaining connector in the adapter wire for the glove compartment lighting.
- Plug in the green connector from the holder to corresponding on the adapter wire for the glove compartment lighting.
- Fasten the grey connector on the glove compartment's outer part.
- Install and tighten down the glove compartment's outer part.
- Roll up the wire in the glove compartment and fasten it with the velcro strap.
Illustrations A and B

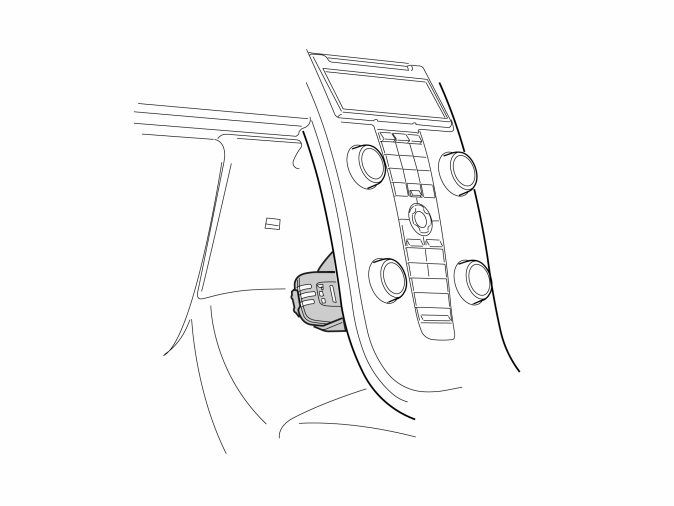

- Fit the wire from the holder in the slot on the panel and press to fasten.
- Download the software for the accessory's function following the service information in VIDA.
