Alternator: Service and Repair

Operation number: 32102-2

Generator

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the air filter housing Refer to: Air cleaner housing, B5254T7 Service and Repair

Remove the throttle body Refer to: Throttle body, B5254T7 Removal and Replacement

Remove the auxiliaries belt Refer to: Accessory Drive Belt Tensioner, B5254T7 Service and Repair

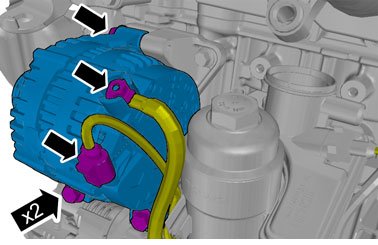

Remove the following items:
1. Torque: Generator B+ terminal, 15 Nm

2. Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure.
