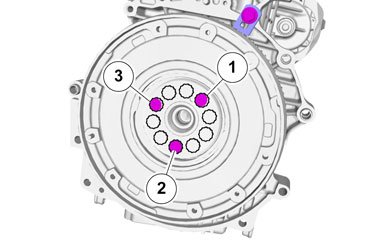

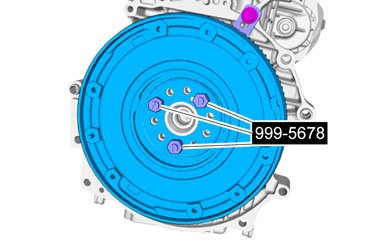

Flywheel

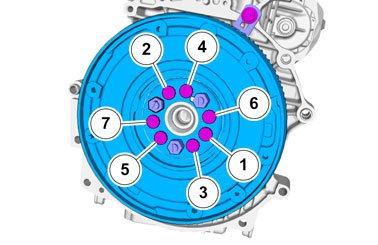

Install new bolts

Caution! Make sure that the flywheel is in full contact with the crankshaft flange before installing the flywheel bolts

Note! Make sure that the locating pin on the crankshaft is aligned with the guide hole in the flywheel or flexplate

Stage 1 45 Nm
Stage 2 65°
