Home >> Volvo >> 2012 >> C30 R Design L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Connecting Rod, Engine

Connecting Rod, Engine














Connecting Rod Bolts
Install new bolts
First 15 Nm
Second 25 Nm
Third 100°

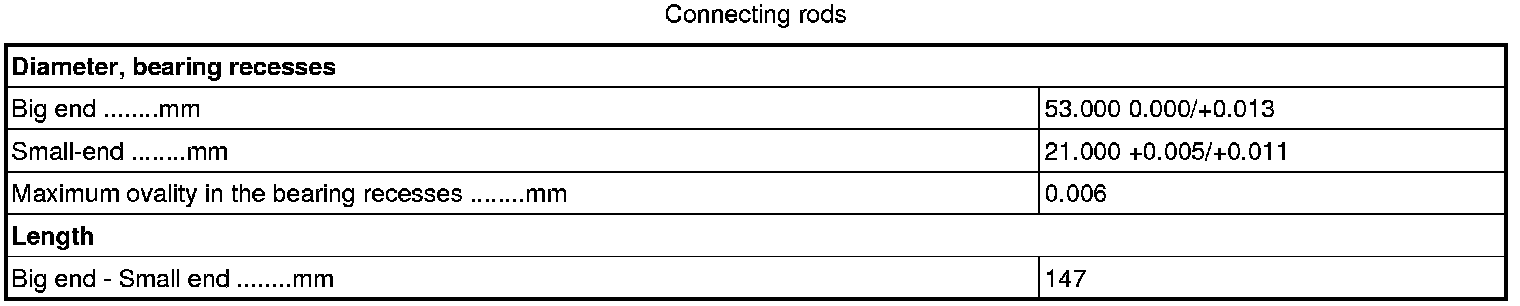

Connecting Rods
