Lubricant Driveshaft

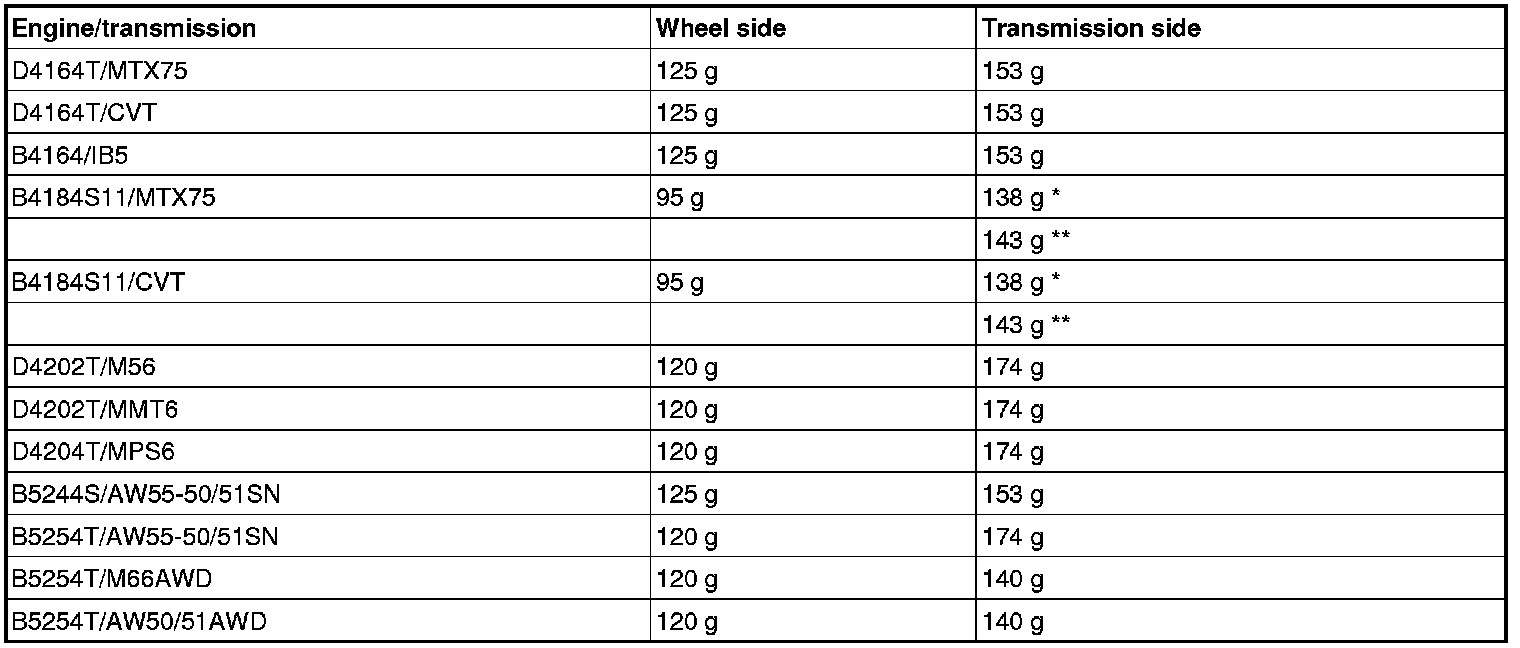

Lubricant driveshaft





* inner ring thickness - 46 mm
** inner ring thickness - 50 mm
