Engine - Coolant Temperature Sensor/Switch: Locations

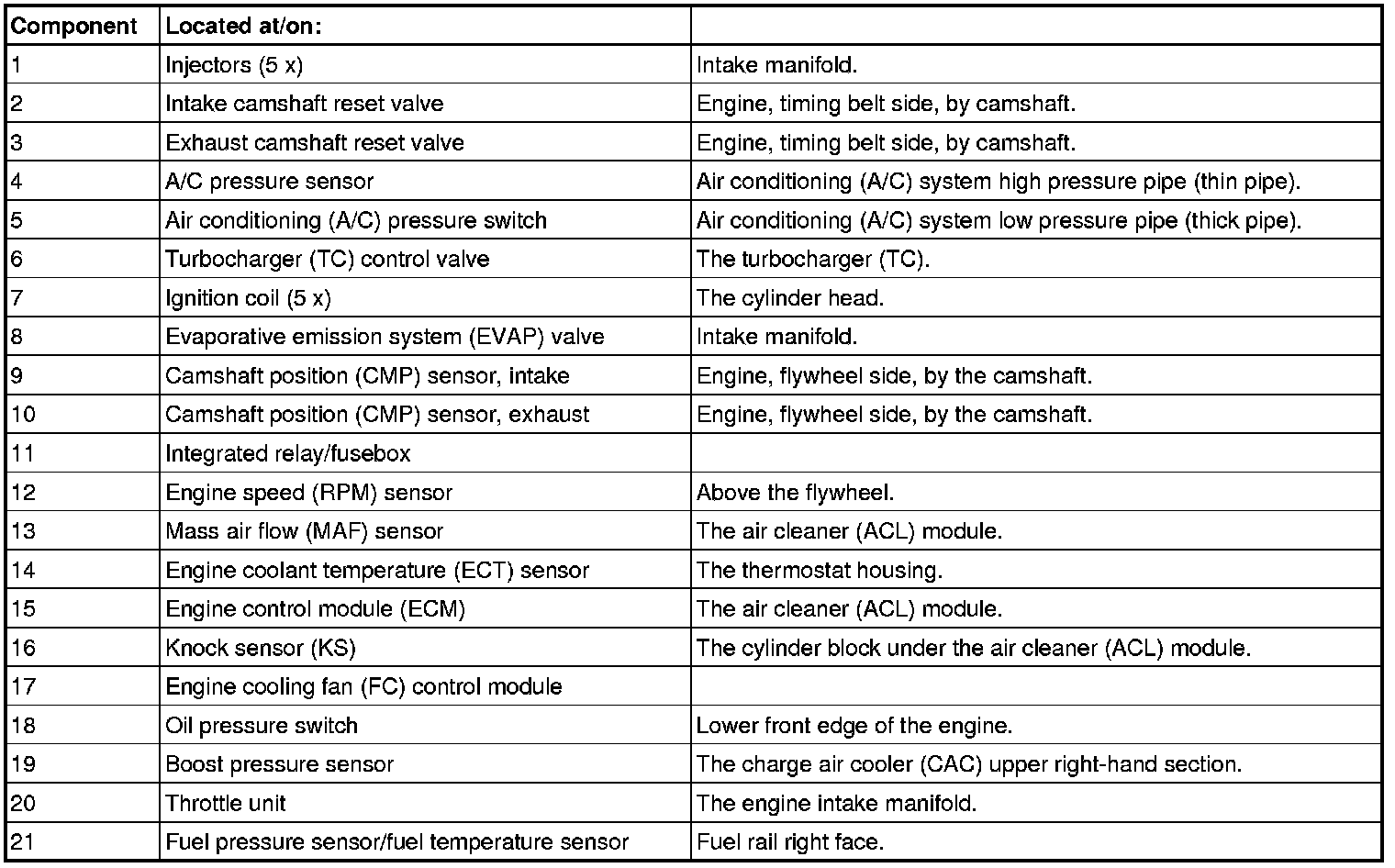

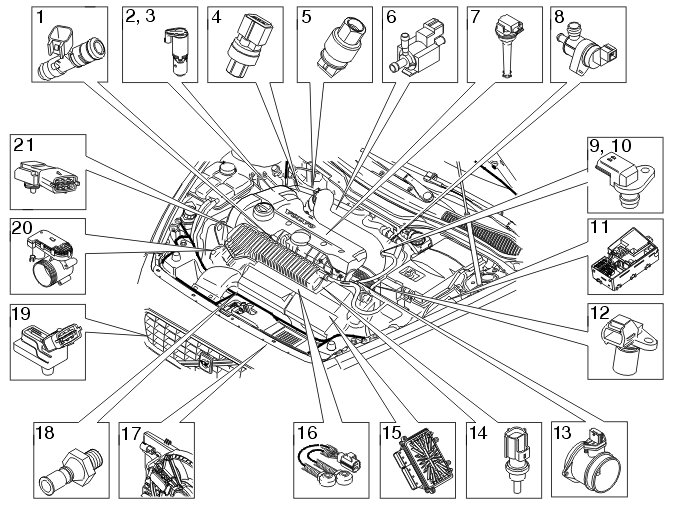

Location of components, engine compartment

Not all the following components are necessarily in the car. The components vary between engine types.
