Seat Belt: Service and Repair

Stop button seat belt

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Installation

Installing the stop button




This method covers all stops positioned on seat belts in the vehicle.
The stop button must be positioned in the center of the belt at a distance of XXXX mm from the end mounting. See: Stop button seat belt Specifications.

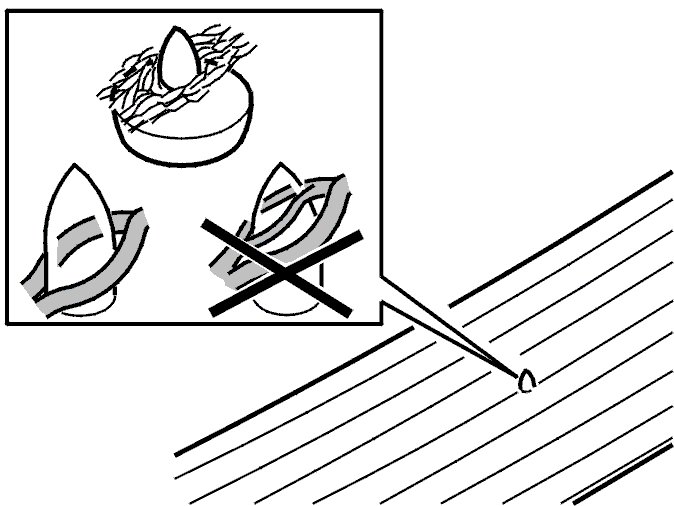

Check that the belt does not fray when the spike on the stop is pressed through the belt.

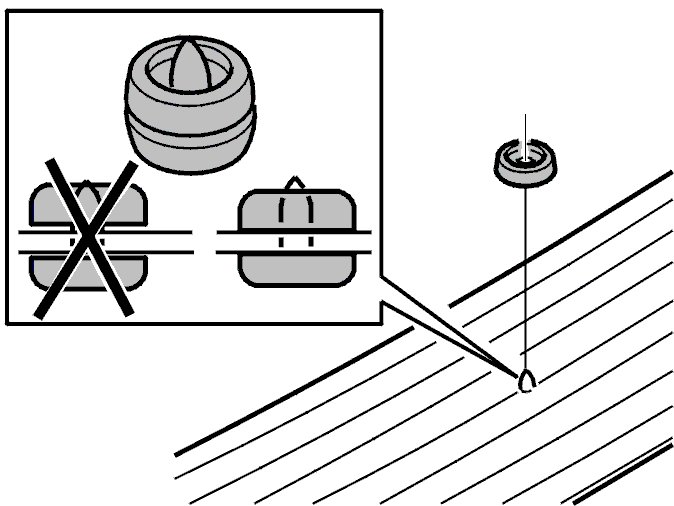

Thread the cover onto the stop.




Press the sections together as much as possible.

Hint: Hold the cover in place so that there is no gap. Use round-nosed pliers.

Warning! The seat belt material must not be overheated or it will melt. If this happens, the entire seat belt must be replaced.

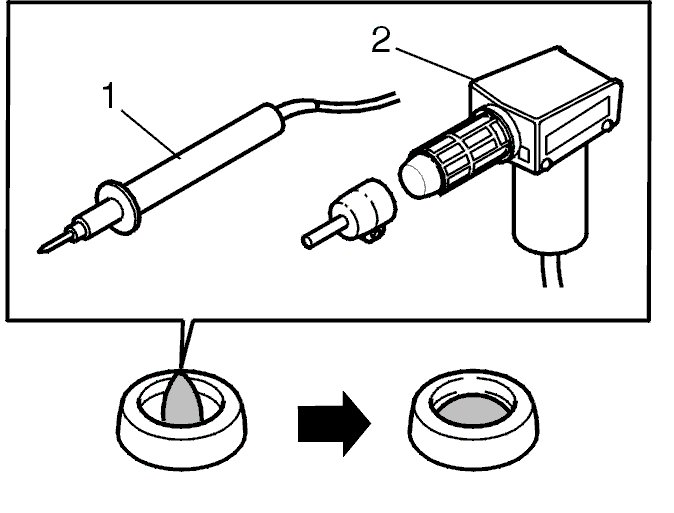

Heat using a soldering iron or a hot air gun equipped with a long narrow nozzle. Heat until the spike melts and the sections cannot be separated. Hold in place until the material has cooled down.
Check that the stop is secure and cannot be pulled off.
