Inflatable Curtain

Operation number: 88451-2

Inflatable curtain

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Detach and lower the headlining. Refer to: Headlining with sun roof Service and Repair

Disconnect the negative battery lead.

Information about the handling and storage of pyrotechnic SRS units. Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

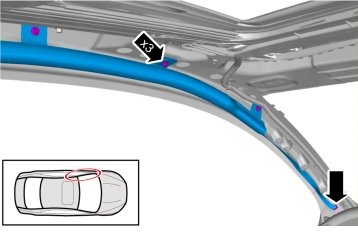

Torque: Inflatable curtain to the body, 8 Nm

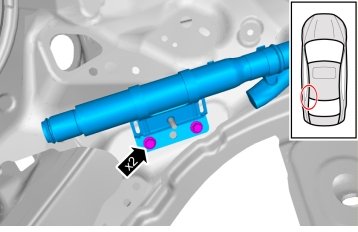

Torque: Inflatable curtain to the body, 8 Nm

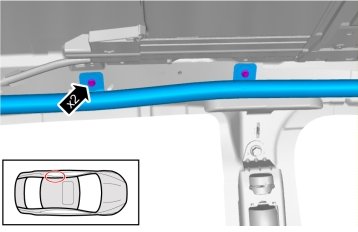

Torque: Inflatable curtain to the body, 8 Nm

Installation

To install, reverse the removal procedure

Carry out a post check. Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
