Turbocharger: Service and Repair

Turbocharger (TC)

Removal

Note! Removal steps in this procedure may contain installation details.

Perform battery disconnecting and connecting

Perform cooling system draining, charging and bleeding Refer to: Cooling system - draining, charging and bleeding, B5254T7 Service and Repair

Remove the catalytic converter Refer to: Catalytic converter, B5254T7 Service and Repair

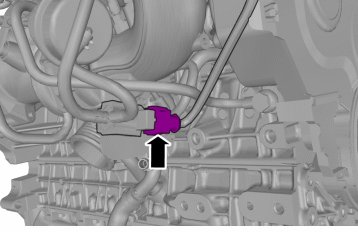

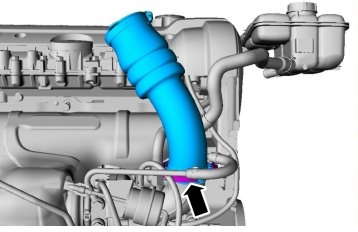

Caution! Make sure that the inside of the pipe ends are clean and free of oil residue.

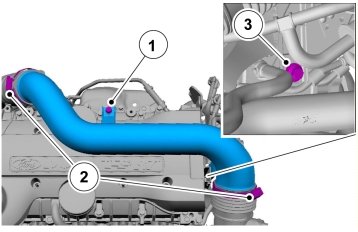

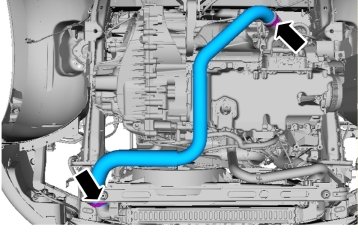

Caution! Make sure that the inside of the pipe ends are clean and free of oil residue.

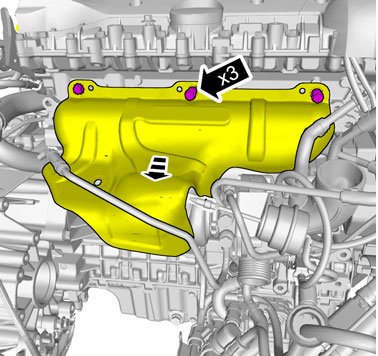

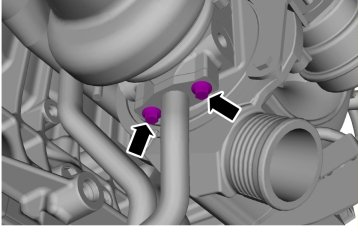

Torque: M6, 10 Nm





Caution! Make sure that the inside of the pipe ends are clean and free of oil residue.




Torque: M6, 10 Nm

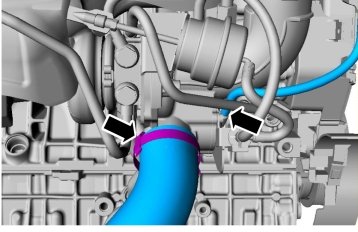

Caution! Make sure that the inside of the pipe ends are clean and free of oil residue.





Caution! Make sure that the inside of the pipe ends are clean and free of oil residue.




Torque: M8, 24 Nm

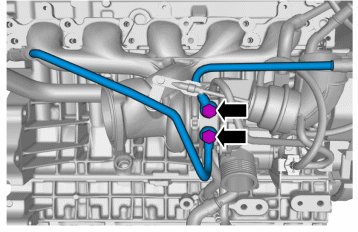

Torque: Coolant pipe to turbocharger, 38 Nm

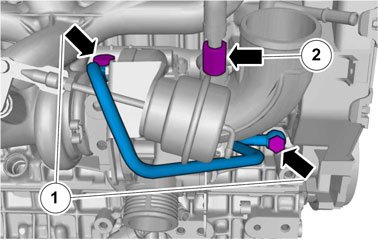

1. Torque: Oil pressure pipe to the turbocharger, 26 Nm

2. Torque: Crankcase connection-turbocharger, 25 Nm

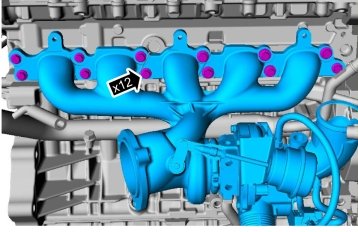

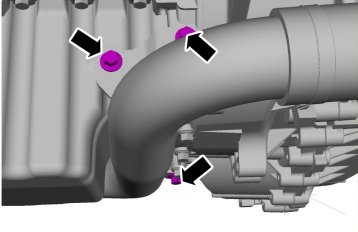

Torque: M6, 10 Nm




Torque: M8, 24 Nm





Installation

To install, reverse the removal procedure.
