Fuel Injector: Service and Repair

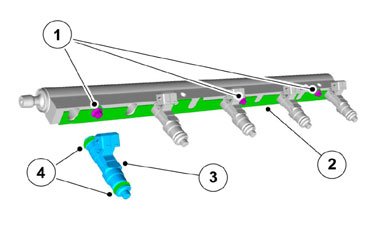

Fuel injector

Removal

Note! Removal steps in this procedure may contain installation details.

Drain depressurizing fuel system Refer to: Fuel system pressure release, B5254T7 Fuel System Pressure Release

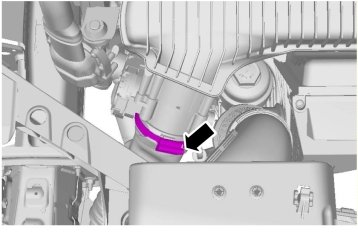

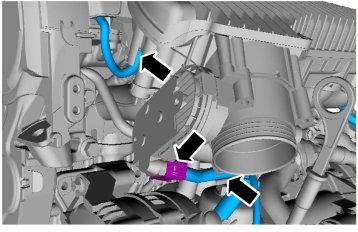

Remove the air filter housing Refer to: Air cleaner housing, B5254T7 Service and Repair

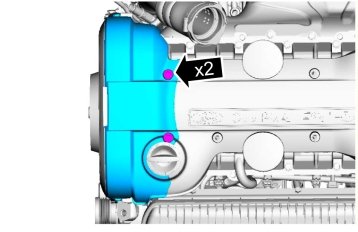

Torque: M6, 10 Nm

Note! Make sure that the mating faces are clean and free of foreign material.

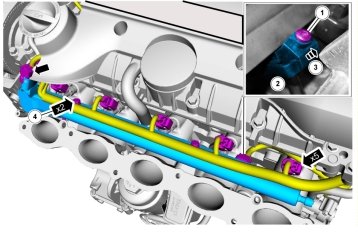

Torque: M7, 17 Nm

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
