Procedures

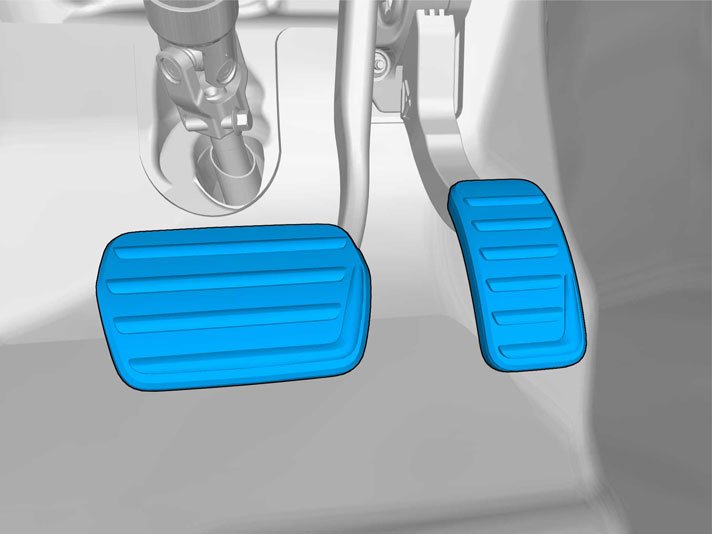

Sport pedals

Equipment

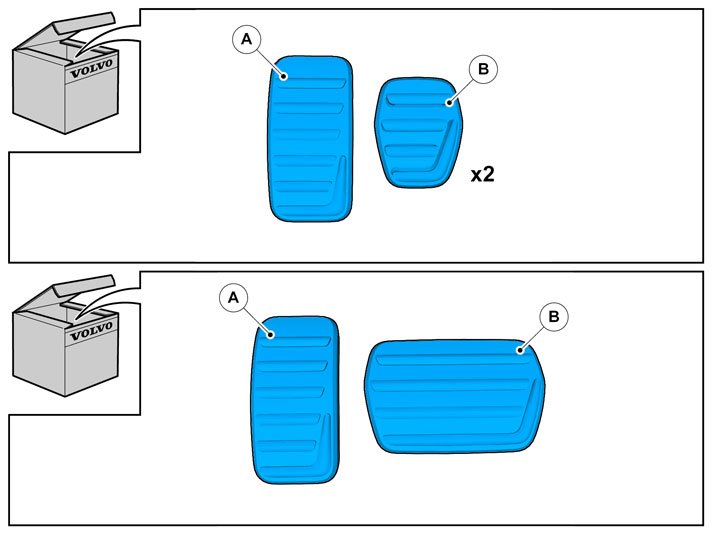

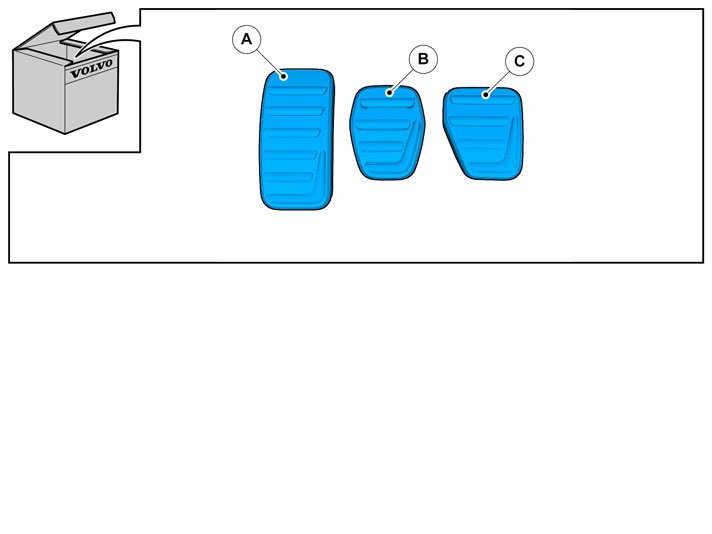

Kit contents













Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Installation




Clean the surface.

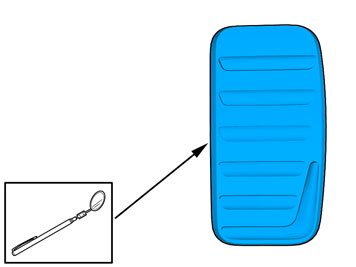

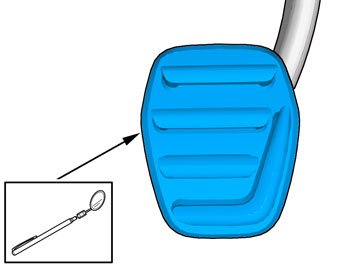

Caution! Using a mirror check that the pedal rubber covers the edges of the pedal.

Right-hand drive vehicles

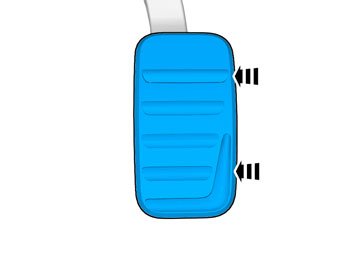

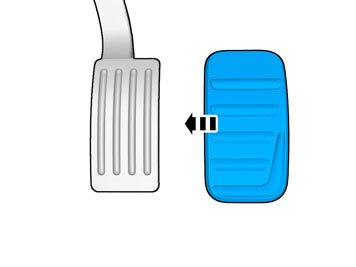

Hook the pedal rubber onto the long side of the accelerator pedal.

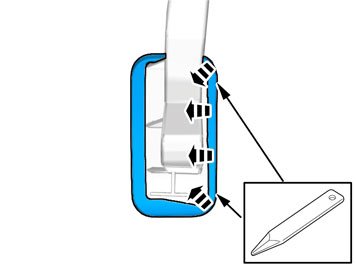

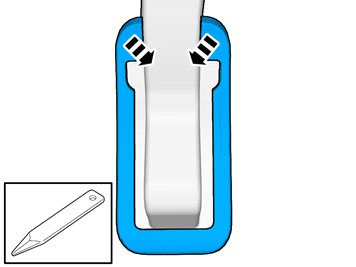

Press the pedal rubber towards the pedal and at the same time fold the pedal rubber's profile over the pedal using a straightening tool.









Caution! Using a mirror check that the pedal rubber covers the edges of the pedal.

Cars with automatic transmissions

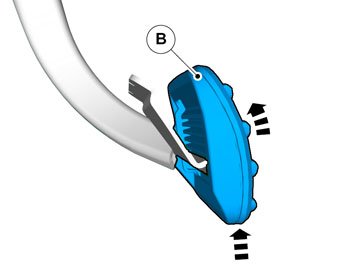

The part(s) are not to be reused.

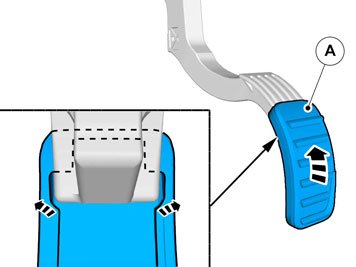

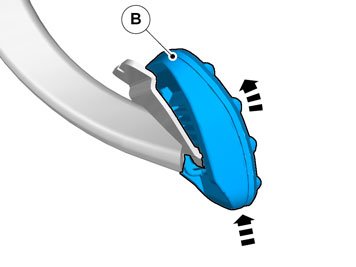

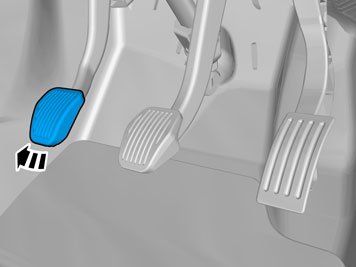

Hook the pedal rubber onto the pedal at the lower edge and pull the pedal rubber upward.

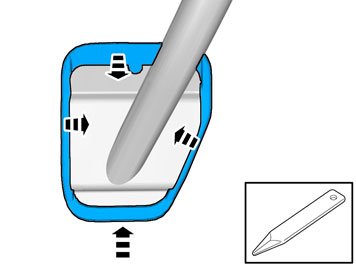

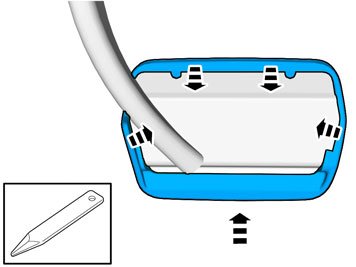

Press the pedal rubber towards the pedal and at the same time fold the pedal rubber's profile over the pedal using a straightening tool.





Caution! Using a mirror check that the pedal rubber covers the edges of the pedal.

Cars with manual transmissions




The part(s) are not to be reused.

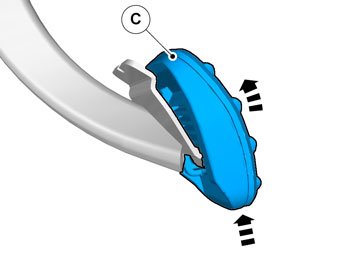

Hook the pedal rubber onto the pedal at the lower edge and pull the pedal rubber upward.

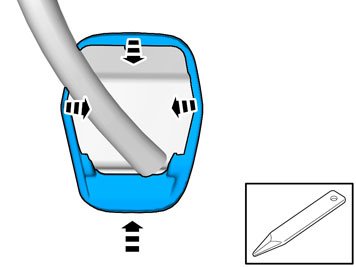

Press the pedal rubber towards the pedal and at the same time fold the pedal rubber's profile over the pedal using a straightening tool.





Caution! Using a mirror check that the pedal rubber covers the edges of the pedal.

Left hand drive vehicles

Repeat method steps for the clutch pedal.

Right-hand drive vehicles




The part(s) are not to be reused.




Hook the pedal rubber onto the pedal at the lower edge and pull the pedal rubber upward.




Press the pedal rubber towards the pedal and at the same time fold the pedal rubber's profile over the pedal using a straightening tool.
