Rear Wheel Hub, Replacing

Rear wheel hub

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work






Remove:
- the wheel

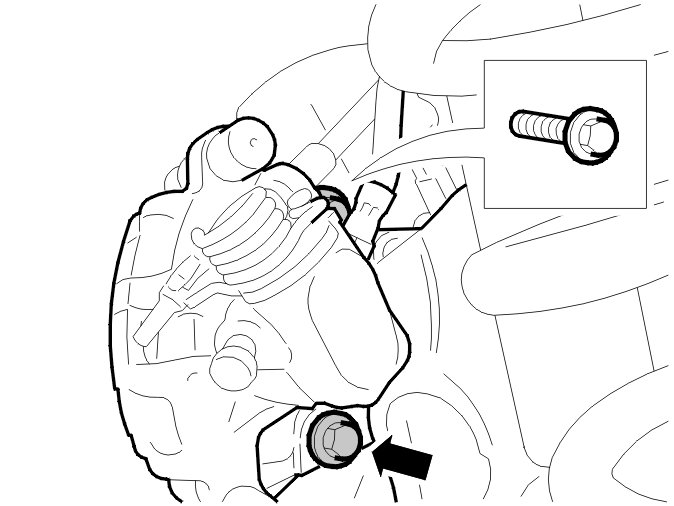

- the screws, 2 pcs., for the brake brace
- the brake caliper. Hang up the brake caliper in a suitable position to avoid damaging the brake hose
- the brake disc

Removing the wheel hub






Remove:

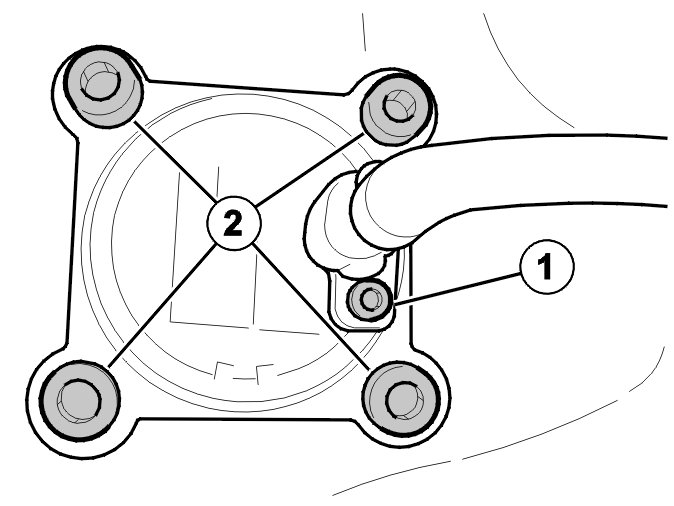

- screw (1), 1 pc.
- the ABS sensor
- the screws (2), 4 pcs.





Remove:
- the wheel hub
- brake shield.

Installation

Installing the wheel hub

Note! For tightening torques, see: Tightening torque [1][2]Specifications.





Install:
- the dust cover
- the wheel hub
- the bolts (2), 4 pcs. M10.
- the ABS sensor
- screw (1), 1 pc. M5, for the ABS-sensor.

Finishing


Install:
- the brake disc
- the brake caliper
- the screws, 2 pcs., for the brake brace. Tighten ac. to: Tightening torque [1][2]Specifications
- the wheel. See: Wheels Service and Repair.
