Pinout Values and Diagnostic Parameters






Signal specification

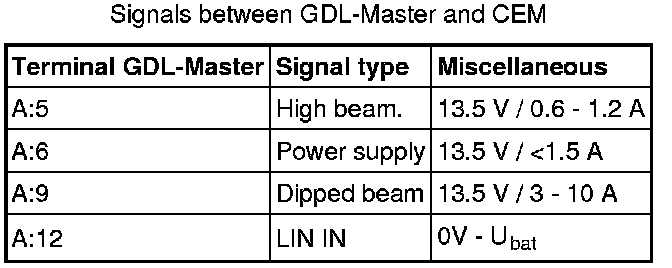

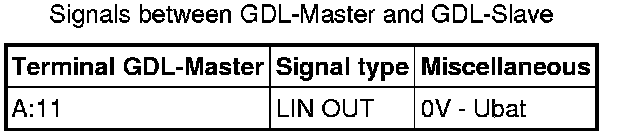

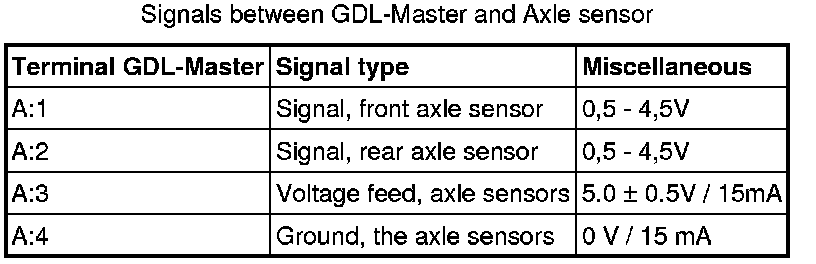

Signal table

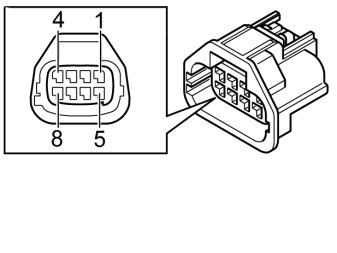

Connector A, GDL-Master

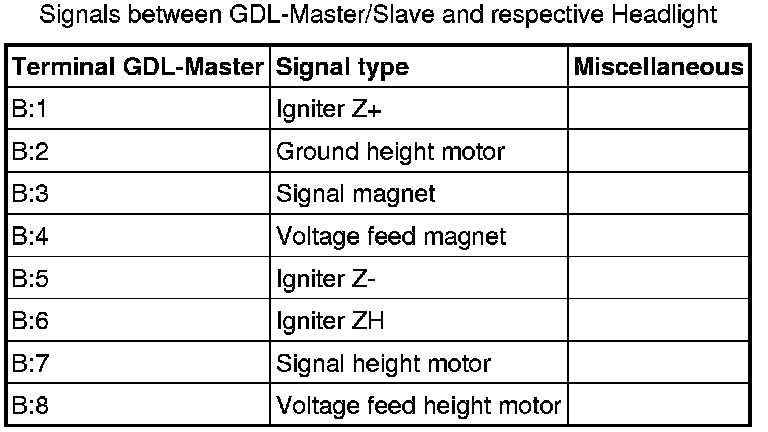

Connector B, GDL-Master
