Procedures

Fog lamps, chassis number 190000-























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Fog lamps, chassis number 190000-






















- Reinstall the detached components in reverse order.





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars










Applies to flexi-fuel cars


















- Repeat the method steps for the other side.





- Download the software (application) for the accessory's function following the service information in VIDA.
See VIDA or the accessories catalogue for software part number.

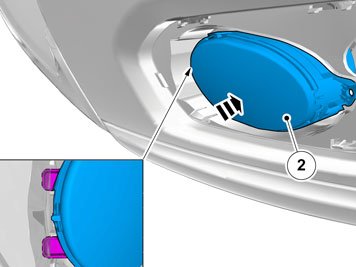

- Switch on the fog lamp and check its setting.






In the event of adjustment:

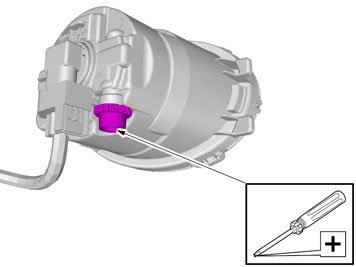

- Remove the fog lamp and adjust the adjustment screw.





- Carry out on both sides.





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars
- Reinstall the detached components in reverse order.

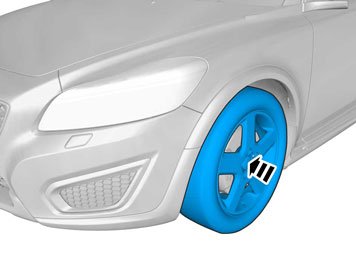

- Tightening torque:
- Step 1: Wheel to wheel hub, 20 Nm
- Step 2: Wheel to wheel hub, 110 Nm
