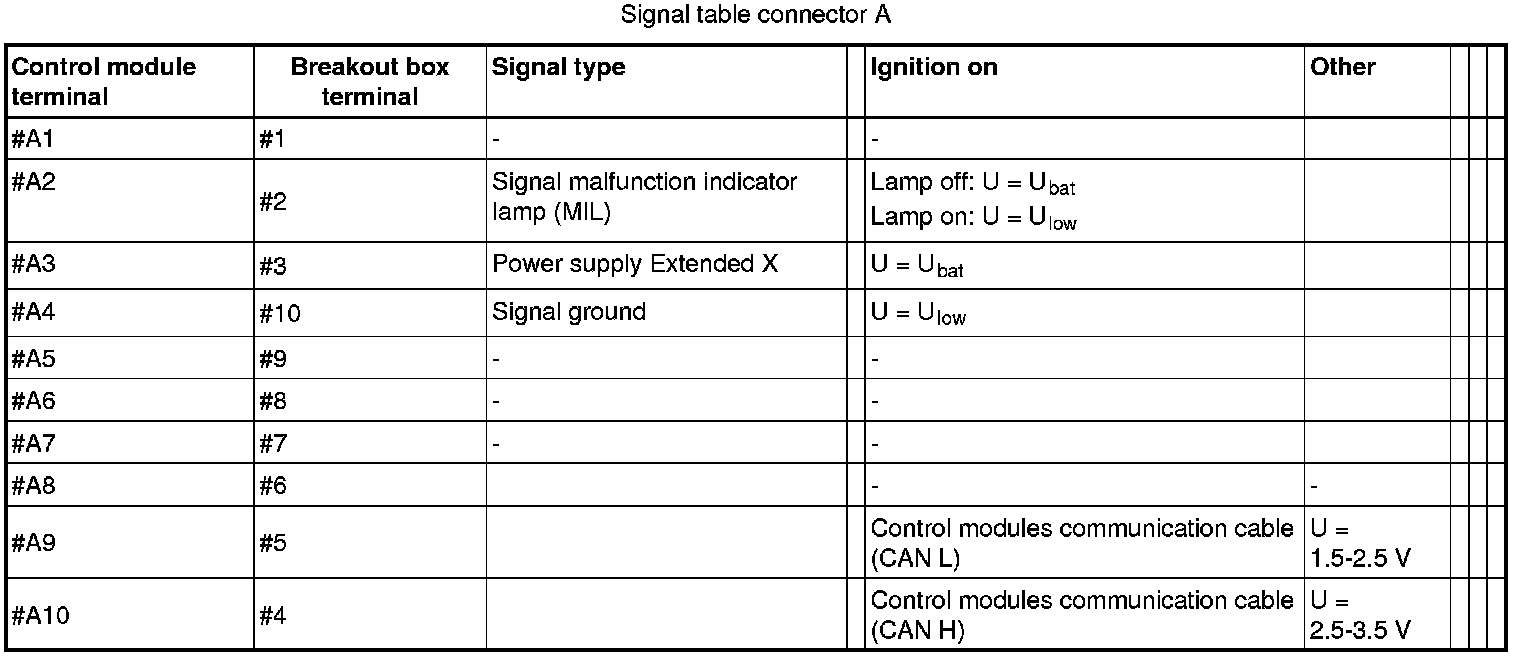

Signal Specification, Driver Information Module (DIM)

Signal specification

General

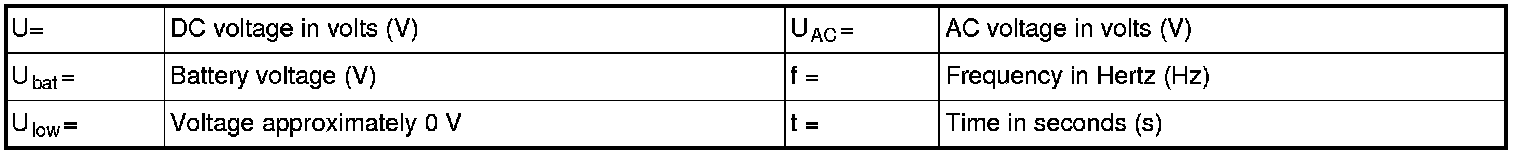

All values contained below are between the relevant terminal and signal ground, unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.
