Instruments - DIM/ICM Backlighting Flickers
TIE - Technical JournalTitle Flickering light in DIM and/or ICM display
Ref No US20039.3.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3723 Func Desc electrical distribution box; electric dist
Status Released
Status Date 2010-12-06
Issue Date 2010-12-02
Reference
Attachment
Vehicle Type
CSC
DTC
Text

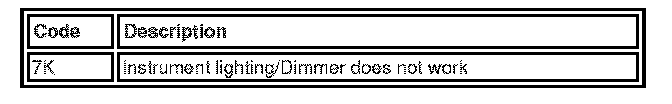

CSC = Customer Symptom Code
If using a printed copy of this document, always check for the latest online version.
DESCRIPTION:
The customer may report flickering backlighting in the DIM (Driver information module) and/or ICM (Infotainment Control Module) displays.
The symptom is only visible when it is dark outside and rheostat is in the lowest position.
PRODUCT MODIFICATION:
The solution was introduced in production at structure week 200925
SERVICE:
Please perform a CEM (Central Electronics Module) upgrade. Part number: 30667202
VOLVO STANDARD TIME GUIDE OPERATION NUMBER
