Signal Description, Climate Control Module (CCM)

Signal description

General

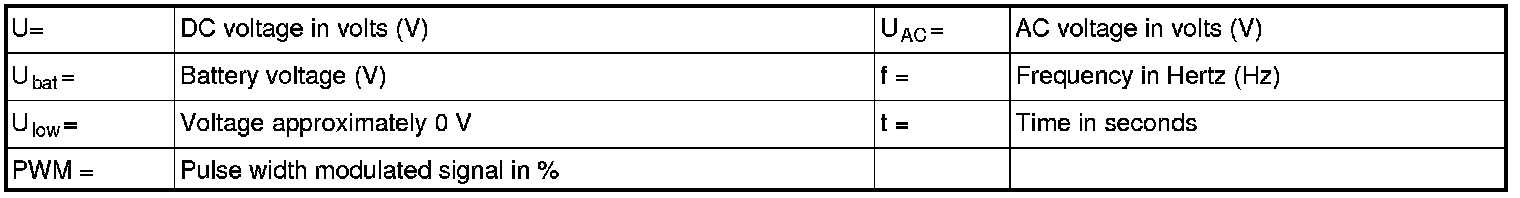

All the values given below are between the terminals stated in column 1 and terminal #A16 in column 2 (signal ground). This applies unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check the ground connections before starting to measure.

For further information about:
- connection of breakout box, see "Connecting breakout box, climate control module (CCM)"
- checking the ground point, "Checking the voltage/ground connection, climate control module (CCM)".
There may be several connections and connectors between the control module and components. See the wiring diagram for further information about these.

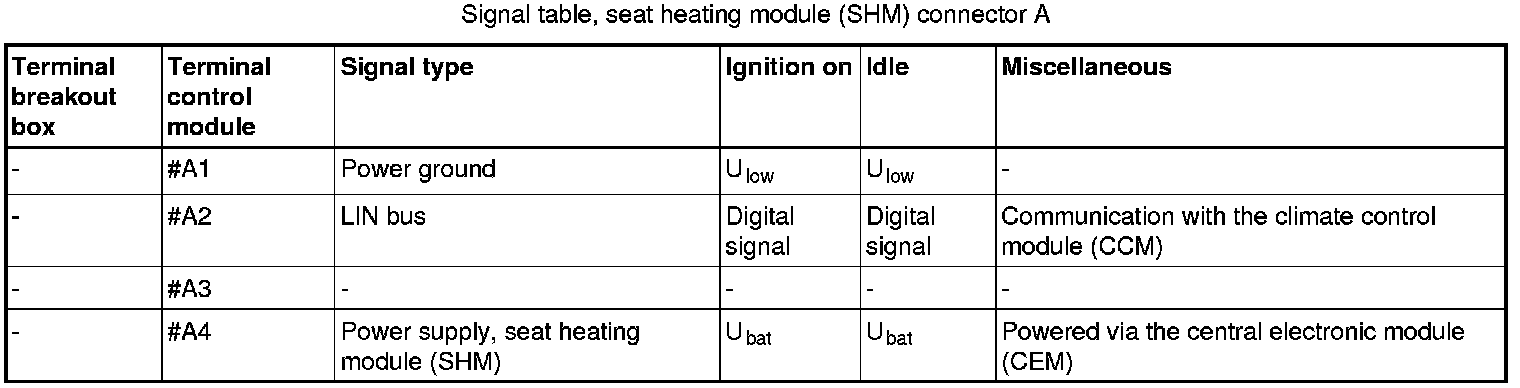

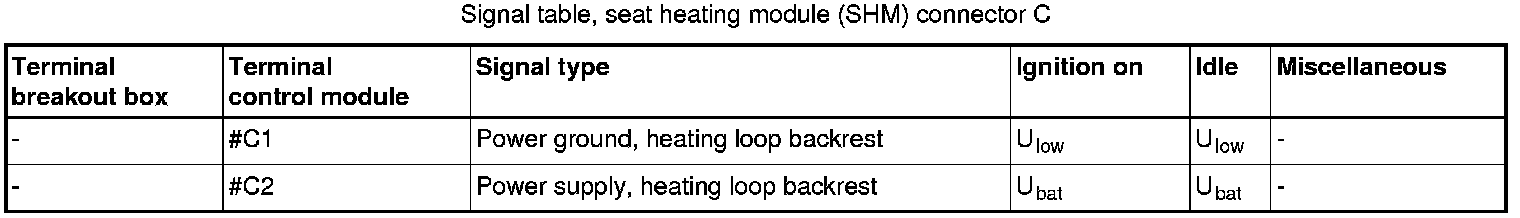

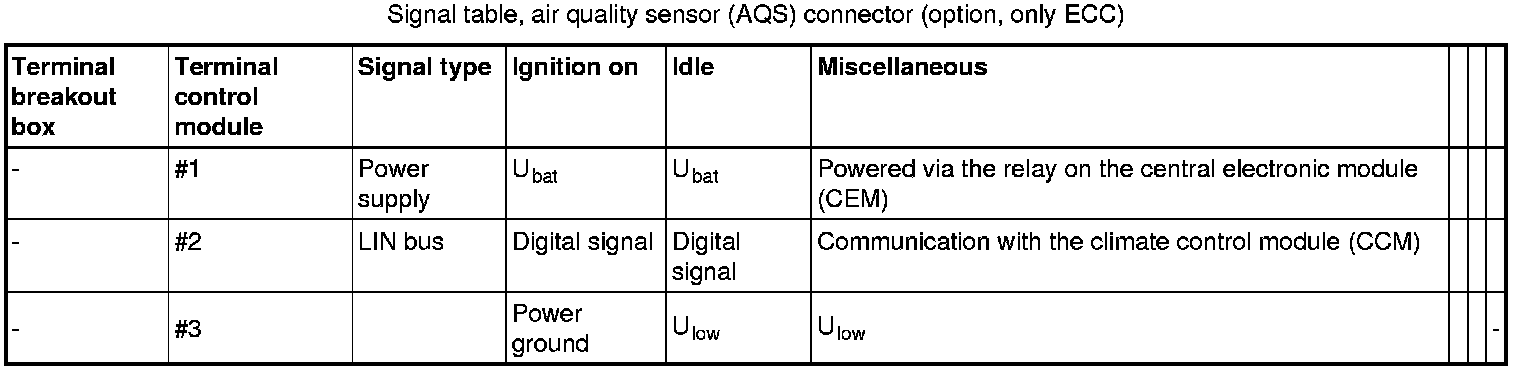

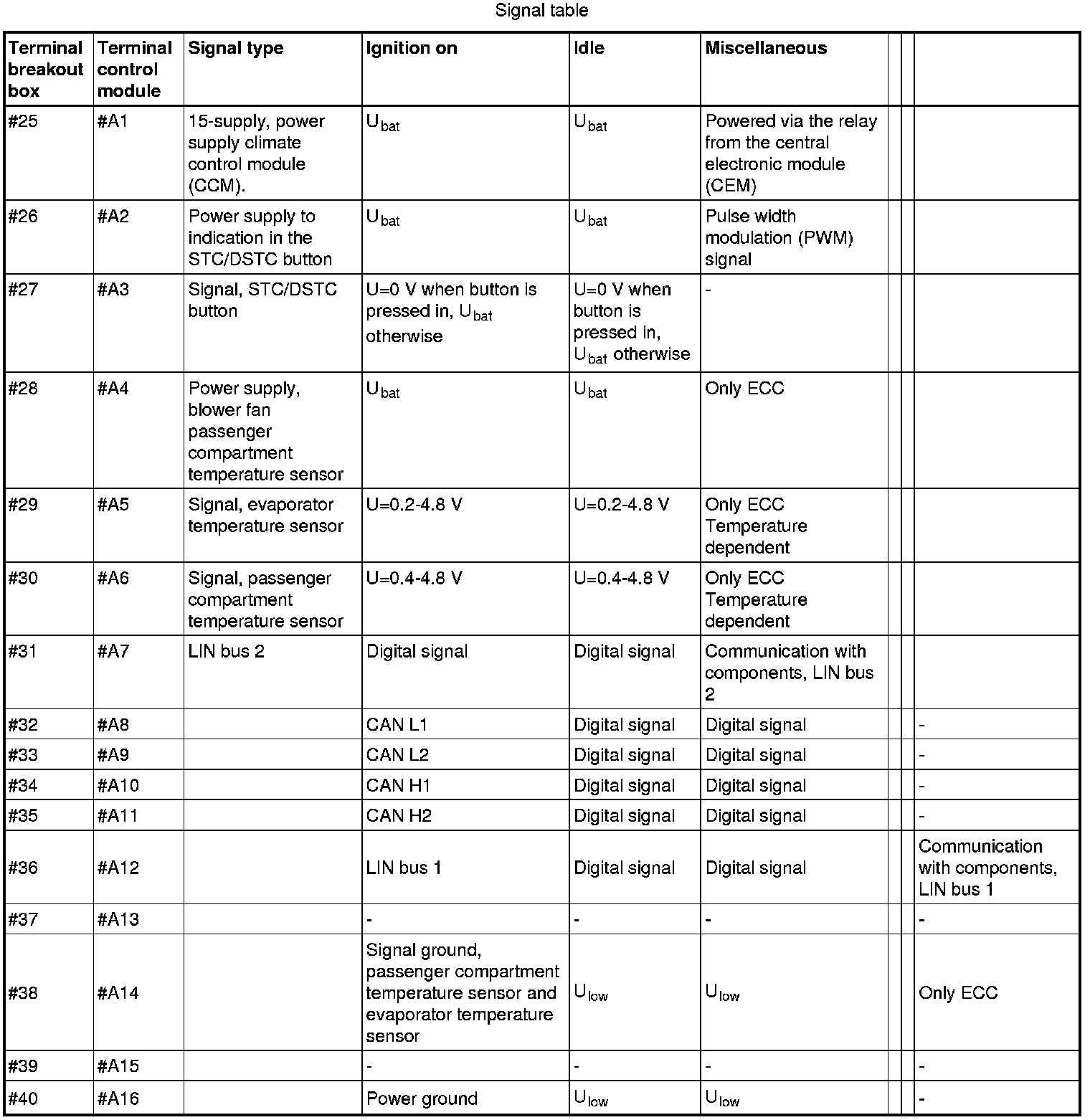

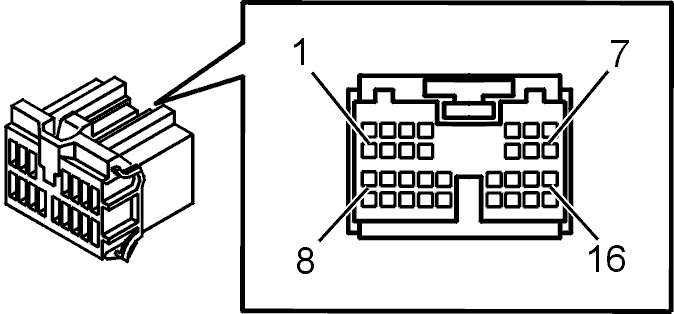

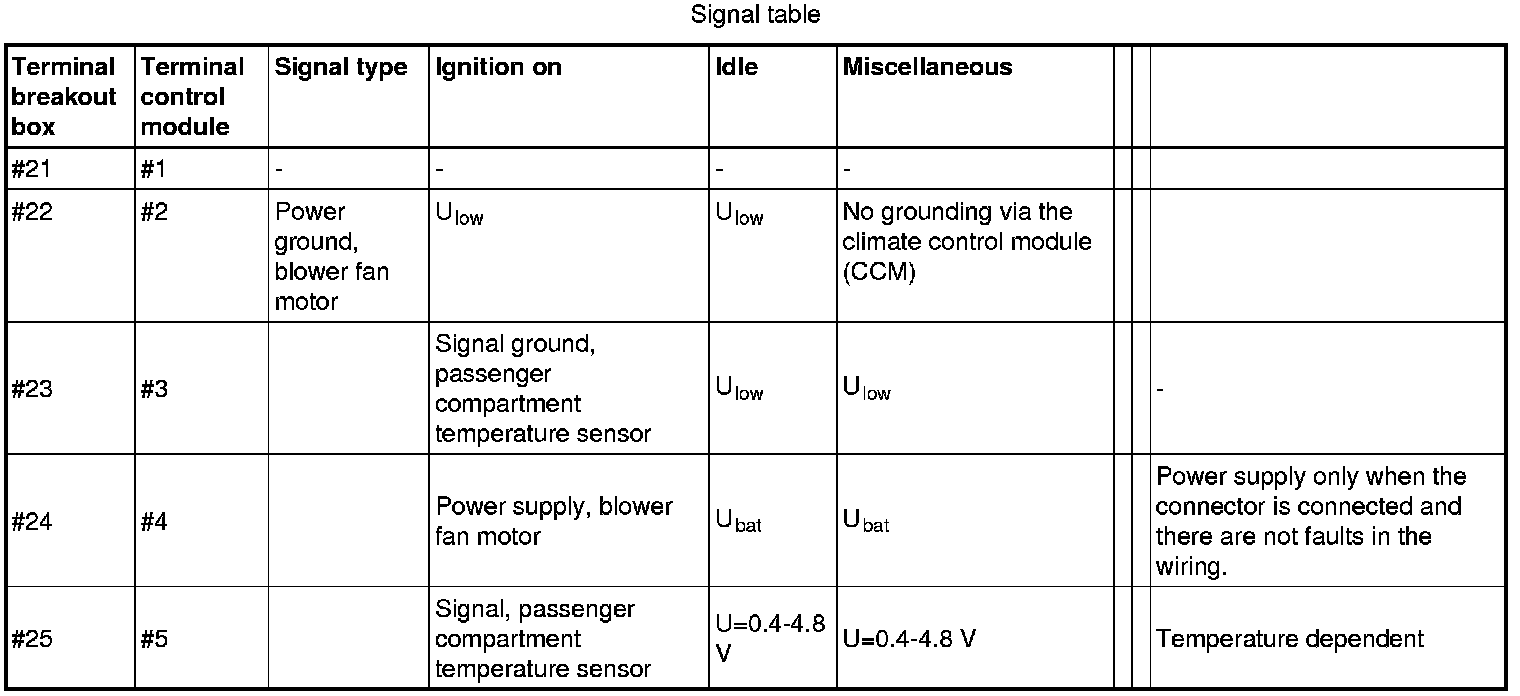

Connector, climate control module (CCM)

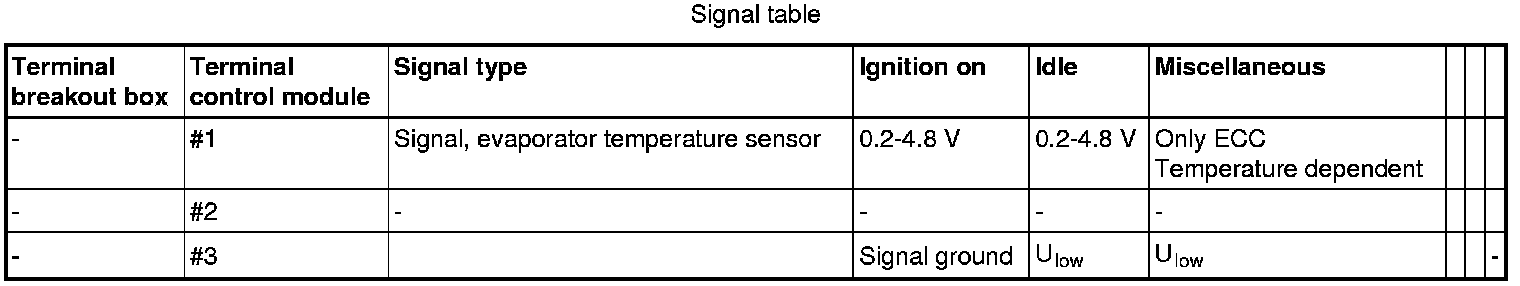

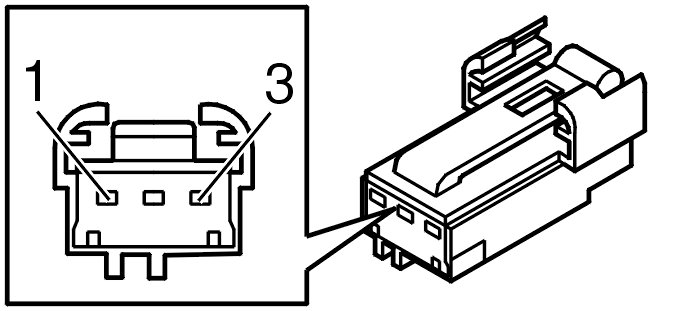

Connector, evaporator temperature sensor (Only ECC)

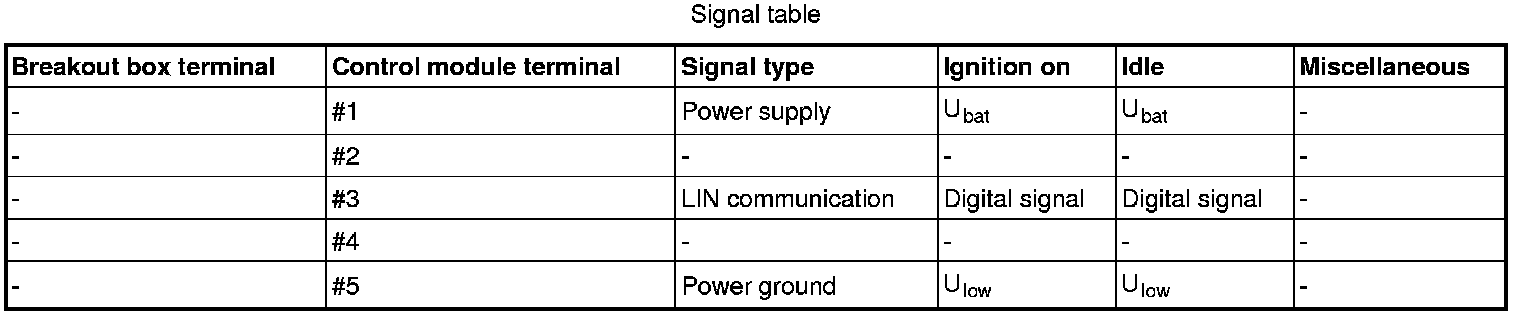

Connector damper motor module (DMM)










Connector passenger compartment temperature sensor (only ECC)















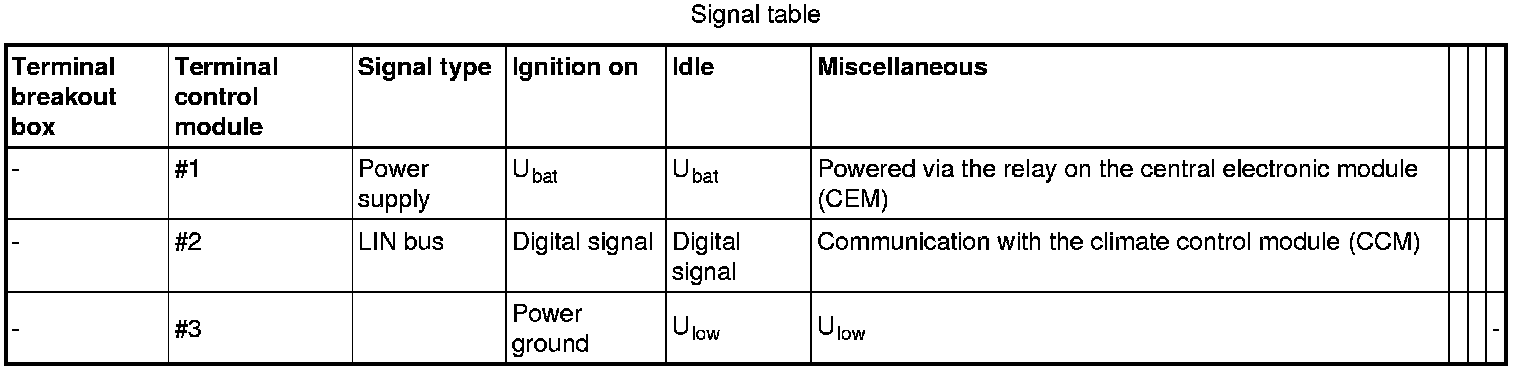

Connector switch tunnel console
