Muffler, Front

Muffler, front

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

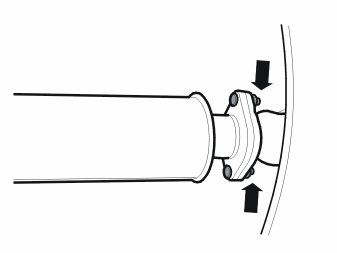

Remove the exhaust pipe between the front and rear mufflers. Refer to: Muffler rear, B5254T7 Muffler, Rear.





Tightening torque, M10. Refer to: Tightening torque, B5254T7, AW55-50/51SN, B5254T7, M66 Tightening Torque.

Installation

To install, reverse the removal procedure


Note! Make sure that no exhaust leakage occurs. Refer to: Flanged joint, assembling Removal and Replacement.
