With Manual Tranmission

Engine, removal

Removal

Perform depressurizing fuel system Refer to: Fuel system pressure release, B5254T7 Fuel System Pressure Release

Drain cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B5254T7 Service and Repair

Remove the following items:

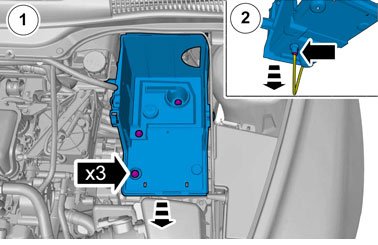

- battery
- air cleaner (ACL) housing Refer to: Air cleaner housing, B5254T7 Service and Repair
- Tensioner accessory drive belt
- Bracket lower torque rod Refer to: Bracket lower torque rod, B5254T7 Bracket Lower Torque Rod
- Front subframe
- the catalytic converter Refer to: Catalytic converter, B5254T7 Service and Repair
- Drive shaft right
- Driveshaft left
- right-hand side fog lamp front Refer to: Front fog lights Removal and Replacement

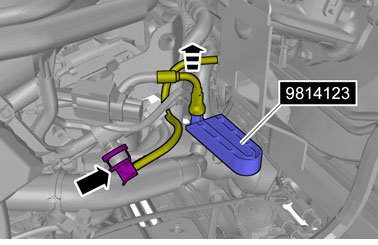

981 4123 Spanner 981 4123 Spanner

Note! Use suitable paper to absorb any escaping fluid.

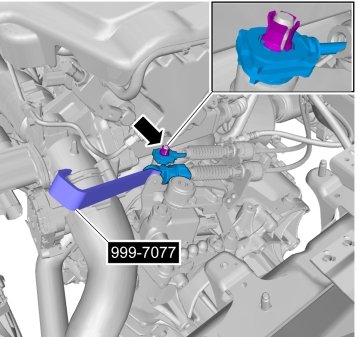

999 7077 Jimmy bar 999 7077 Jimmy Bar

Note! Use suitable paper to absorb any escaping fluid.

Warning! Be prepared to collect escaping fluid.

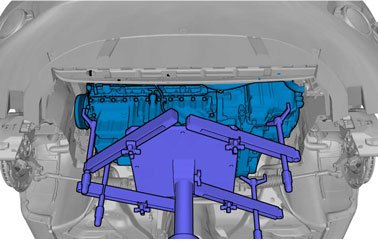

Use: Unit lift.

Remove the following items:
- Engine support insulator, right Refer to: Engine support insulator, right, B5254T7 Engine Support Insulator, Right
- Engine support insulator left Refer to: Engine support insulator left, B5254T7 Engine Support Insulator Left

Caution! Take extra care when handling the components.

Note! Make sure that no components catch.
