With Automatic Tranmission

Engine, installing

Installation





Caution! Make sure that no components catch.

Use: Unit lift.

Install the following items:
- Engine support insulator left Refer to: Engine support insulator left, B5254T7 Engine Support Insulator Left
- Engine support insulator, right Refer to: Engine support insulator, right, B5254T7 Engine Support Insulator, Right

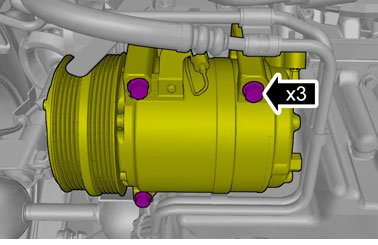

Torque: M8, 24 Nm

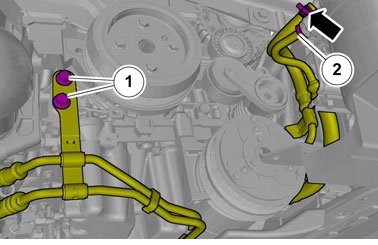

1. Torque: M10, 50 Nm

2. Torque: Pressure line to power steering pump, 30 Nm

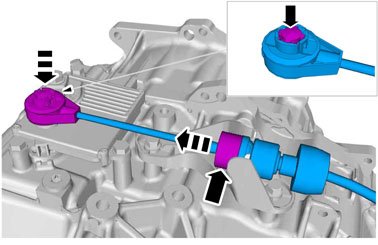

Torque: M6, 10 Nm




Torque: M6, 10 Nm
















Torque: M6, 10 Nm

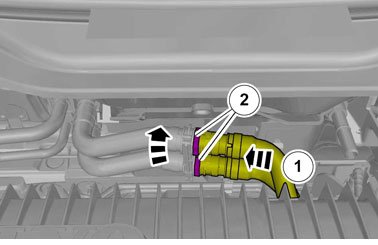

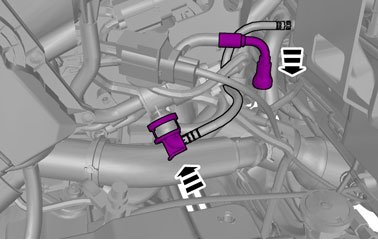

Caution! Make sure that the quick release couplings are correctly engaged.

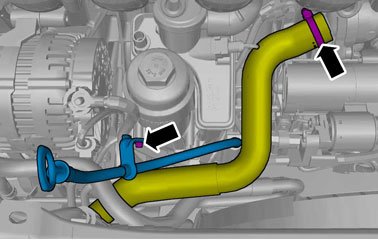

Torque: M6, 10 Nm




Torque: M6, 10 Nm

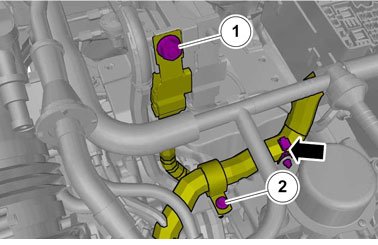

1. Torque: M8, 24 Nm

2. Torque: M6, 10 Nm

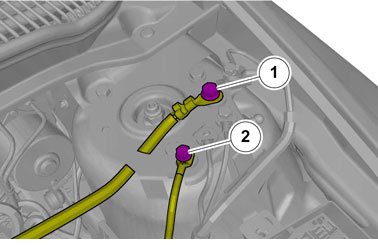

1. Torque: M8, 24 Nm

2. Torque: M6, 10 Nm

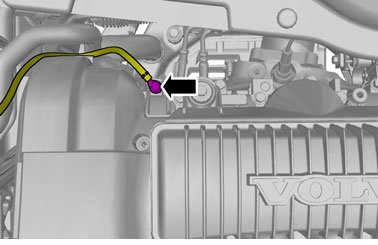

Torque: M6, 10 Nm

Assemble the following items:
- right-hand side fog lamp front Refer to: Front fog lights Removal and Replacement
- Driveshaft left
- Drive shaft right Refer to: Drive shaft right, B5254T7, AW55-50/51SN, B5254T7, M66 Service and Repair
- the catalytic converter Refer to: Catalytic converter, B5254T7 Service and Repair
- Front subframe
- Bracket lower torque rod Refer to: Bracket lower torque rod, B5254T7 Bracket Lower Torque Rod
- Tensioner accessory drive belt Refer to: Accessory Drive Belt Tensioner, B5254T7 Service and Repair
- air cleaner (ACL) housing Refer to: Air cleaner housing, B5254T7 Service and Repair
- battery Refer to: Battery Removal and Replacement

Fill cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B5254T7 Service and Repair

Perform oil level power steering, check Refer to: Oil level, power steering, checking, B5254T7 Oil Level, Power Steering, Checking

Top up the engine oil Refer to: Engine Oil, B5254T7 Service and Repair
