Crankshaft Axial Play

Operation number: 21685-2

Crankshaft axial play

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel. Refer to: Wheels Service and Repair.

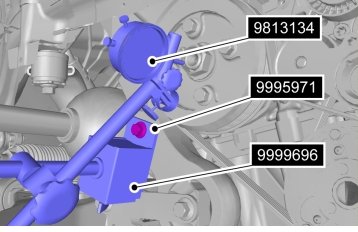

981 3134 DIAL INDICATOR 981 3134 Dial Indicator
999 9696 MAGNETIC BASE 999 9696 Magnetic Base
999 5971 PLATE 999 5971 Plate
Torque: M10, 50 Nm

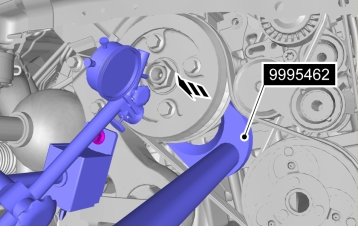

999 5462 Jimmy tool 999 5462 Jimmy Tool

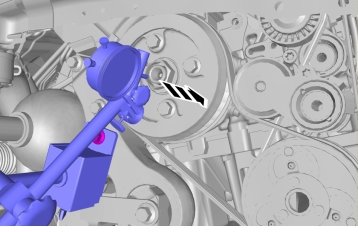

Zero the dial indicator.





Maximum permitted play: 0.25 mm.

Installation

To install, reverse the removal procedure
