With Automatic Transmission

Crankshaft seal, rear






Removal

Remove drive flange plate Refer to: Carrier plate, B5254T7, AW55-50/51SN Service and Repair





Caution! Take extra care not to damage the mating faces.

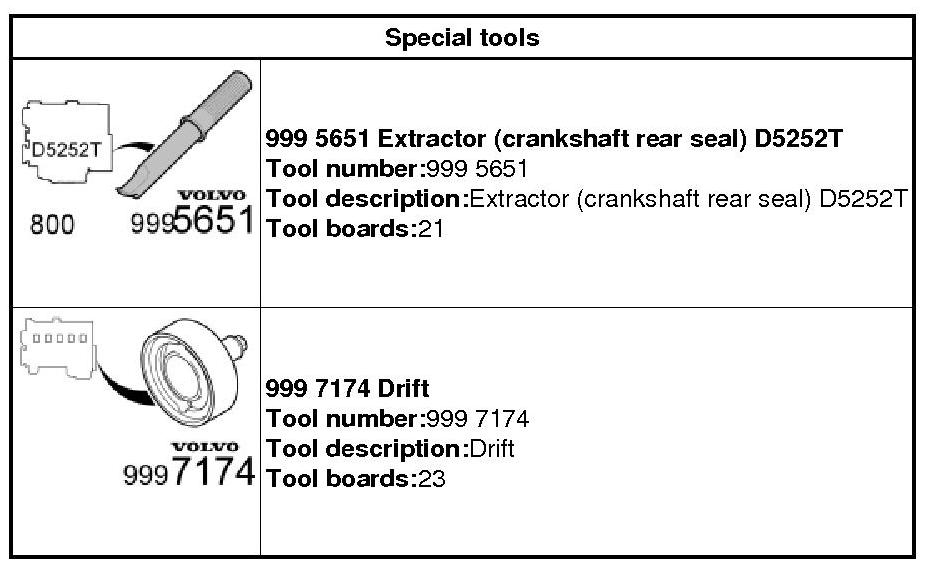

999 5651 Extractor 999 5651 Extractor

Installation





Caution! Make sure that the mating faces are clean and free of foreign material.

999 7174 Drift 999 7174 Drift

Install carrier plate Refer to: Carrier plate, B5254T7, AW55-50/51SN Service and Repair
