Home >> Volvo >> 2012 >> C30 R Design L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Intake Manifold >> Specifications

Intake Manifold: Specifications

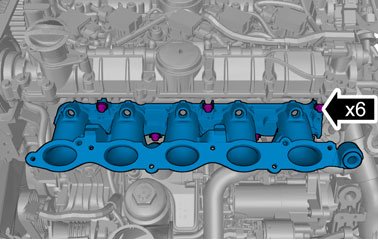

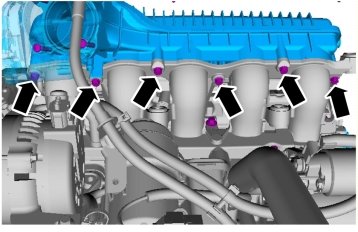

Intake Manifold Fasteners





M6 10 Nm





M7 19 Nm










M7 17 Nm
