Oil Pan: Service and Repair

Oil pan

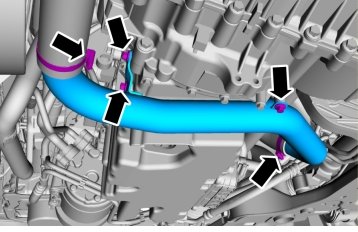

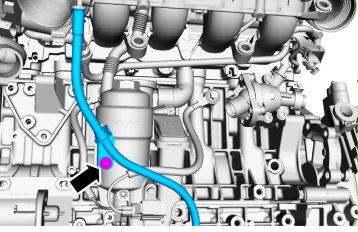

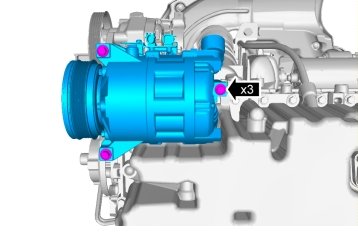

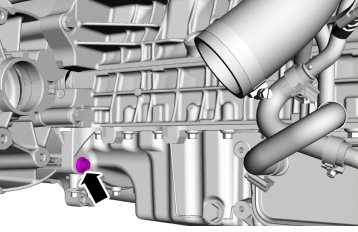

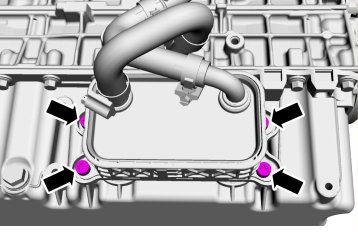

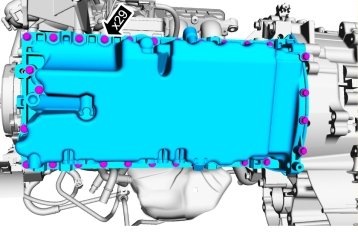

Removal

Remove the auxiliaries belt Refer to: Accessory Drive Belt, B5254T7 Service and Repair





























Installation

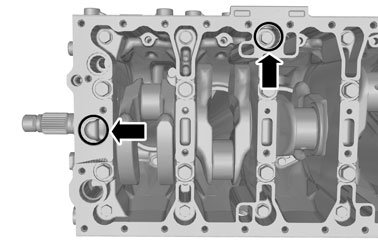

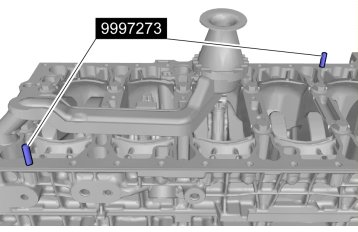

999 7273 Guide pin 999 7273 Guide Pin





Caution! Make sure that the gaskets are correctly located.





Caution! Make sure that the mating faces are clean and free of foreign material.

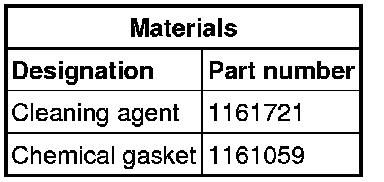

Use: Cleaning agent, 1161721

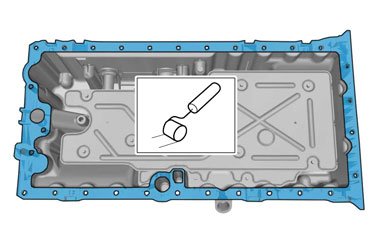

951 2767 Roller 951 2767 Roller

Use: Chemical gasket, 1161059

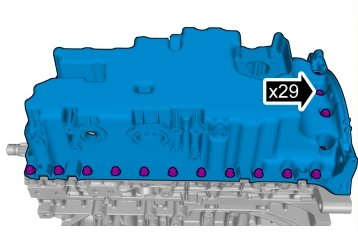

Torque: M7, 17 Nm

To install, reverse the removal procedure.
