Engine Support Insulator, Right

Engine support insulator, right

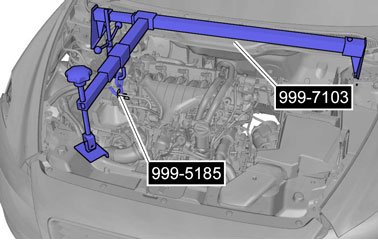

Removal

Note! Removal steps in this procedure may contain installation details.









Warning! Be prepared to collect escaping fluid.

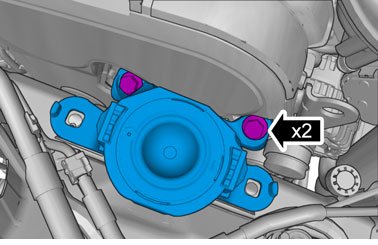

Torque: Engine pad to frame member, 90 Nm

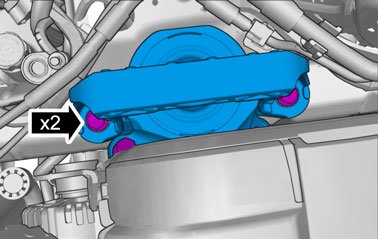

Torque: Engine pad to engine, screw, 133 Nm

Installation

To install, reverse the removal procedure.
