Cylinder Head Assembly: Specifications

Cylinder Head Bolts
Install new bolts





Stage 1 20 Nm
Stage 2 60 Nm
Stage 3 130°

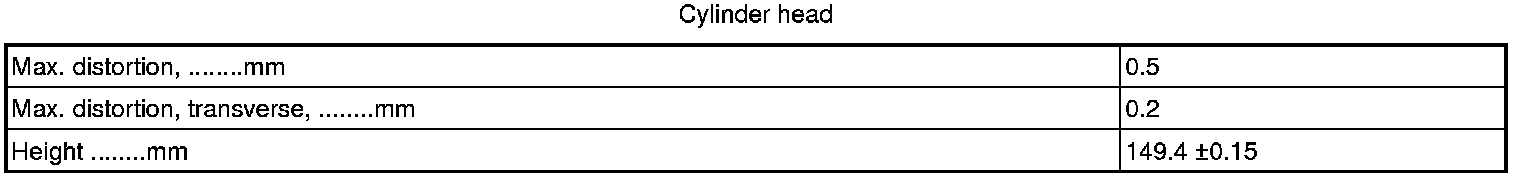

Cylinder Head Inspection





Camshaft Bearing Cap Bolts









M7 17 Nm





M6 10 Nm

Intake Manifold Fasteners Specifications

Exhaust Manifold Fasteners Specifications

VVT Center Unit Screws Specifications
