Crank Mechanism, Assembling

Crank mechanism, assembling

Installation

Caution! Make sure that the area around the component is clean and free of foreign material.

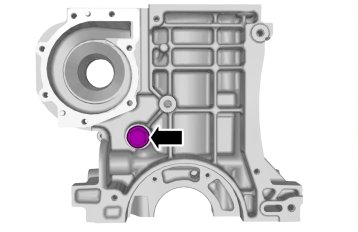

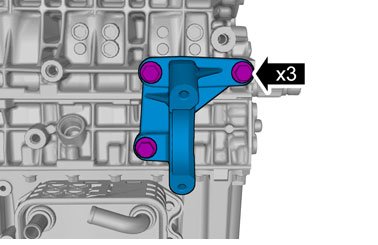

Torque: M7, 17 Nm

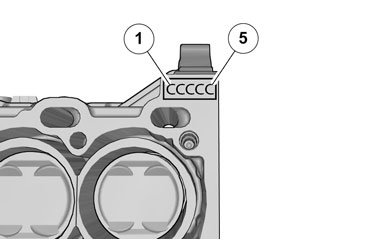

Note! Make sure that the classification of the components correspond with each other.

See information about engine Refer to: Engine, B5254T7 Engine

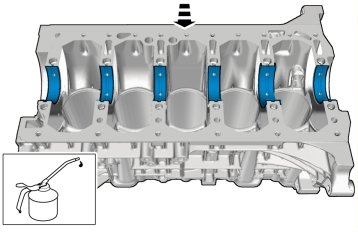

Caution! Make sure that the area around the component is clean and free of foreign material.

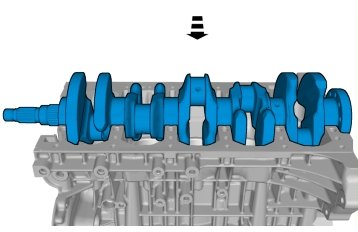

Caution! Take extra care when handling the components.

Caution! Make sure that the crankshaft is not rotated.

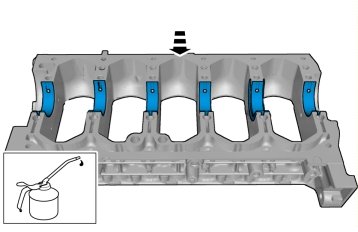

Caution! Make sure that the area around the component is clean and free of foreign material.

Note! Make sure that the component is clean, free of foreign material and lubricant.

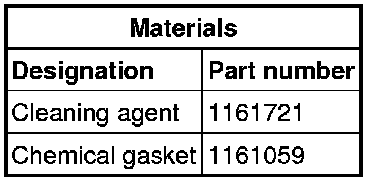

Use: Cleaning agent, 1161721

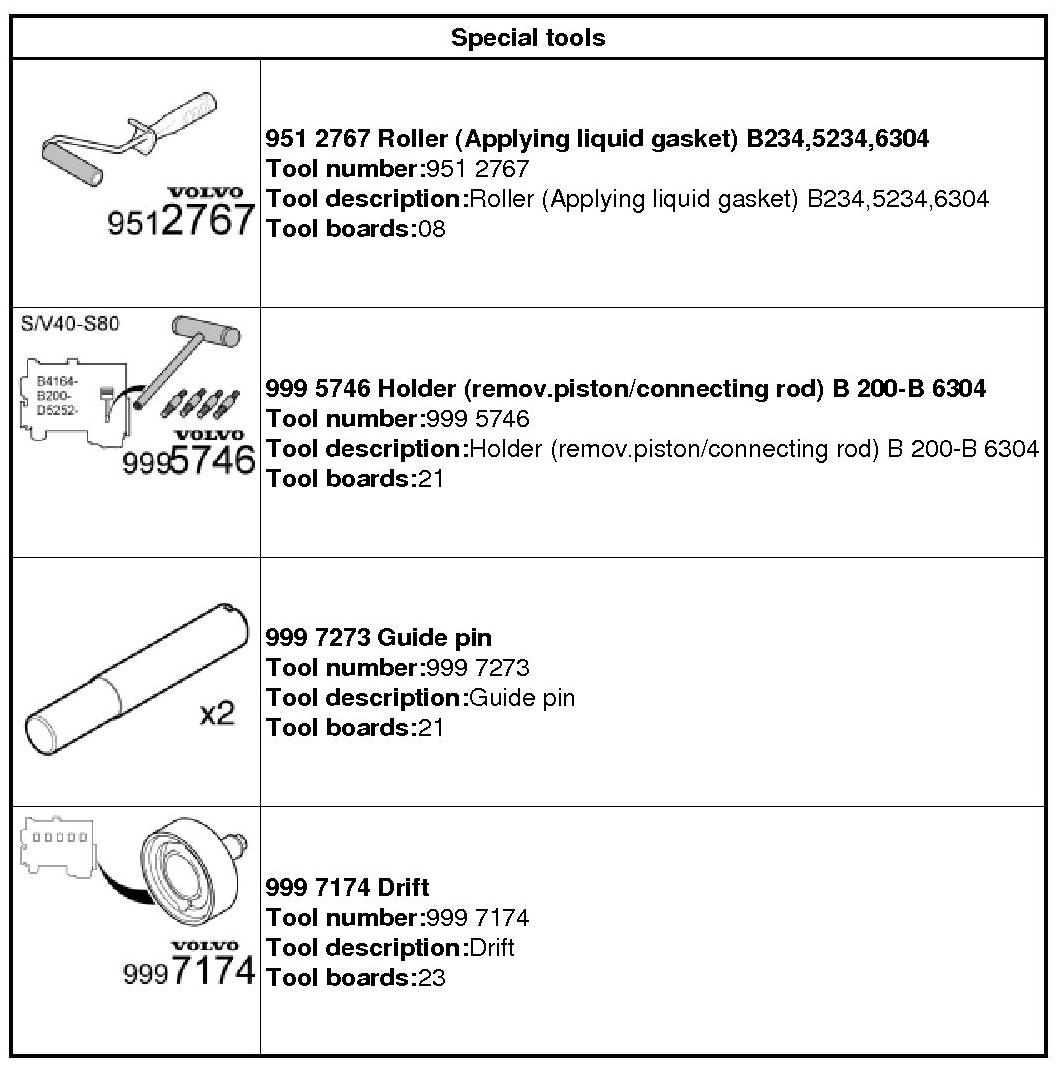

951 2767 Roller 951 2767 Roller

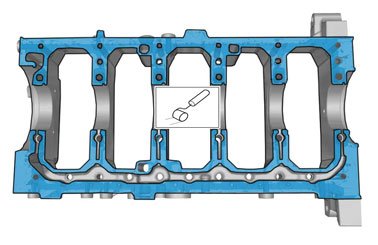

Use: Chemical gasket, 1161059

Torque: Intermediate section for engine block step 1 , 20 Nm

Torque: Intermediate section for engine block step 2 , 45 Nm

Torque: Intermediate section for engine block step 3, 24 Nm

Torque: Intermediate section for engine block step 4, 17 Nm

Torque: Intermediate section for engine block step 5 , 90 degree

Note! Make sure that the classification of the components correspond with each other.

See information about engine Refer to: Engine, B5254T7 Engine

See information about engine Refer to: Engine, B5254T7 Engine
Use: Piston ring pliers.

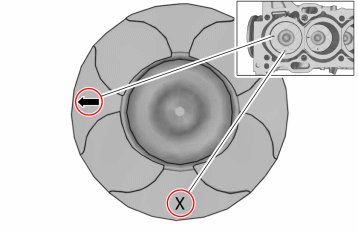

Note! Make sure that the classification of the components correspond with each other.

Use: Piston ring compressor.

999 5746 Holder 999 5746 Holder

Note! Make sure that the classification of the components correspond with each other.

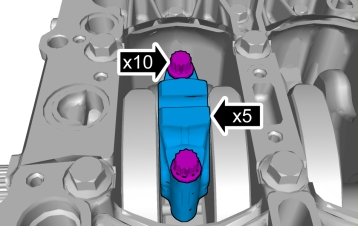

Torque: Cap connecting rod Stage 1: 30 Nm Stage 2: 90 degree

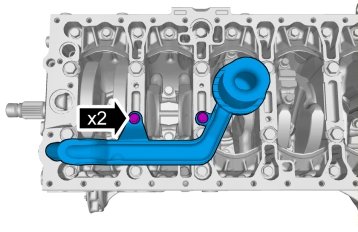

Torque: M7, 17 Nm

999 7273 Guide pin 999 7273 Guide Pin

Caution! Make sure that the gaskets are correctly located.

Note! Make sure that the component is clean, free of foreign material and lubricant.

Use: Cleaning agent, 1161721

951 2767 Roller 951 2767 Roller

Use: Chemical gasket, 1161059

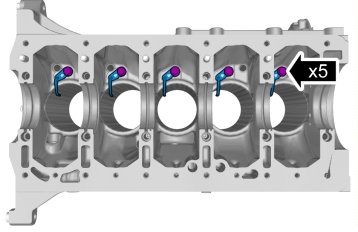

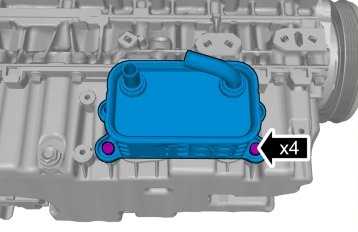

Torque: M7, 17 Nm

Torque: M10, 50 Nm

999 7174 Drift 999 7174 Drift
