Brakes - Parking Brake Lever Hard To Release
Technical JournalTITLE:
Handbrake lever, difficult to release
CAR MARKET:
United States and Canada
ISSUING DEPARTMENT:
Technical Service
REF NO:
TJ 19627
ISSUE DATE:
YEAR
2013
MONTH
04
DAY
03
PARTNER:
3 US 7510 Volvo Cars North America
FUNC DESC:
Handbrake lever
FUNC GROUP:
5511
"Fixed Right - First Time"
Attachment

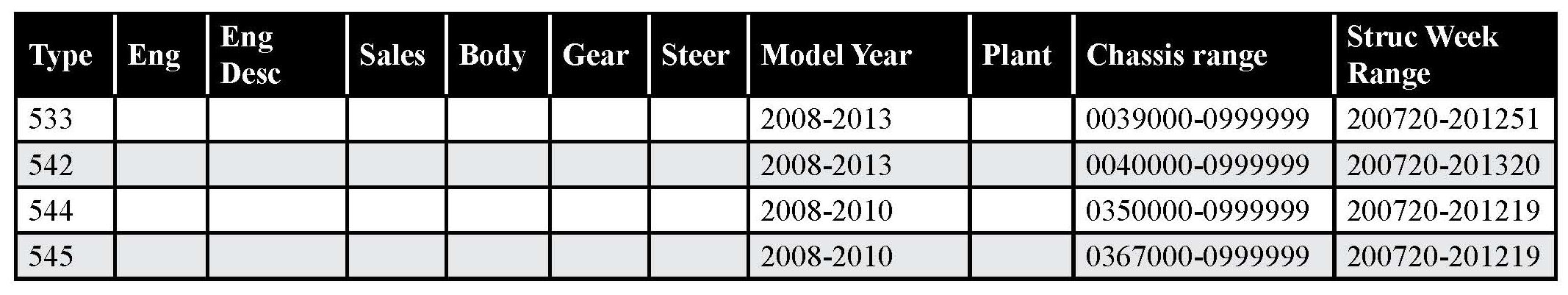

Vehicle Type

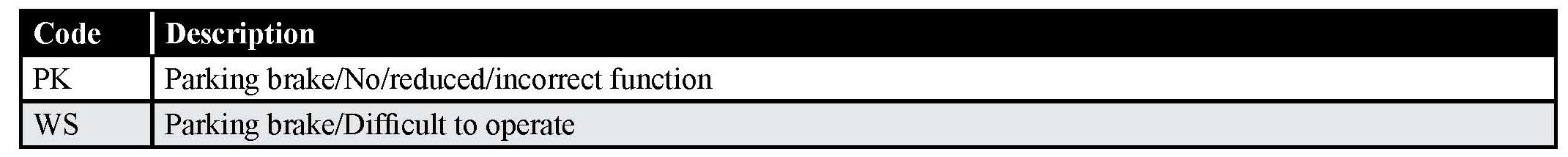

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
This document supersedes the previous one dated 3/6/2009
Changes to this document include:
* Changed Vehicle Type information - expanded model year range
If using a printed copy of this document, first check for the latest online version
DESCRIPTION:
It may happen that the release button for the hand brake lever becomes stuck and can not be released or is very difficult to release.
SERVICE:

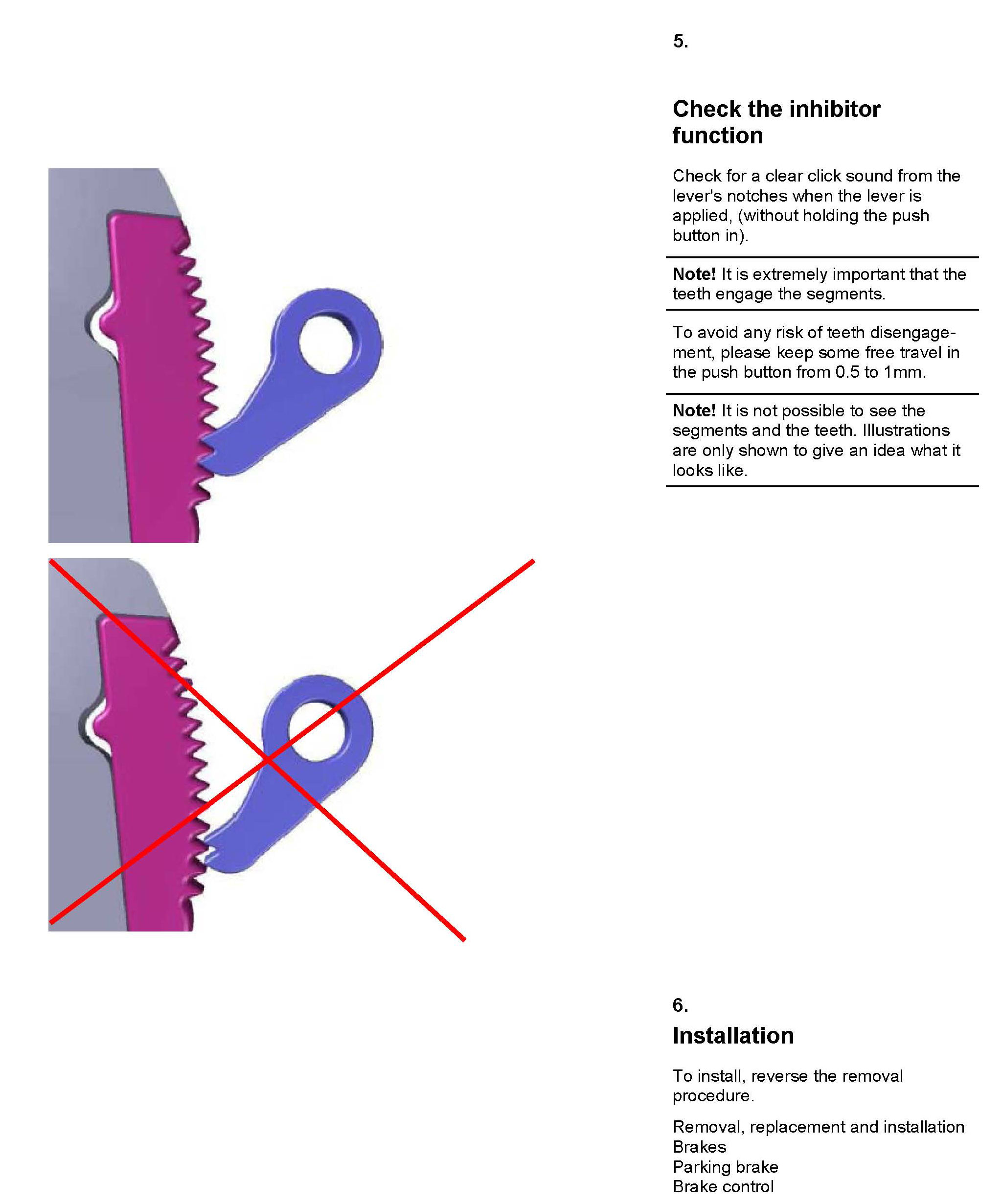

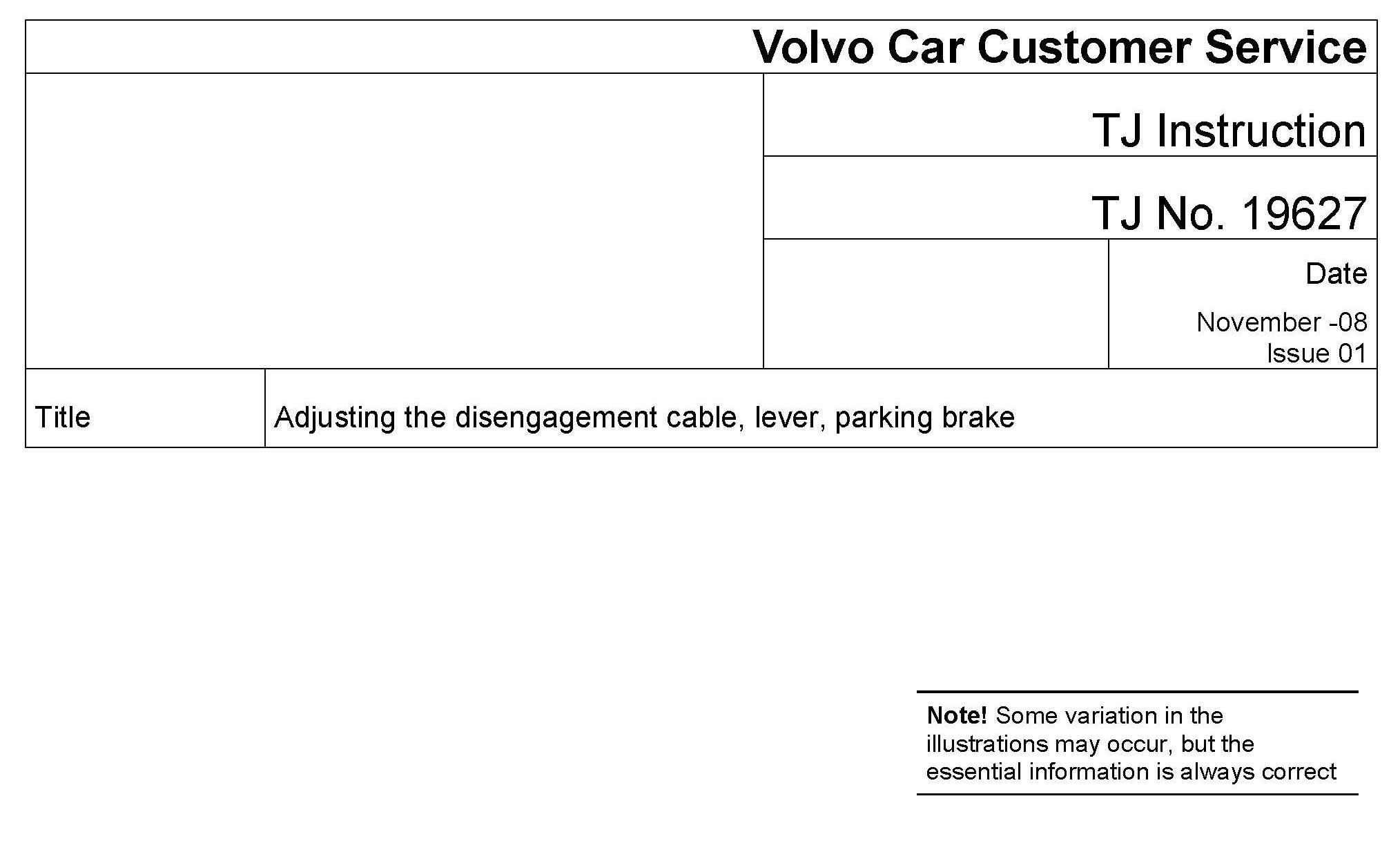

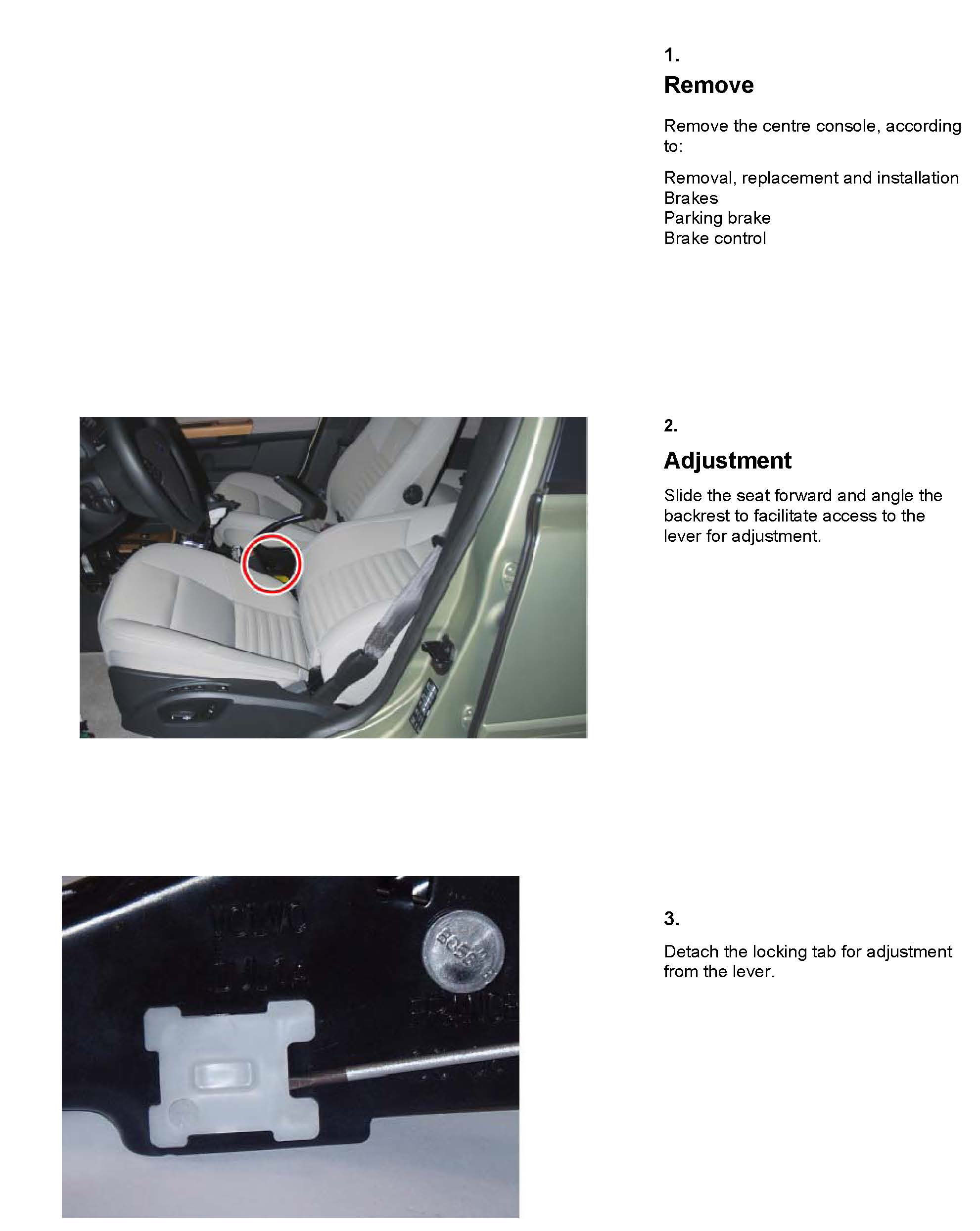

Adjust the handbrake lever following the instructions in attachment TJ19627_Instruction_13W13.pdf
Volvo Standard Times Guide (VSTG) OPERATION NUMBER:

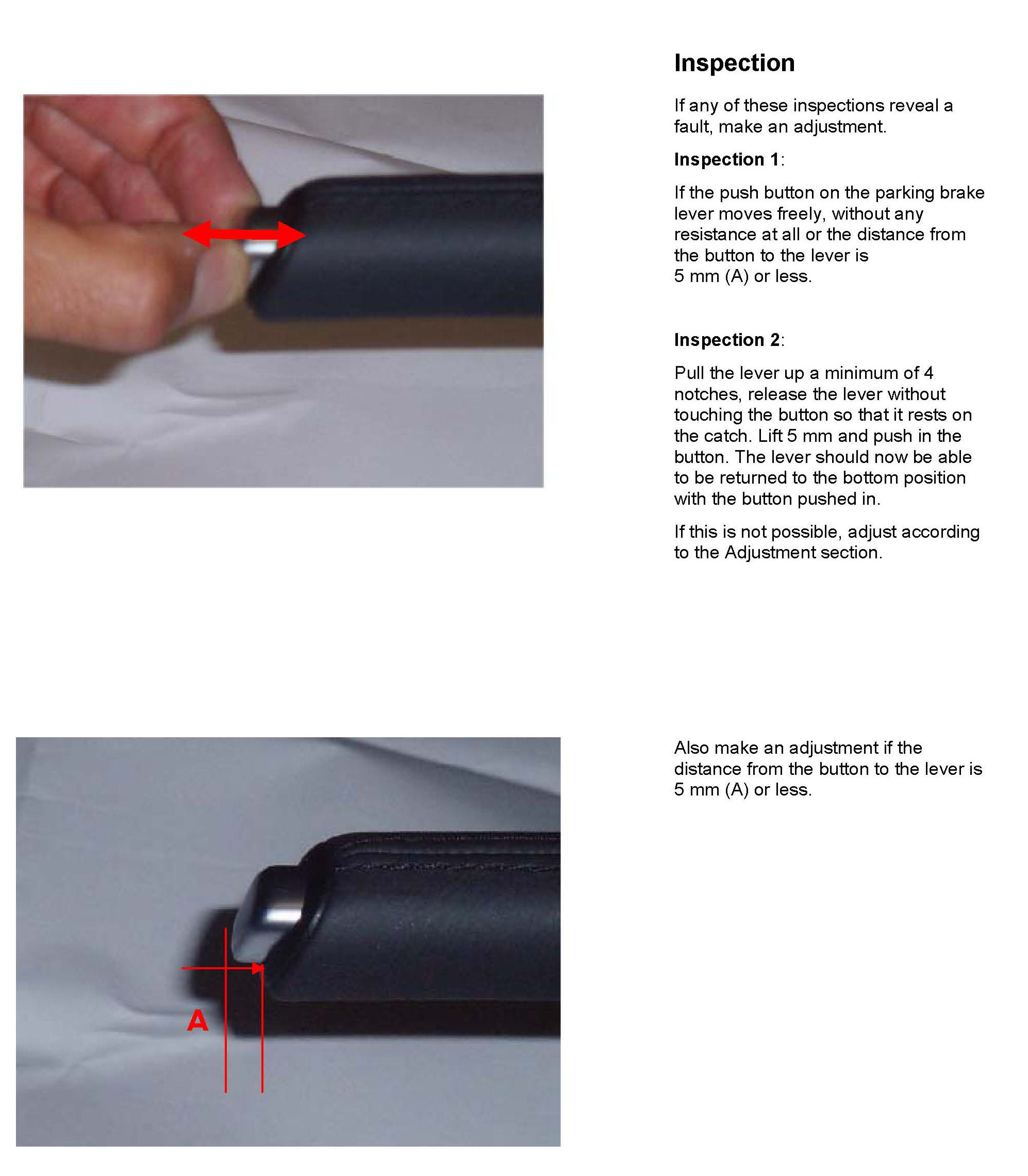

99400-2 Hand brake lever check acc to TJ19627 0.1hrs

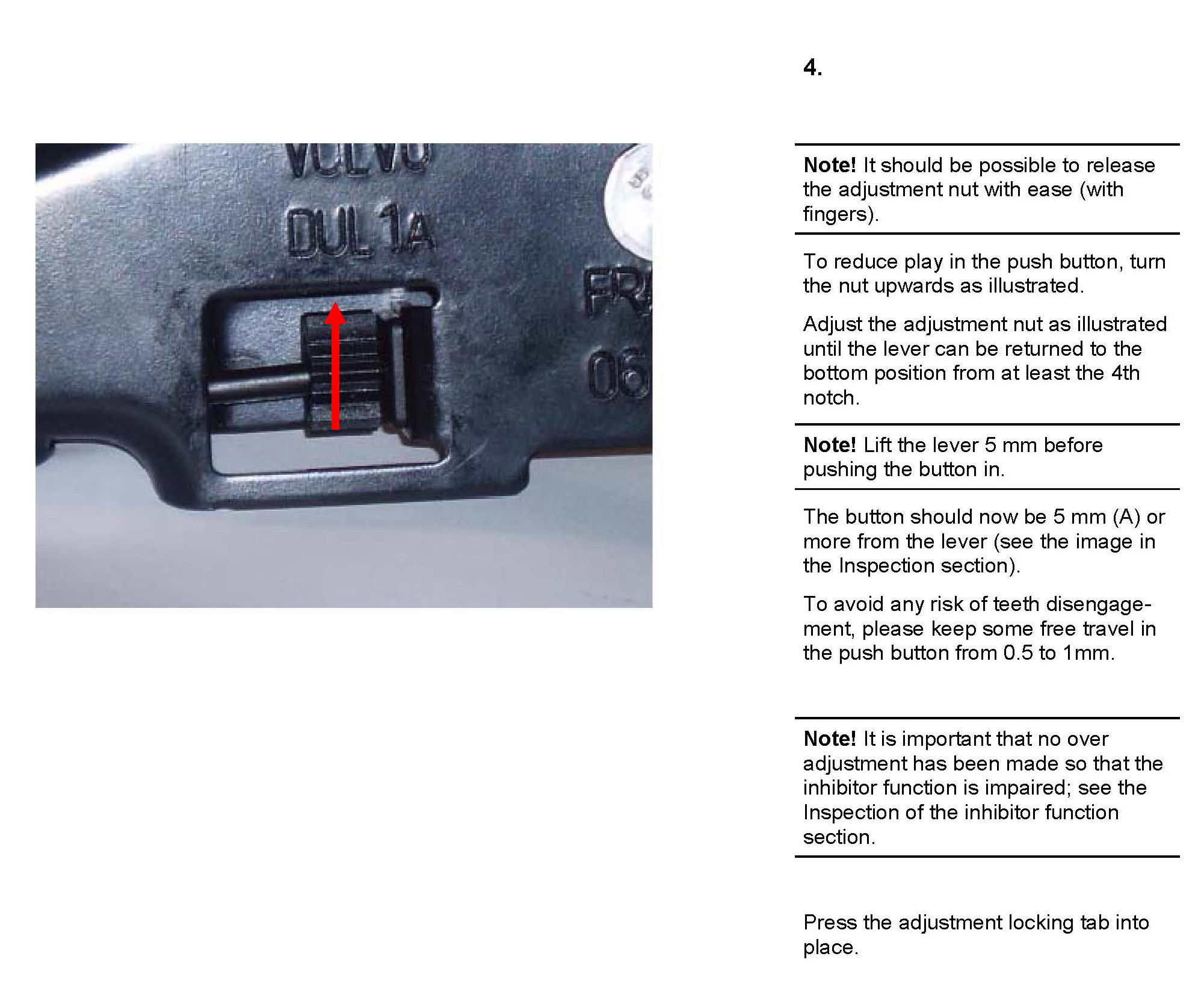

99600-2 Handbrake adjust acc to TJ19627 0.9hrs

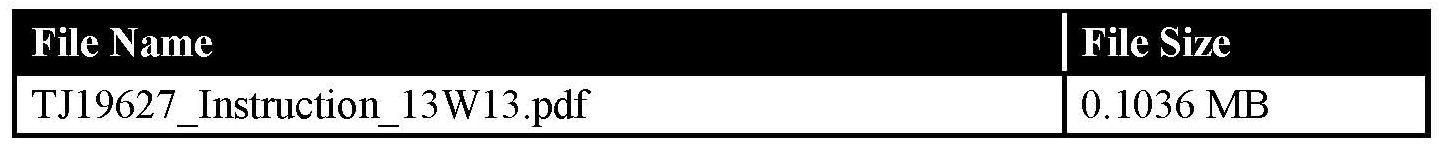

To view TJ attachment continue: This TJ has 1 attachment.
