Parking Brake Actuator: Service and Repair

Operation number: 55110-2

Actuator, parking brake

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the parking brake switch Refer to: Handbrake switch Service and Repair

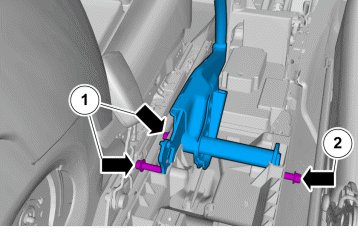

Install the following items:
1. Torque: M8, 24 Nm

2. Torque: M8, 24 Nm

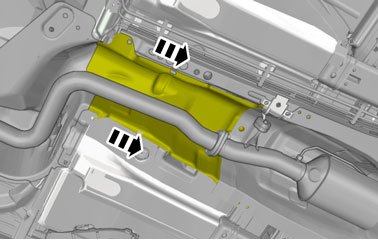

Follow instructions for lifting points body frame Refer to: Jacking points body Locations









Installation

To install, reverse the removal procedure.
