Rear Brake Flexible Hose

Rear Brake Flexible Hose

Removal

Note! Removal steps in this procedure may contain installation details.

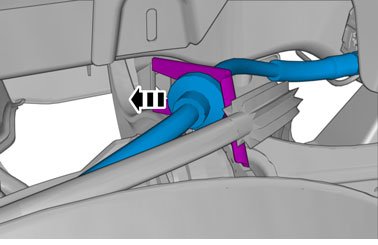

Remove the wheel Refer to: Wheels Service and Repair

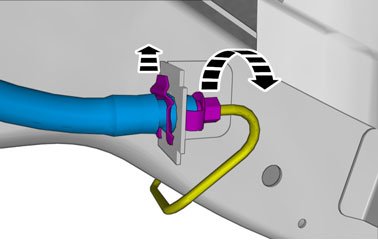

Torque: Ø6 mm diameter brake line, 14 Nm




Torque: Rear Brake Flexible Hose, 23 Nm

Installation

To install, reverse the removal procedure.

Perform bleeding air brake system Refer to: Brake system bleeding Service and Repair
