Front Brake Flexible Hose

Front Brake Flexible Hose

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work





Remove the wheel.

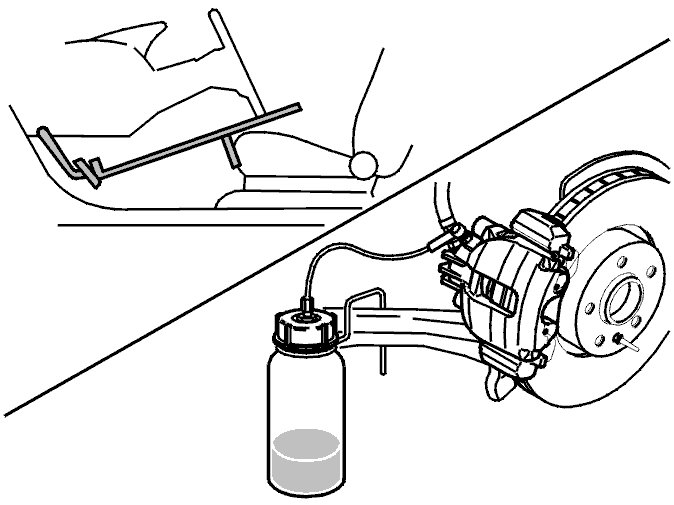

Secure the pedal in the depressed position. Use a pedal jack.
Remove the protective cap from the bleed nipple.
Install a plastic hose on the nipple.
Open the bleed nipple. Collect the brake fluid in a container.
Shut the bleed nipple.

Removal

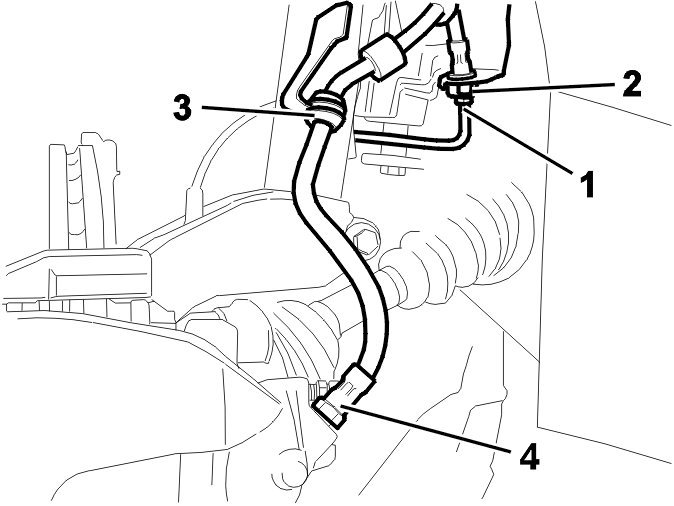

Removing the brake hose





Remove:
- the brake pipe from the brake hose (1)
- the retaining clip (2).
Pull the brake hose out of the mounting (3).
Remove the brake hose from the brake caliper (4).

Installation

Installing the brake hose

Note! For tightening torques, see: Tightening torque [1][2]Specifications.





Install:
- the brake hose (4) to the caliper. Tighten. See: Tightening torque [1][2]Specifications
- the brake hose (3) in the mounting
- the retaining clip (2).
- brake pipe in the hose (1). Tighten. See: Tightening torque [1][2]Specifications.

Note! Ensure that the brake hose is not twisted. If the brake hose is twisted, there is a risk of circuit failure.

Finishing

Remove the pedal jack.
Fill and bleed the brake system. To bleed the brake system, see: Brake system bleeding Service and Repair.

Note! Use only Volvo Genuine parts brake fluid (Volvo DOT 4+).

Check:
- the function of the brakes after bleeding
- that there is no leakage
- brake fluid level.
Depress the brake pedal a few times. Check the level of the brake fluid reservoir. Top up if necessary.
Install the wheel. See: Wheels Service and Repair.
