Mudflaps



































INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Mudflaps

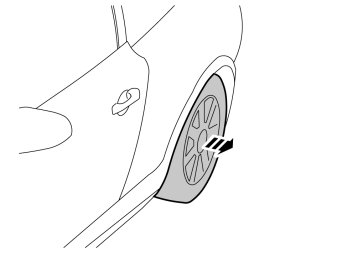

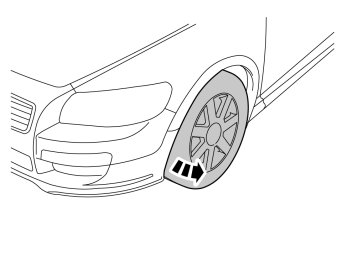

- Turn the wheel.

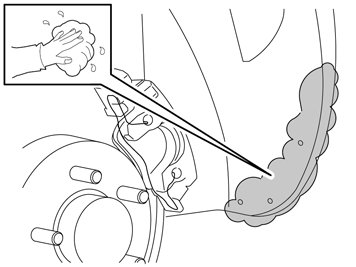

- Clean the area where the mudflap is to be positioned.



























Note! These will not be reused.

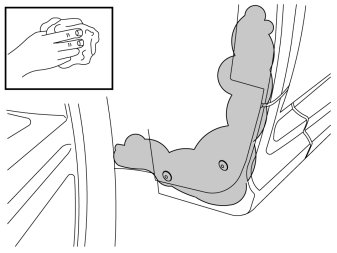

- Clean the area where the mudflap is to be positioned.

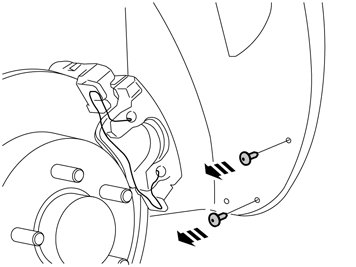

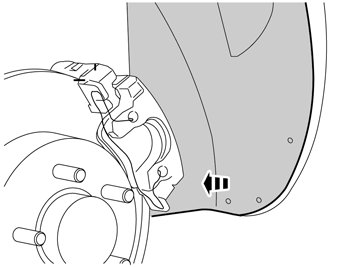

- Fold the wing liner out of the way.

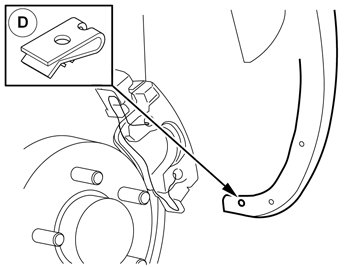

- Install the clip.

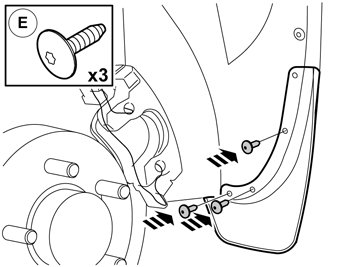

- Fold the inner wing back and install the mudflap.

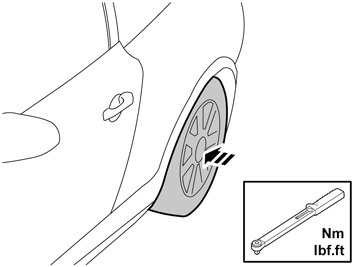

Tightening torque:
- Step 1: Wheel to wheel hub, 20 Nm.
- Step 2: Wheel to wheel hub, 110 Nm.
