Signal Specification, Power Seat Module Left (PSL)

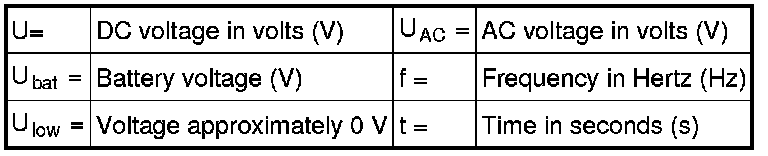

Signal specification

Breakout box connection and check of ground terminals

Note! Before taking measurements it is important to connect a breakout box and check the ground terminals.





Power seat module, left (PSL)

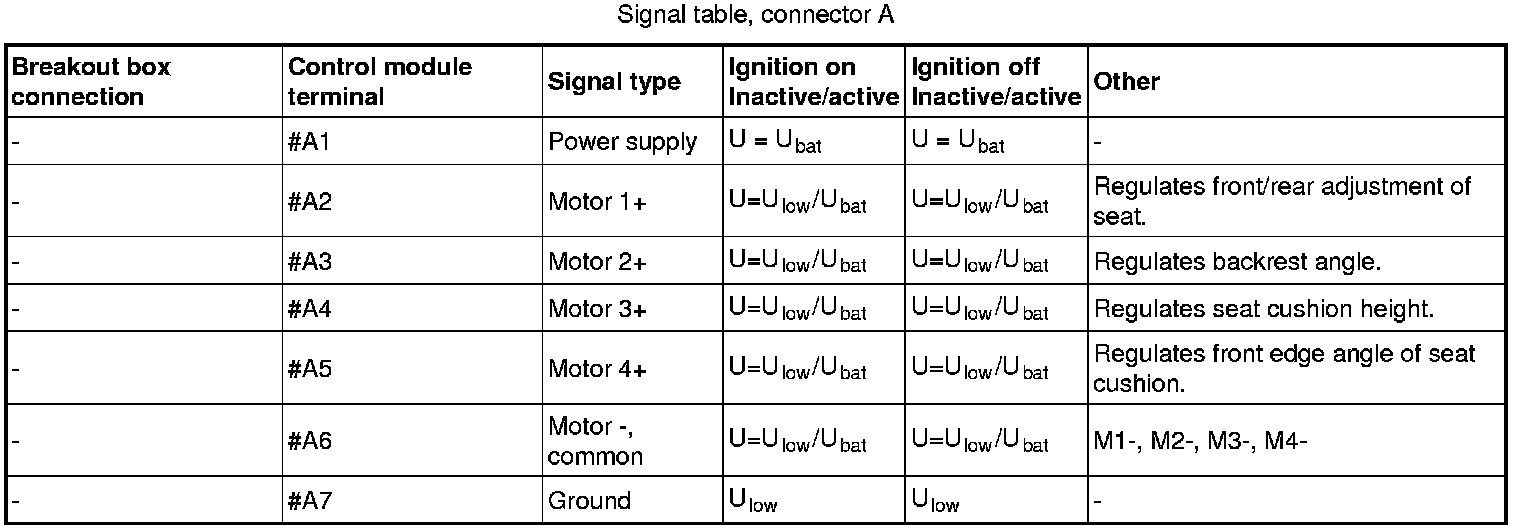

Connector A

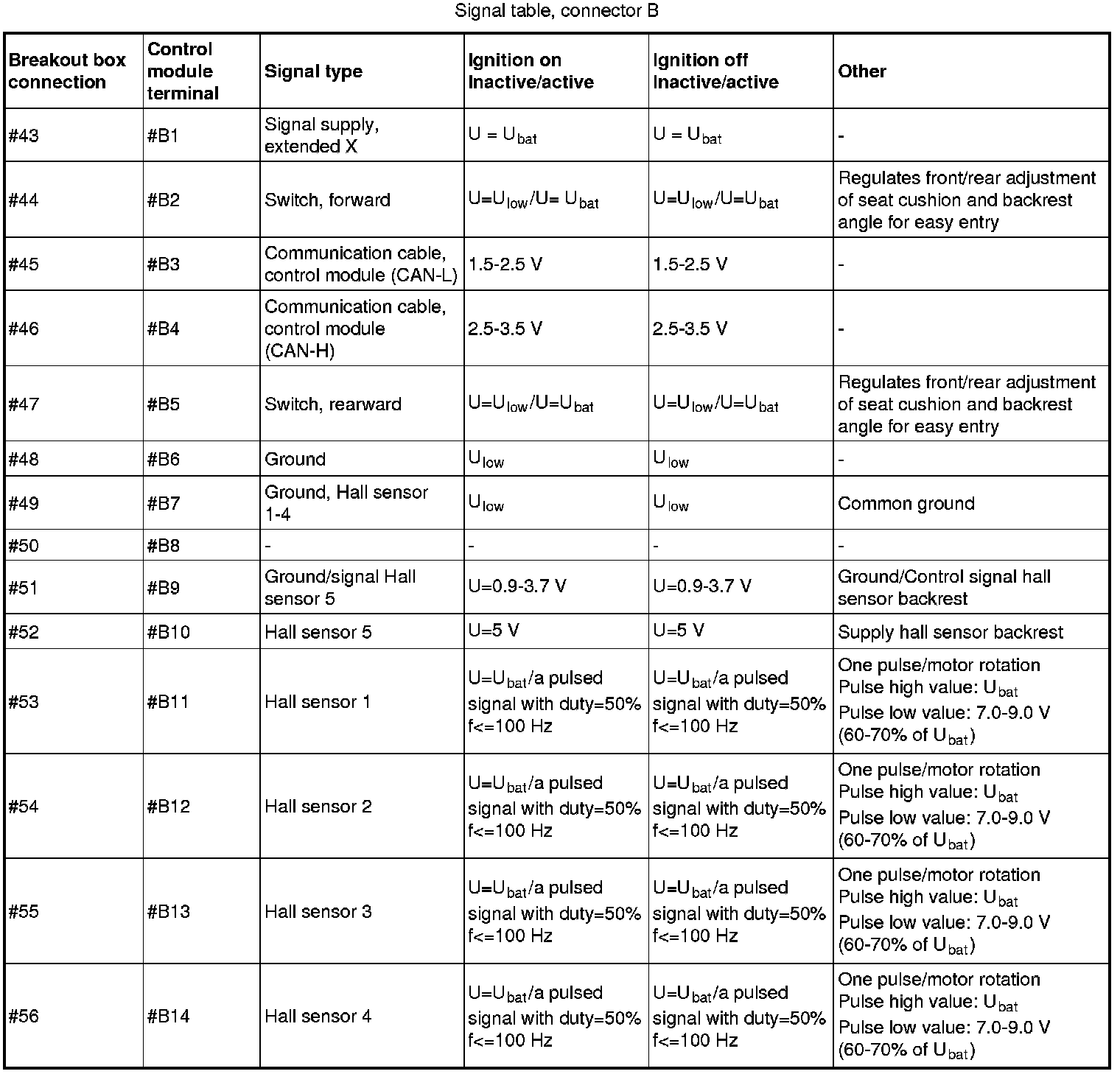

Connector B
