Lumbar Support Front Seat

Lumbar support front seat

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the lumber support





Remove:
- the front seat as described in Front seat Front Seat
- the backrest cushion upholstery. See: Front seat backrest Front Seat Backrest
- the protective pad. It is secured with 4 hidden clips.




- the 4 half moon clips. Remove the padding from the backrest.

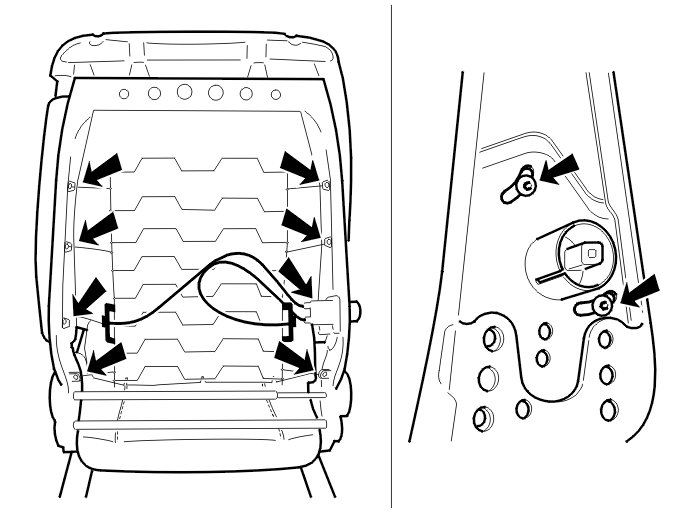

- the 2 mounting screws from the side of the backrest

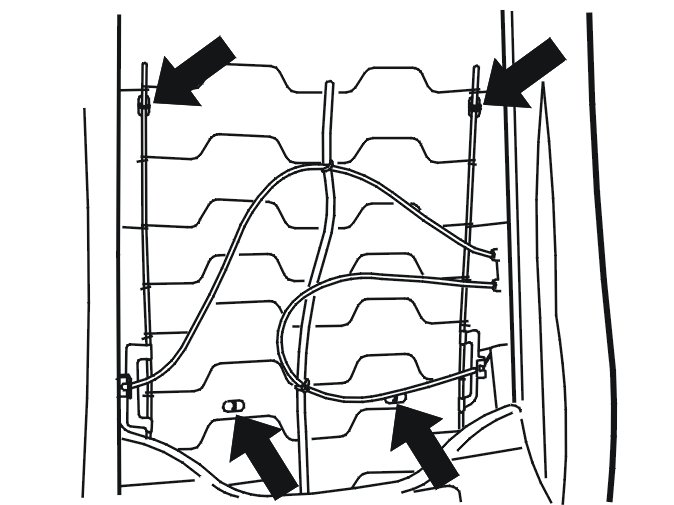

- the hooks, 3 on each side.
Detach the mechanical cables, 1 on each side.
Remove the lumbar support.

Installation

Note! For tightening torques, see: Tightening torque, B5254T7 [1][2]Body and Frame.

Installing the lumber support

Install:
- the lumbar support
- the 2 mounting screws. Tighten
- the mechanical cables, 1 on each side
- the hooks, 3 on each side
- the padding using the 4 half moon clips
- the protective pad
- the backrest cushion upholstery. See: Front seat backrest Front Seat Backrest.
Tension the lumber support.
Install the front seat. See: Front seat Front Seat.
