Tilt Mechanism Front Seat Backrest

Tilt mechanism front seat backrest

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

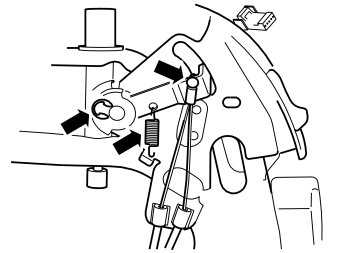

Remove:
- the backrest electric motor as described in Electric motor, backrest rake Electric Motor, Backrest Rake
- the retaining clip
- the spring

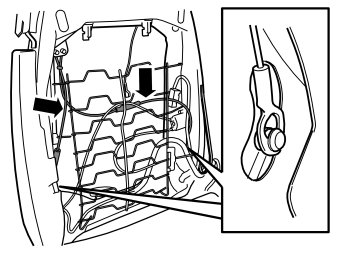

Angle out the handle and unhook the lock cable.




Follow the cables. Detach the clips and cable tie from the seat frame.
Unhook the 2 cables from the folding mechanism.

Installation

Install in the reverse order.

Note! Take care when routing the cables. Do not twist them.
