Child Seat, Protective Cushion

Child seat, Protective cushion















INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Child seat, Protective cushion

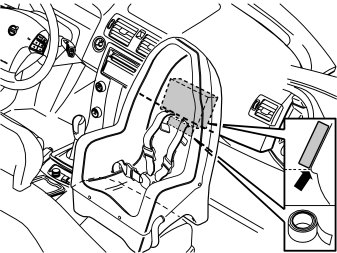

- Take the protective cushion and locate the child seat in its correct position with the protective cushion between the seat's backrest and the dashboard. The lower edge of the protective cushion must be approximately edge to edge with the lower edge of the dashboard.
- Mark out the lower edge of the protective cushion on the end face of the seat with a strip of tape.

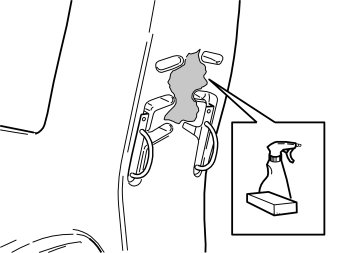

- Wash the back of the child seat for affixing the Velcro strap using a mixture of 30% washer fluid and 70% water as indicated by the marking.
- Wipe dry.

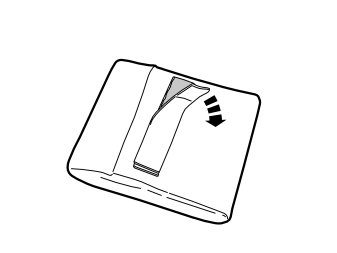

- Pull off one Velcro strap from the protective cushion.

Note! Do not pull only on the white protective tape.

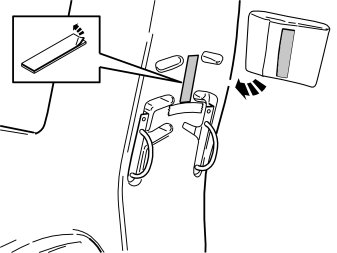

- Pull off the protective tape from the detached Velcro strap.
- Press the Velcro strap into the centre of the backrest and according to the tape marking in the lower edge.
- Press the protective cushion into the seat's backrest.
- Remove the tape marking.
