Sunroof / Moonroof Drain: Service and Repair

Drain duct sunroof

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the sunroof glass
Remove the sunroof glass. See: Glass sun roof Service and Repair.

Removal

Removing the gutter

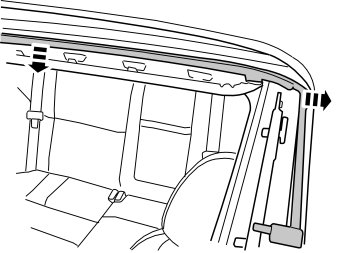

Press out the front mounting for the gutter on both sides.

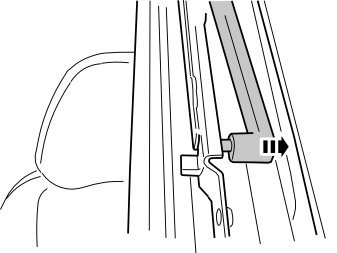

Carefully press out the center of the gutter and then press the corner outwards to release the gutter clips from the sunroof frame. Repeat the procedure on the other side.

Installation

Installing the gutter




Install the 2 new clips on the gutter.

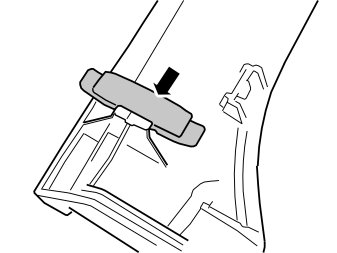

Note! Ensure that the clips are positioned correctly on the gutter, see illustration.

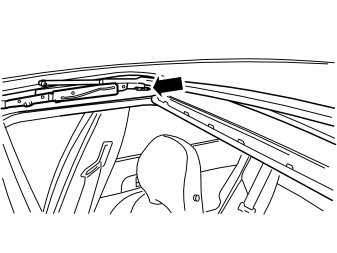

First align one corner with the gutter and then the other.

Caution! Ensure that the clips are in the correct position.

Note! Do not damage or loosen the clips.





Press both front mountings for the gutter into place.

Finishing

Installing the sunroof glass
Install the sunroof glass. See: Glass sun roof Service and Repair.
