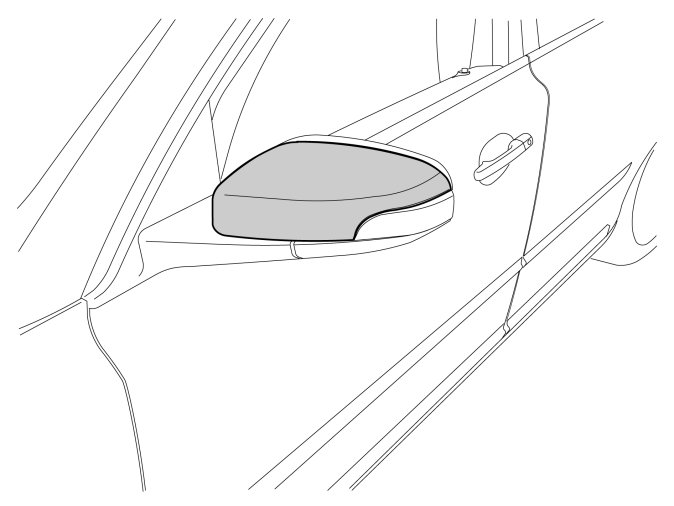

Mirror, Cover

Mirror, cover























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Mirror, cover

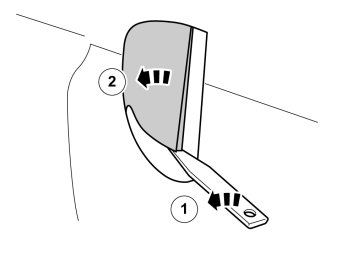

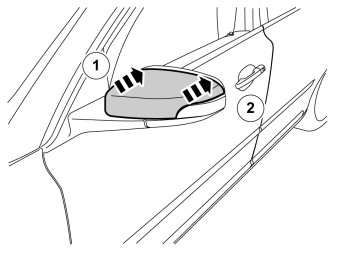

- Pry/twist off the mirror cover using a weatherstrip tool (1). Fold it forward (2) and unhook it at the front edge.


Illustration A





Illustration B

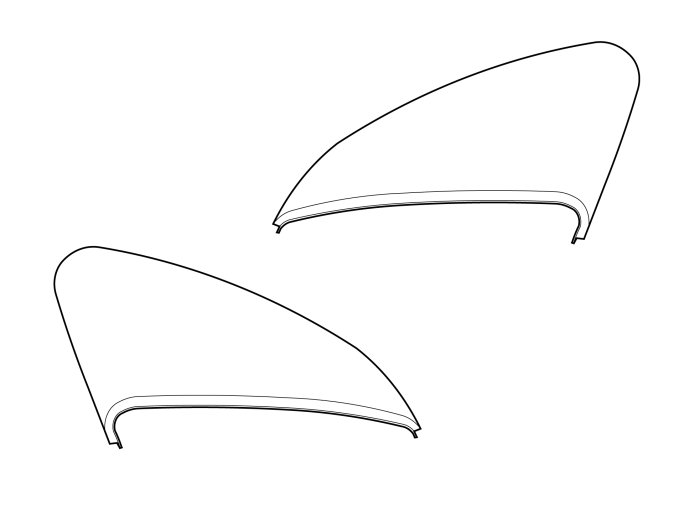

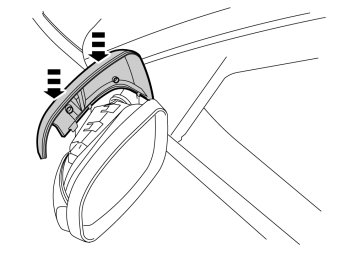

- Take a new cover from the kit, push it down towards the mirror housing and align the cover's three lugs in the corresponding recesses in the housing.
- Align the cover's inner end in the housing.





- Check that the cover is parallel to the housing.

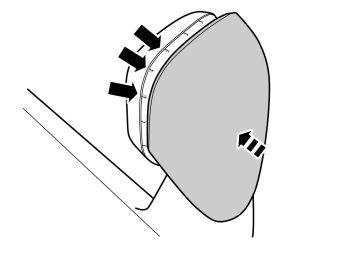

- First press the cover on the inside and then on the outside.
- Check that the cover is secured correctly.
- Repeat the steps for the other mirror.
