Interior - Tunnel Console Armrest Creak Noise

Technical Journal

TITLE:
Tunnel Console Armrest, Creak Noise

REF NO:
TJ 26211

ISSUING DEPARTMENT:
Technical Service

CAR MARKET:
United States

PARTNER:
3 US 7510 Volvo Cars North America

ISSUE DATE:

YEAR
2012

MONTH
08

DAY
08

FUNC DESC:
8821

FUNC GROUP:
Arm rest; courtesy handle;
hand rail

"Fixed Right - First Time"

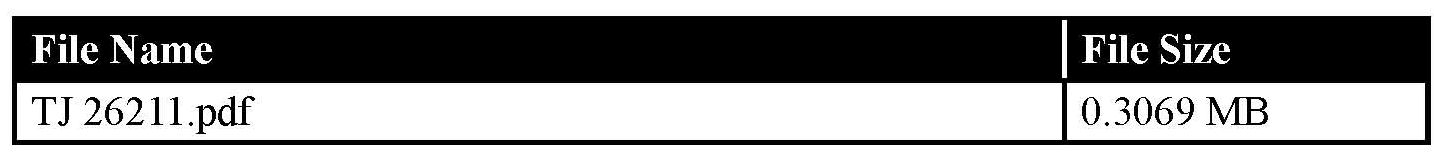

Attachment

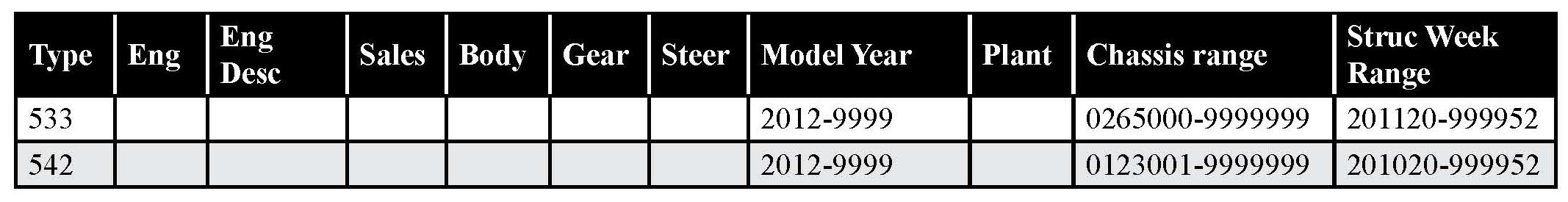

Vehicle Type

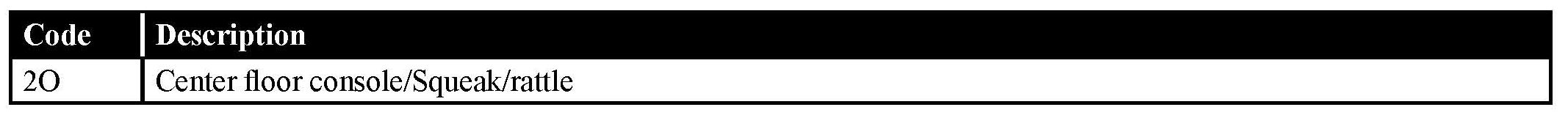

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

Note! If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:
Noise from the armrest at the tunnel console may occur during driving.

SERVICE:

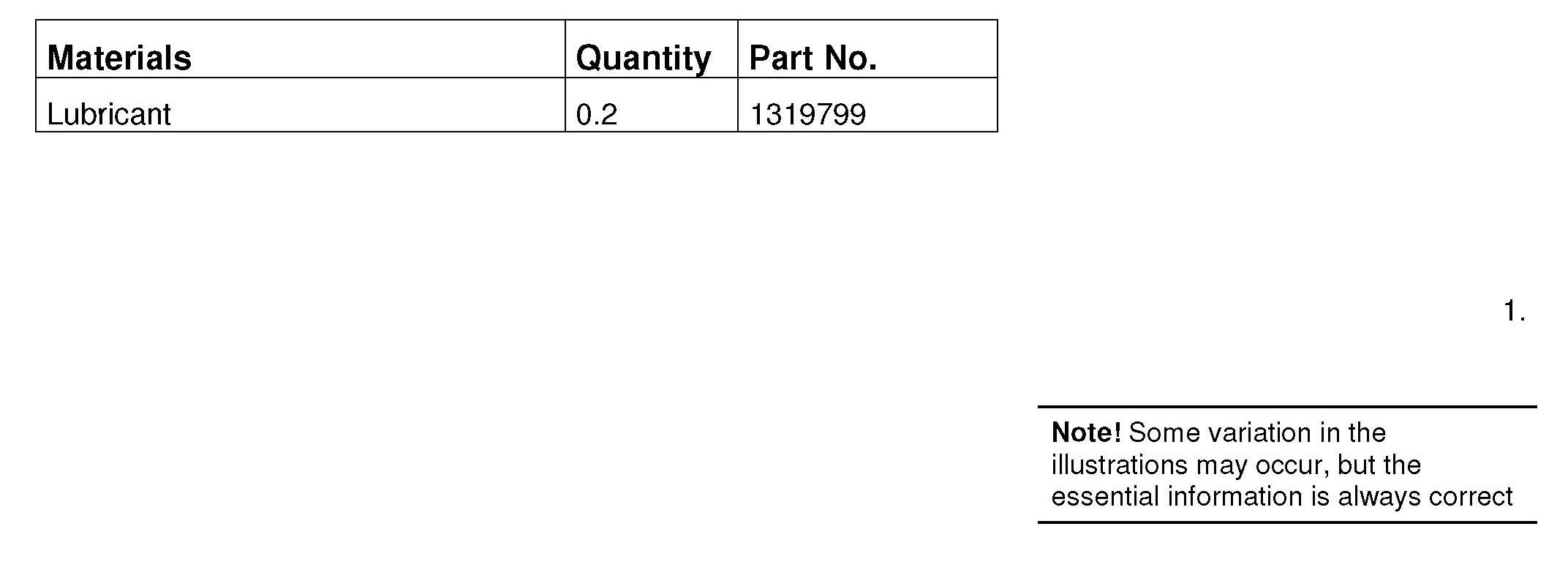

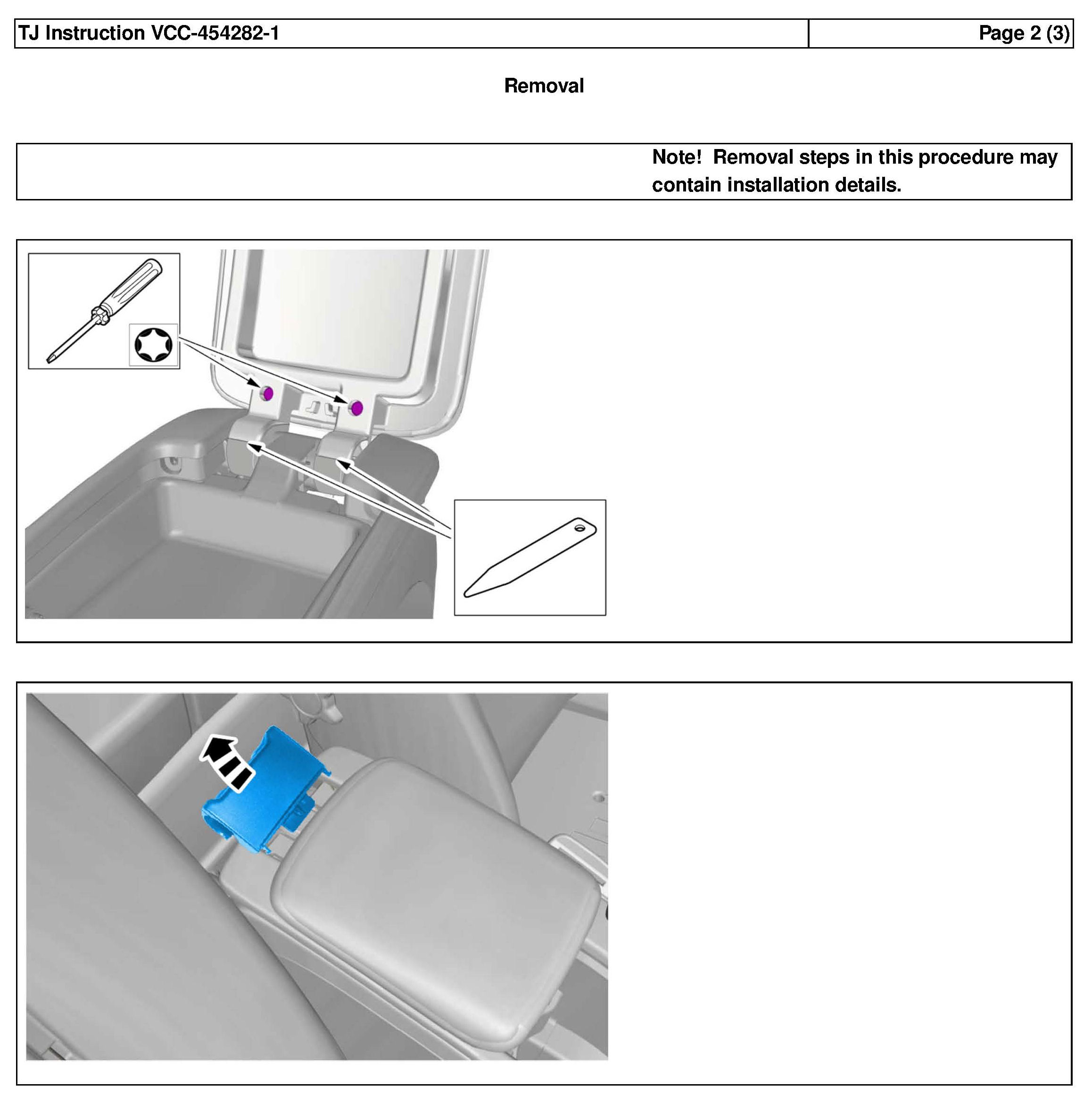

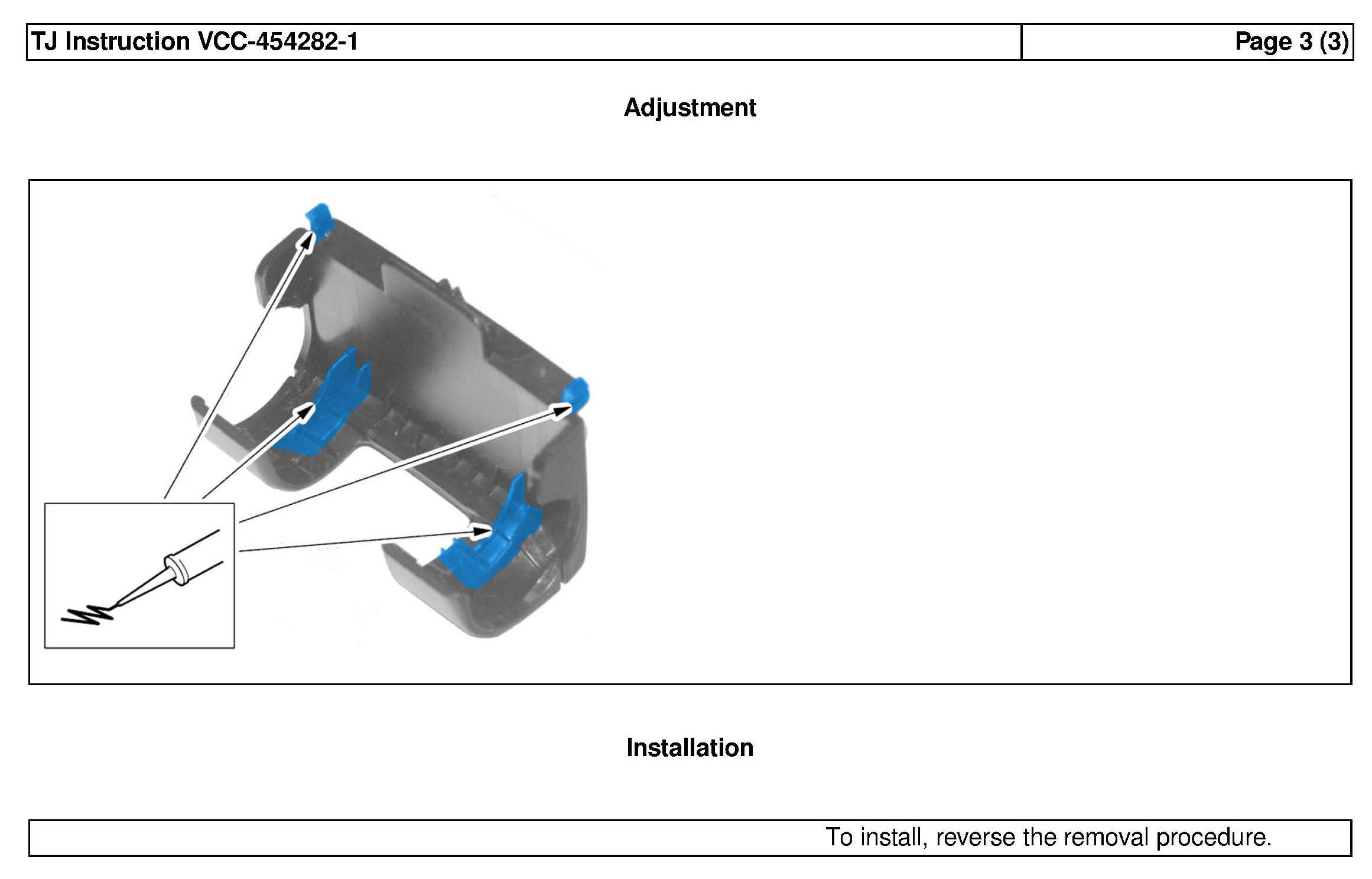

In case of customer complaints, perform action according to attached file.

VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number *99400-2* - **General check/adjust** - "0.1 hrs"

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01

- Labor times are valid at the time of release and are subject to change.











To view TJ attachment continue to next page:
