Interior - Center Armrest And Console Slip Squeak Noise

Technical Journal

TITLE:
Center Armrest/Console Slip Squeak Noise

CAR MARKET:
United States

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 26724

ISSUE DATE:

YEAR
2012

MONTH
08

DAY
31

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
Drivers resting compartment

FUNC GROUP:
8560

"Fixed Right - First Time"

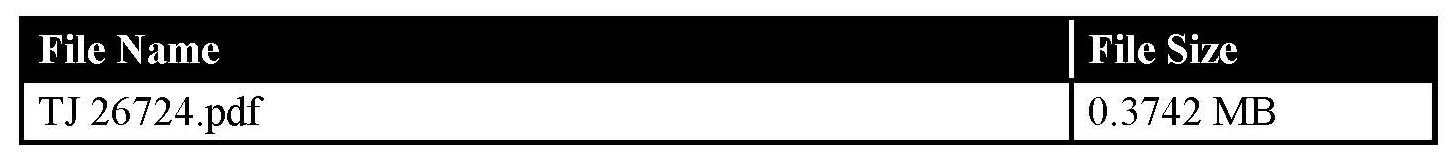

Attachment

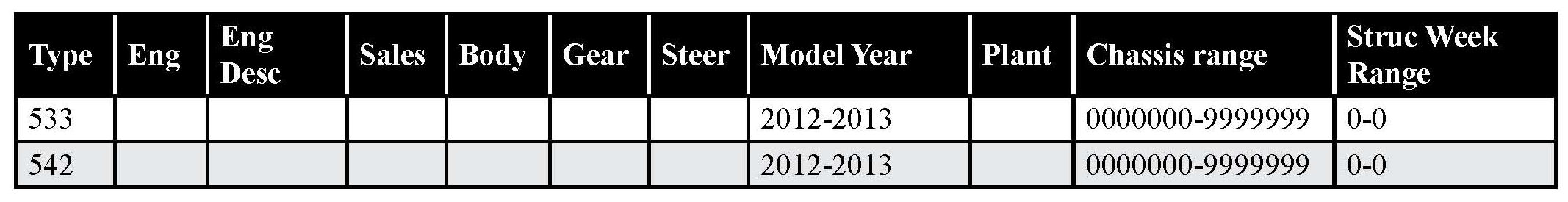

Vehicle Type

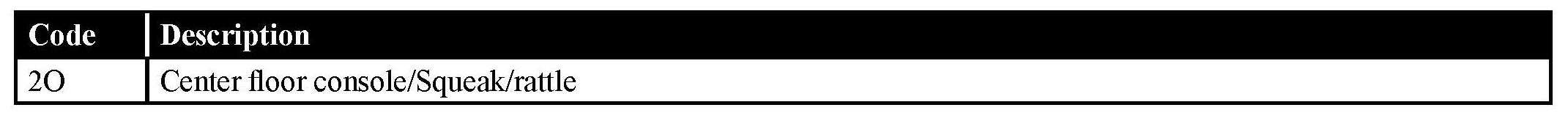

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

Note! If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:
Customer may experience a squeaking type noise when resting their arm on the center console or whenever flexing the console.

SERVICE:

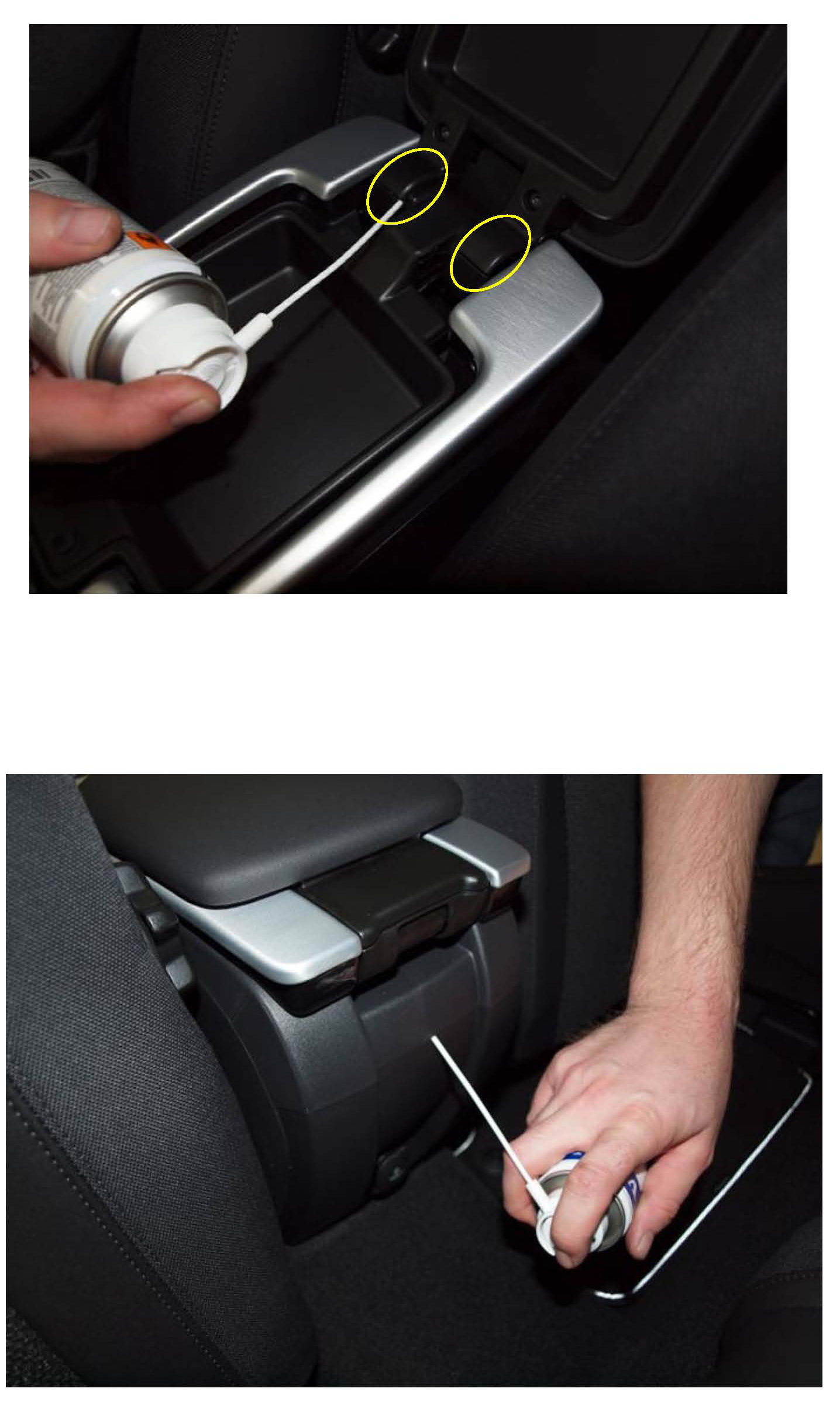

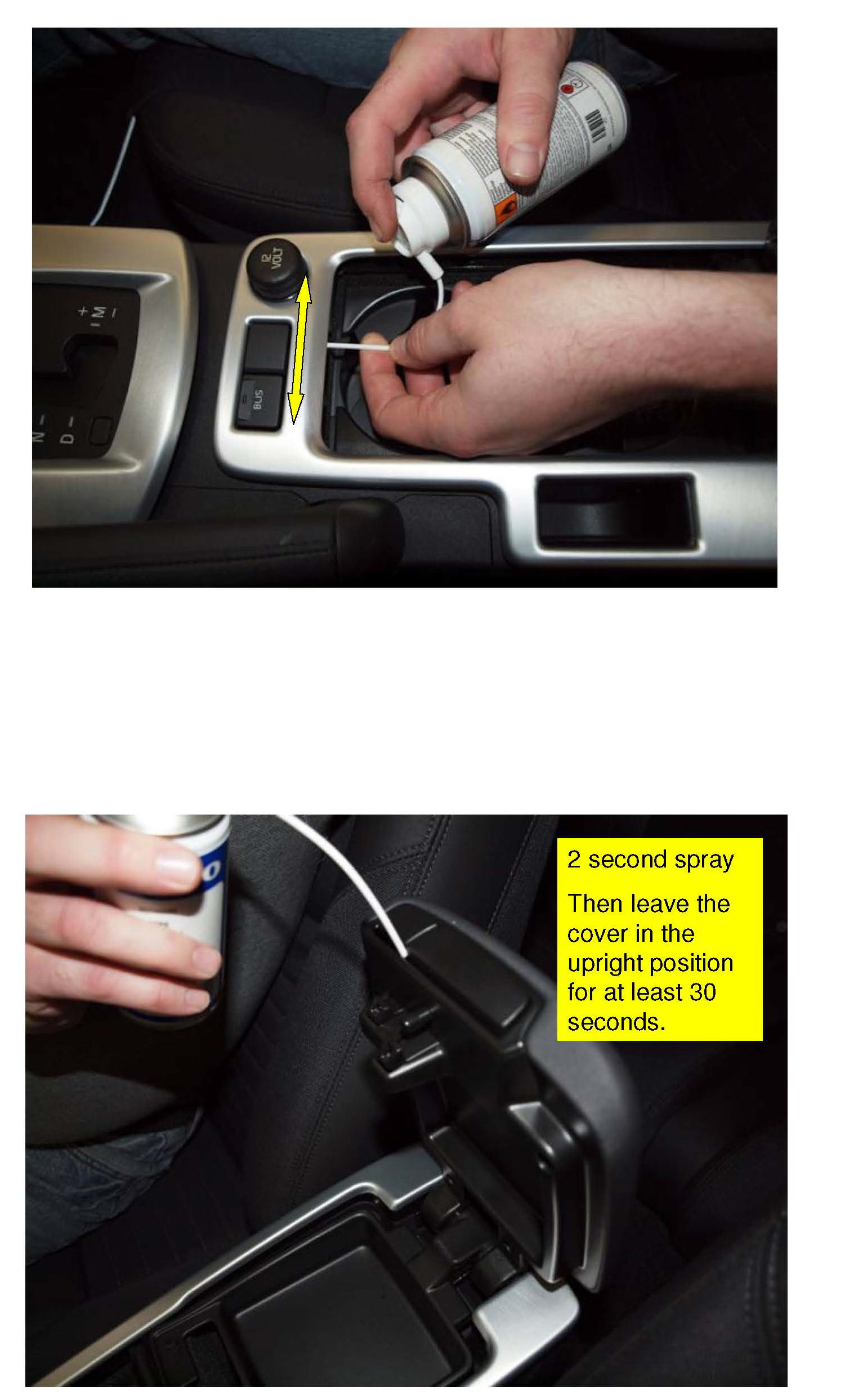

Apply anti-squeak oil to contact area between outer console trim area and the plastic it is attached to. See attachment for specific areas to apply oil.

VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number *08262-2* - **Center armrest/console adjust** - "0.1 hrs"

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01

- Labor times are valid at the time of release and are subject to change.

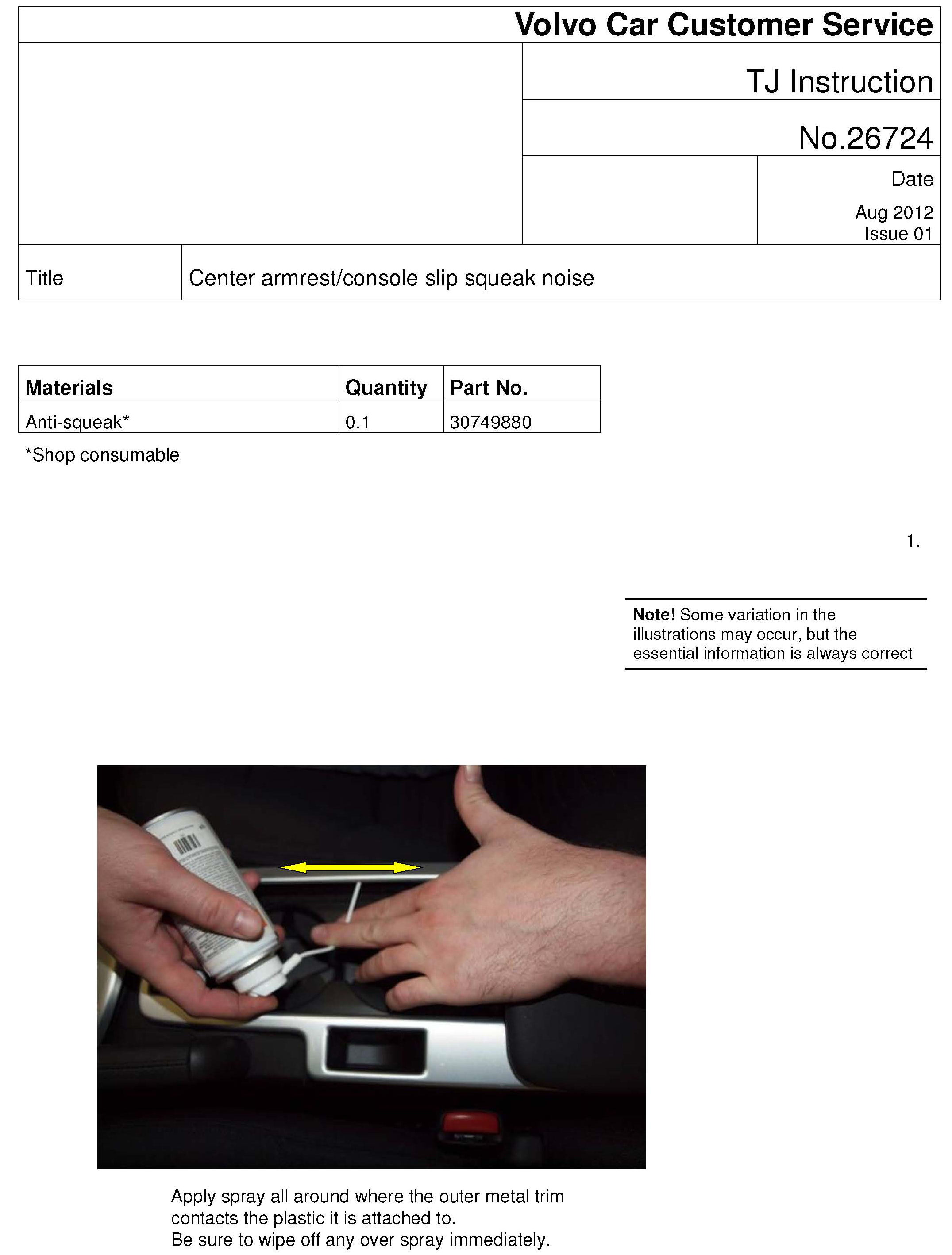

To view TJ attachment continue:
