Storage Compartment Front Center Console

Storage compartment front center console

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing front storage compartment center console





Remove:
- the center console. See: Center console Center Console

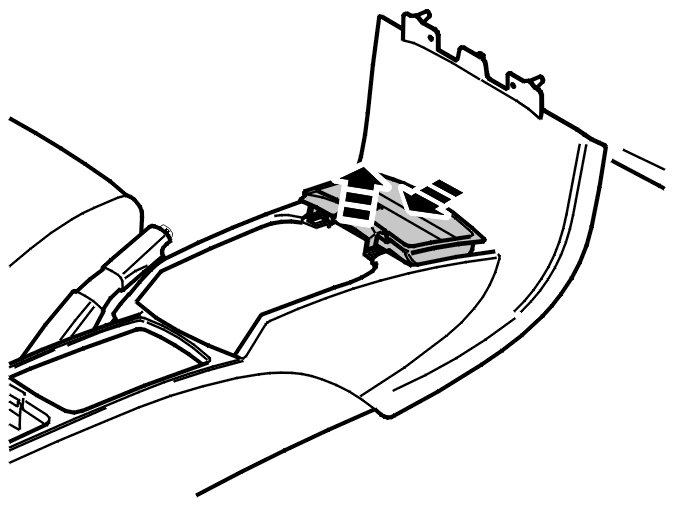

- the storage compartment by releasing the 2 clips at the rear edge. Then pull the storage compartment backwards.

Installation

Installing front storage compartment center console





Install:
- the storage compartment by guiding in the front edge. Then press the storage compartment into place
- the center console. See: Center console Center Console
