Center Console

Operation number: 88232-2

Center console

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

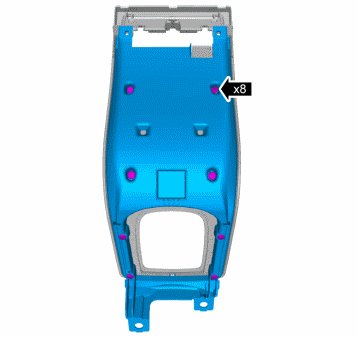

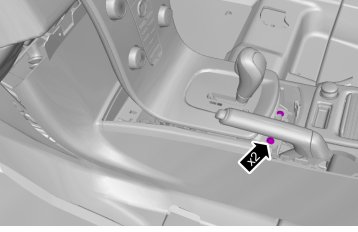

Remove screw middle console underside. Refer to: Tightening torque, B5254T7 [1][2]Body and Frame

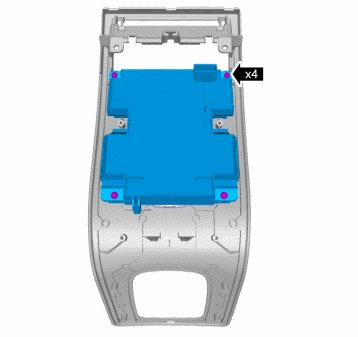

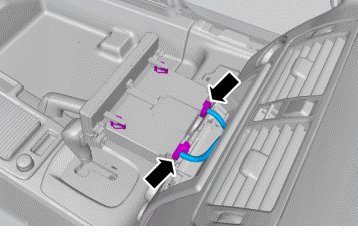

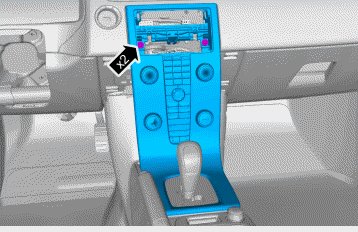

Remove screw climate control module. Refer to: Tightening torque, B5254T7 [1][2]Body and Frame

Installation

To install, reverse the removal procedure
