Front Door: Service and Repair

Operation number: 83120-2

Side door

Note! Some variation in the illustrations may occur, but the essential information is always correct.

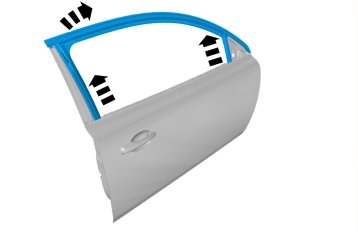

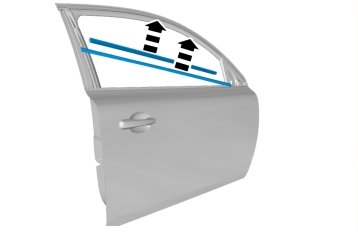

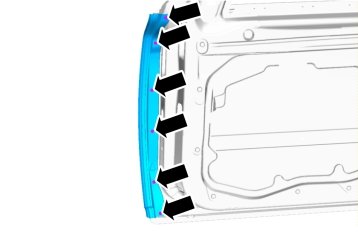

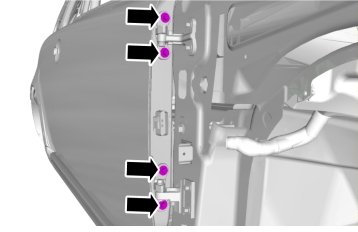

Removal


Remove the following items:
- lift mechanism side door front. Refer to: Lift mechanism, front door Service and Repair
- rearview mirror external. Refer to: Rear view mirror external Rear View Mirror External
- door stop side door. Refer to: Door stop front side door Service and Repair



















Installation

Install in reverse order.

Seal. Refer to: Body seal, sealing diagram

Rust proof. Refer to: Rustproofing
