Signal Specification, Accessory Electronic Module (AEM)

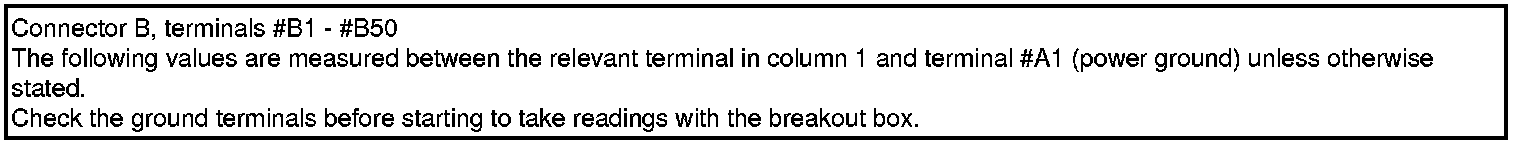

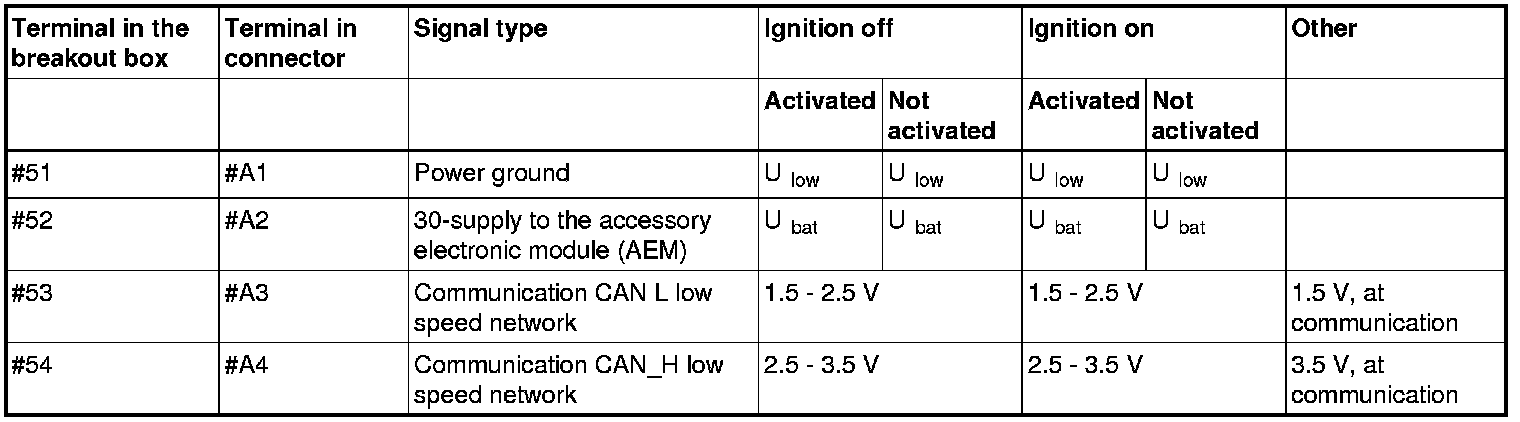

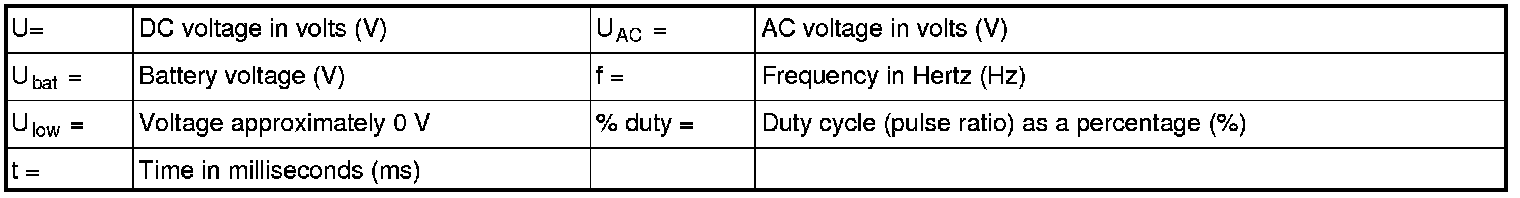

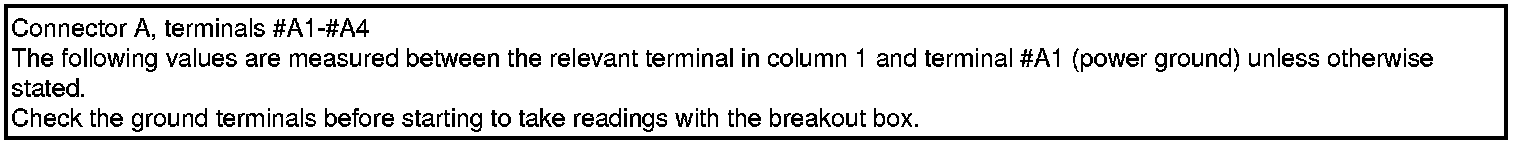

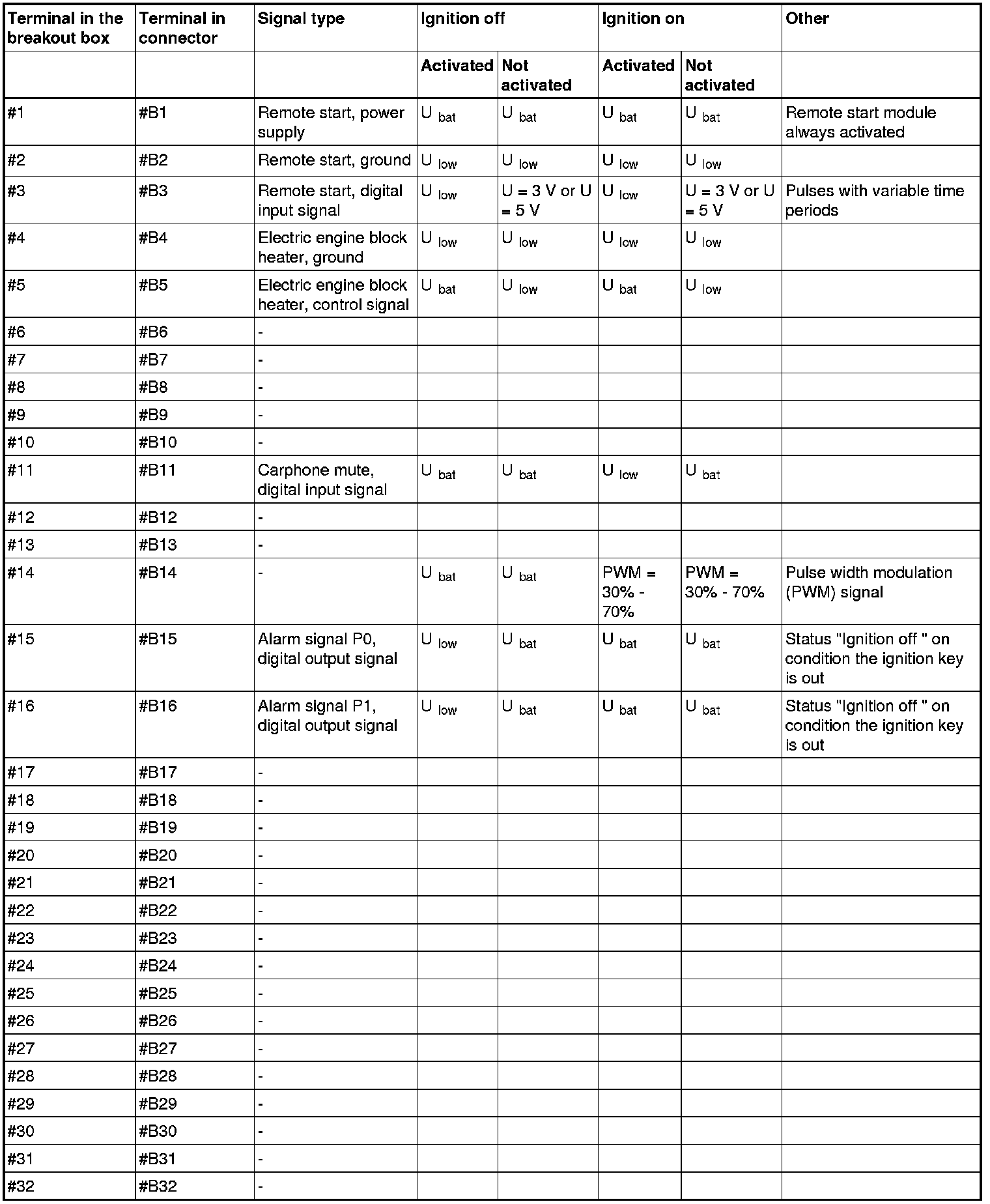

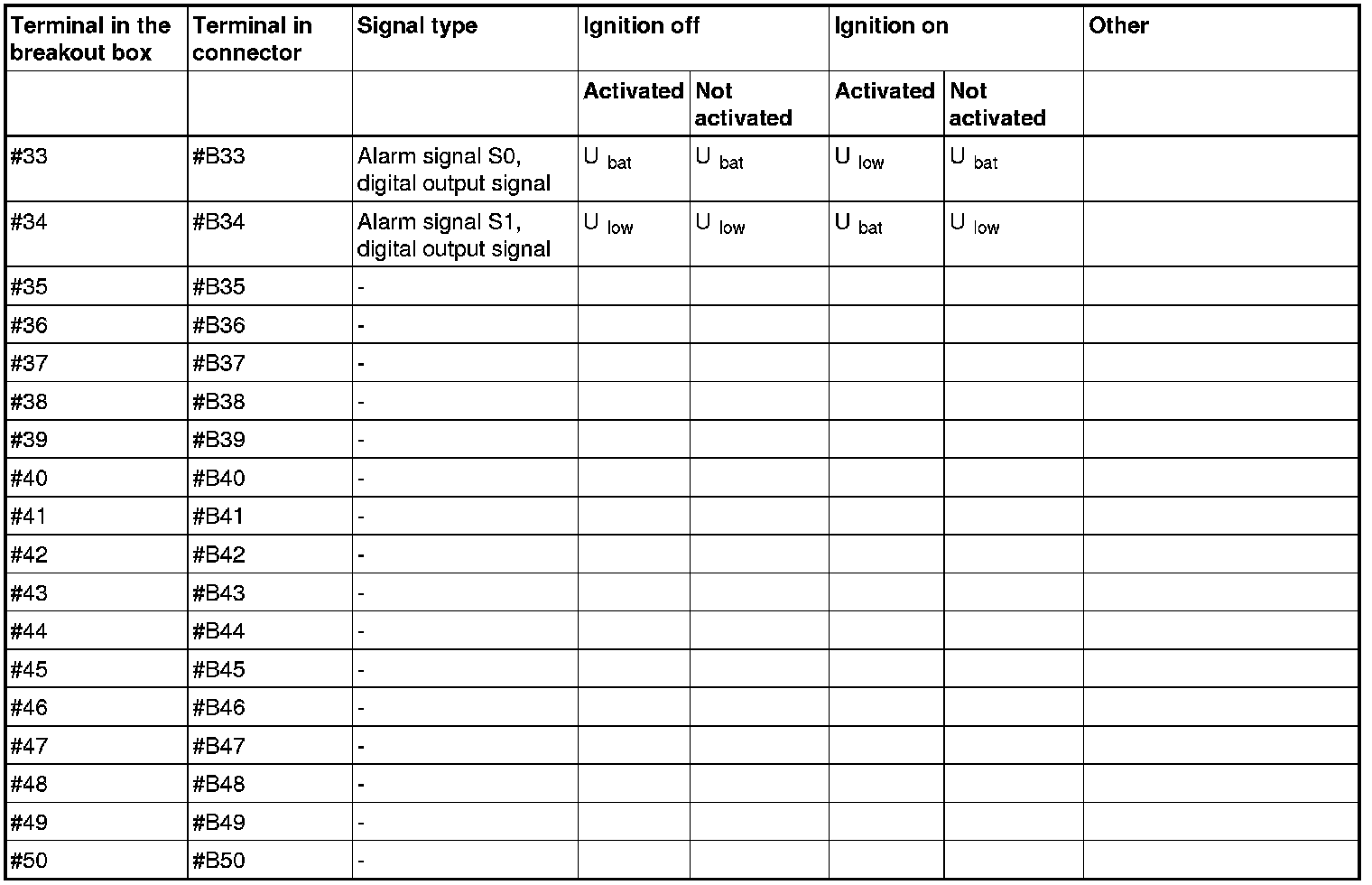

Signal specification









Note! It is important to connect the breakout box and check the ground terminals before taking readings.

Other information
- Connecting the breakout box Connecting the Breakout Box, Accessory Electronic Module (AEM).
