Signal Description, Central Electronic Module (CEM)

Signal description Central Electronic Module (CEM)

General

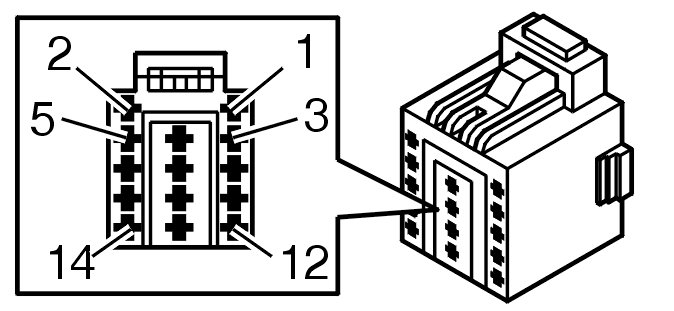

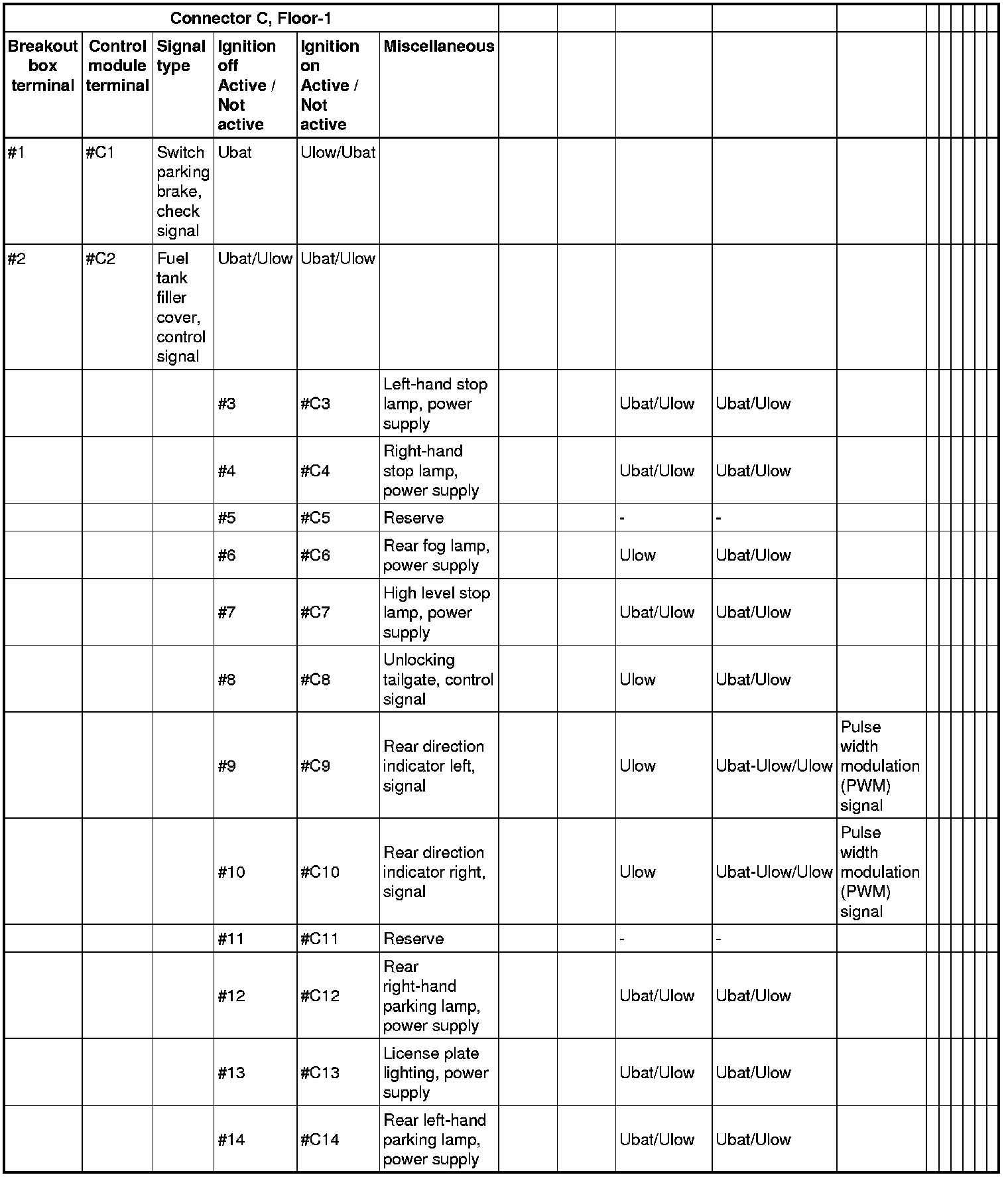

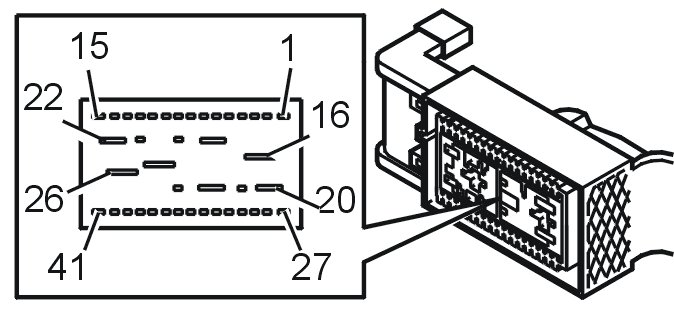

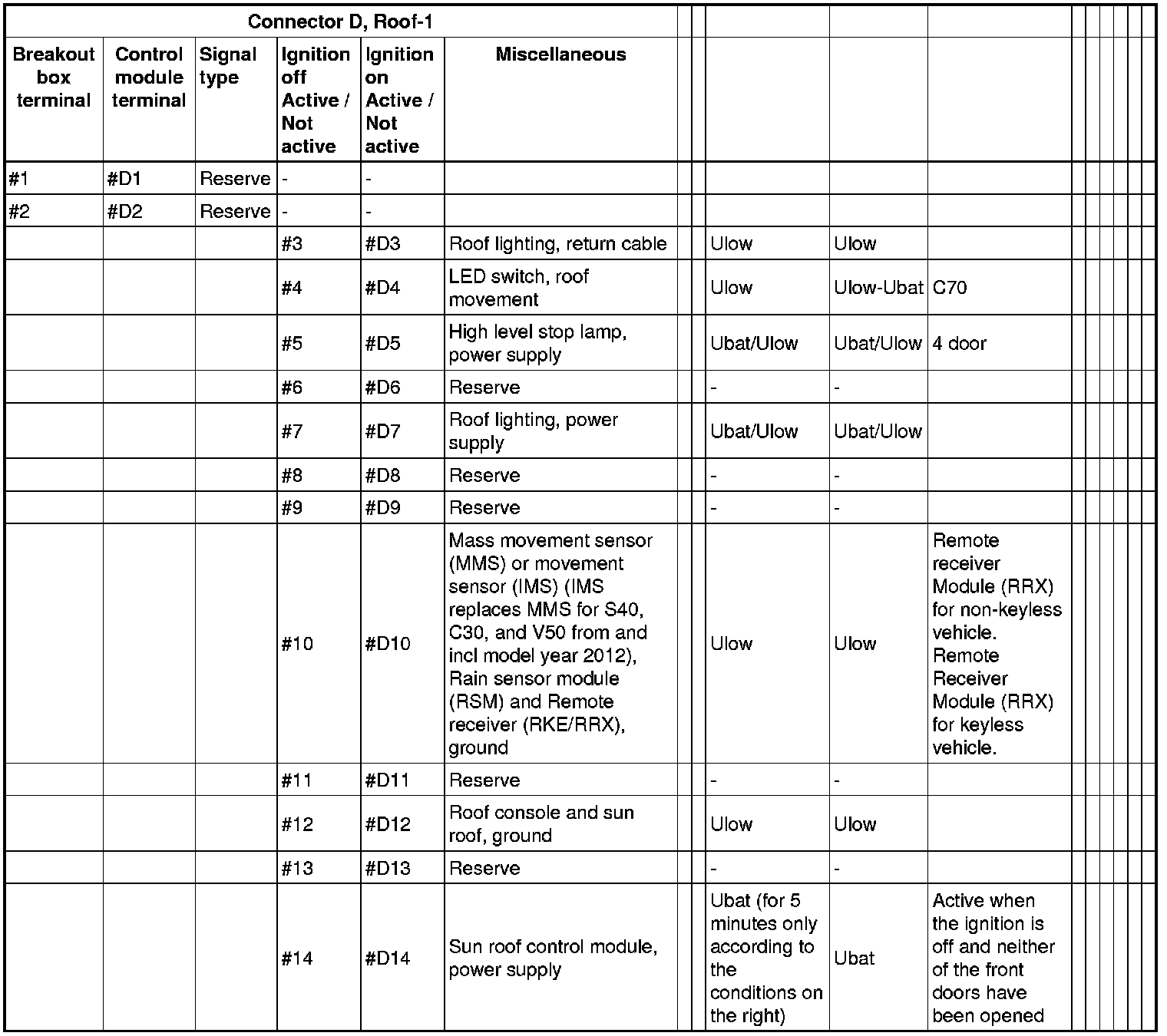

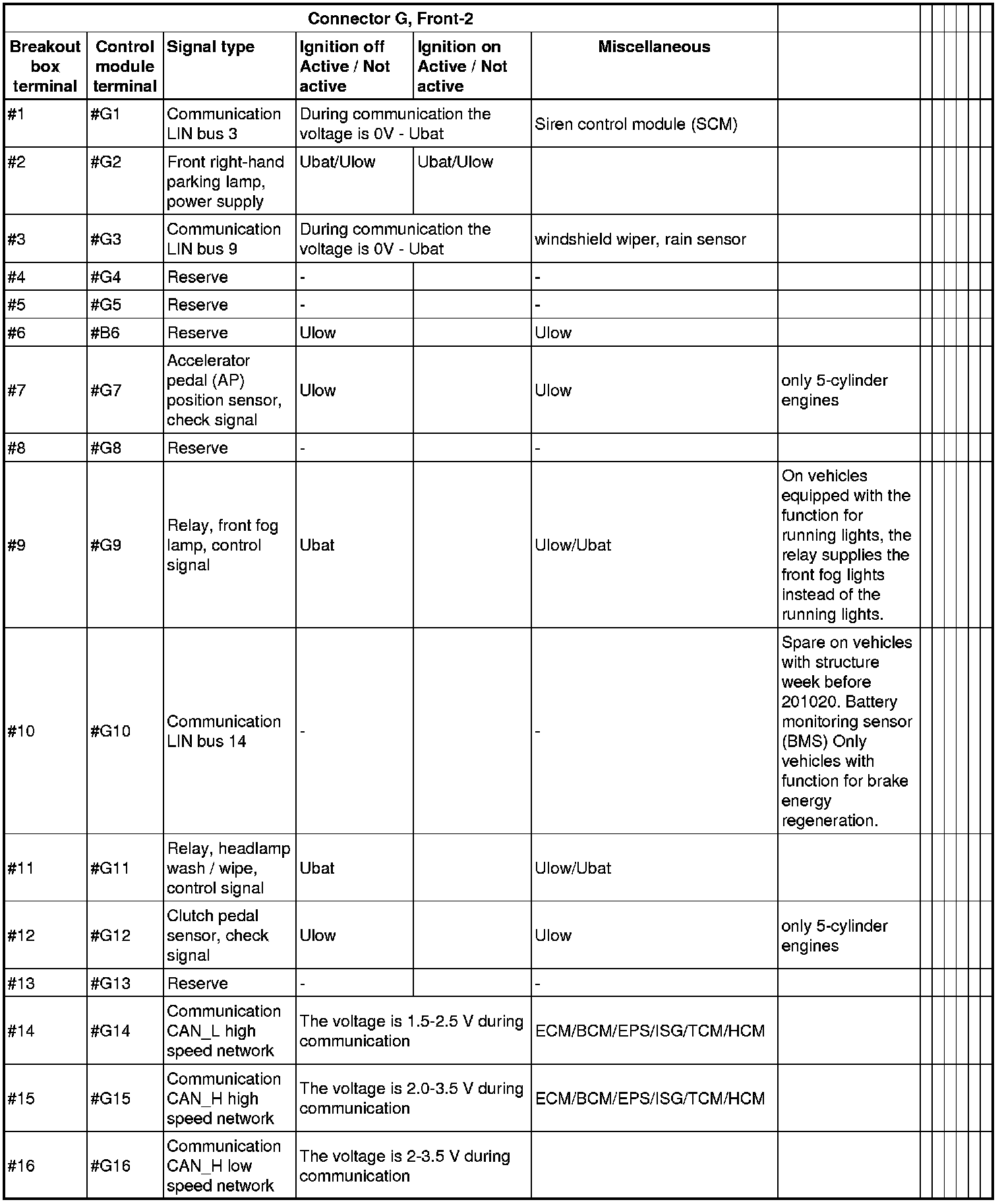

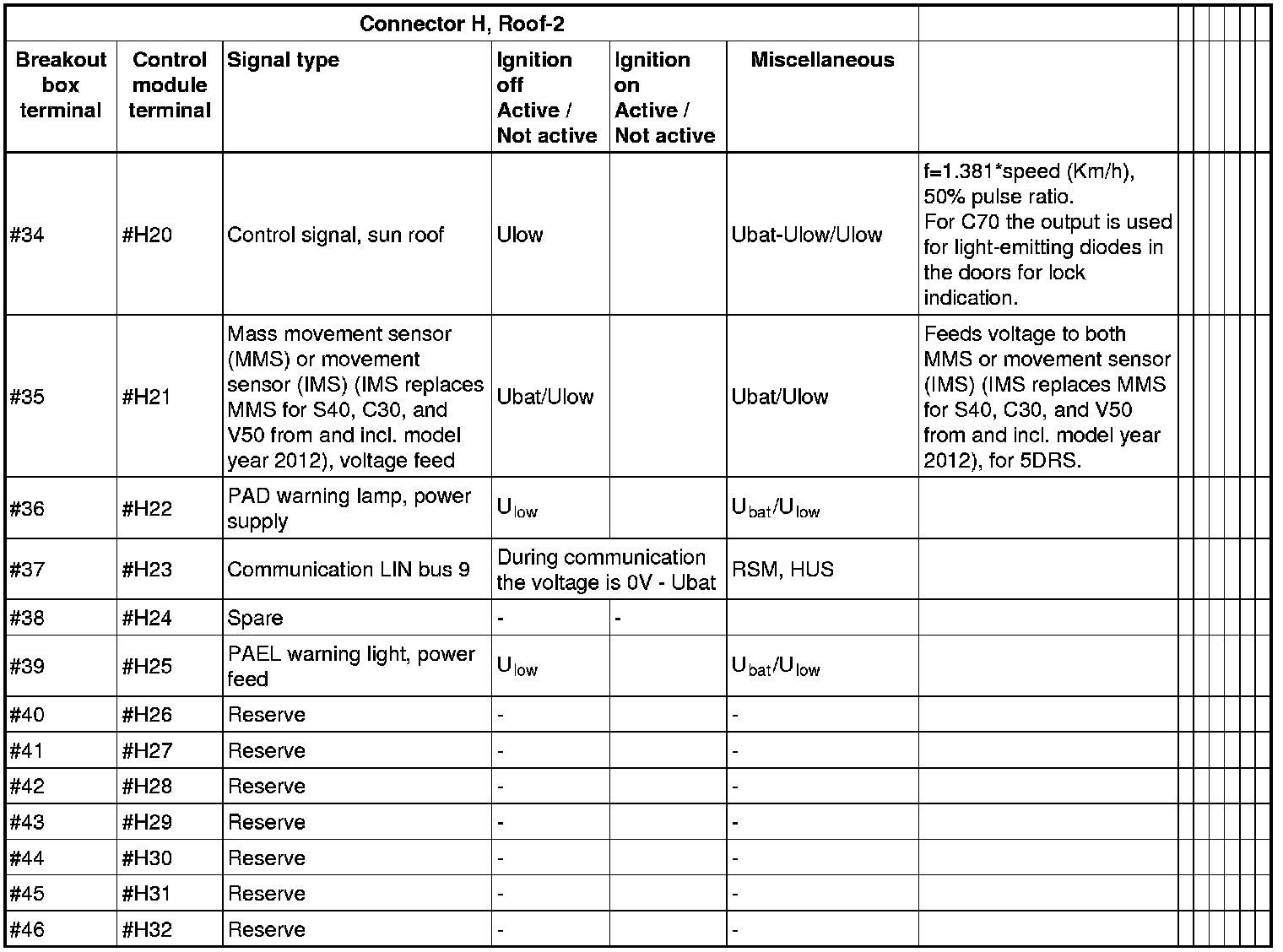

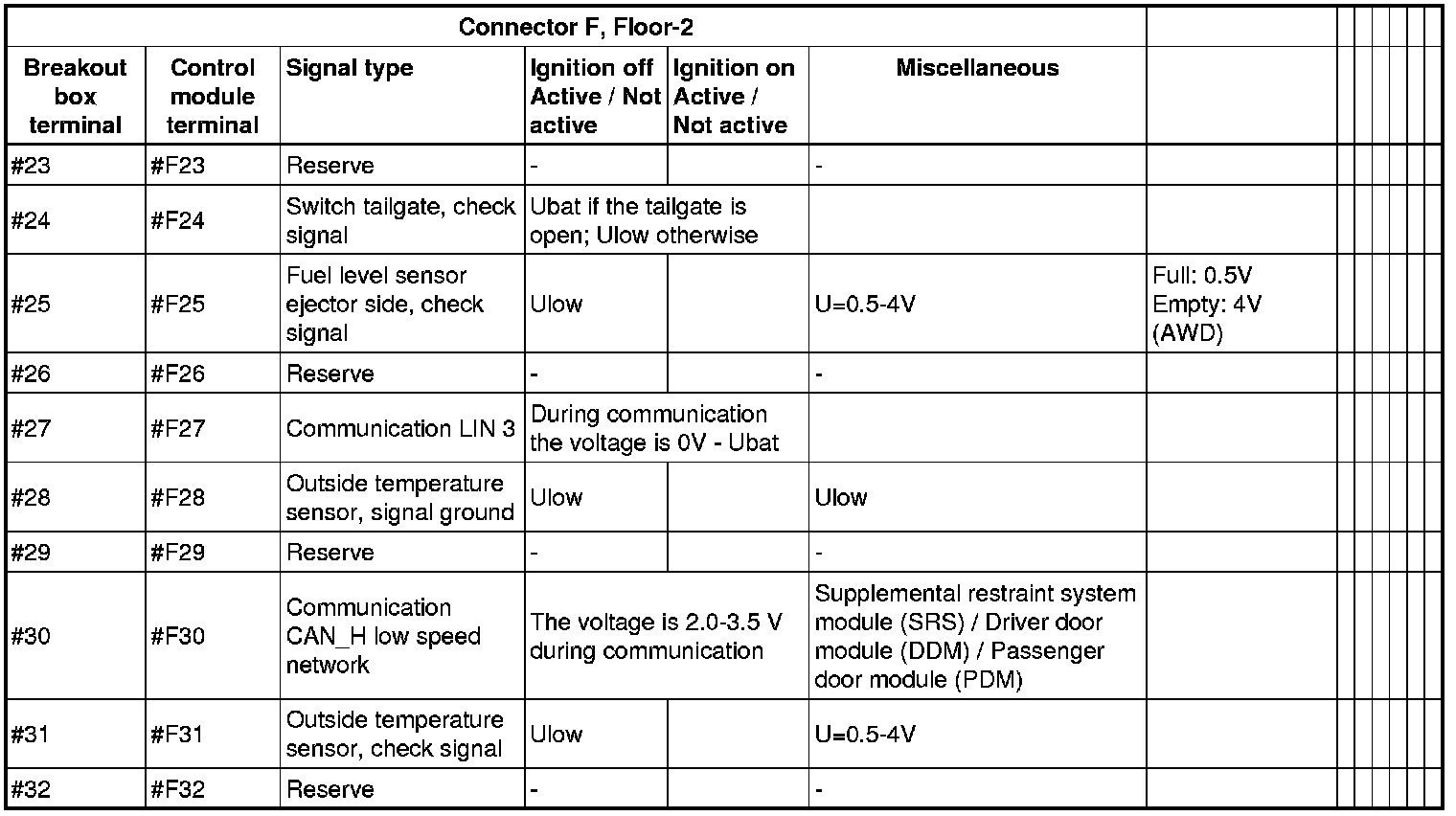

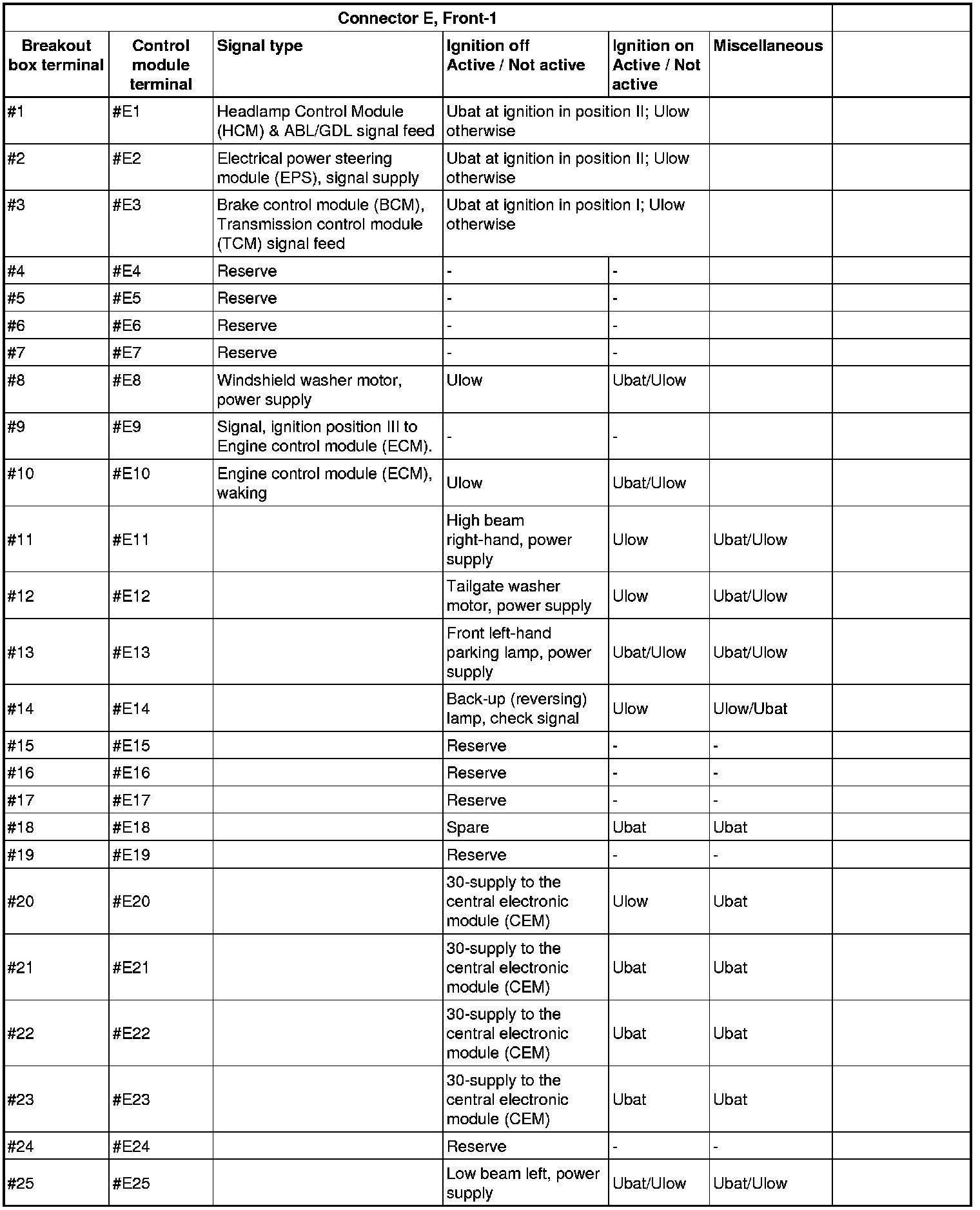

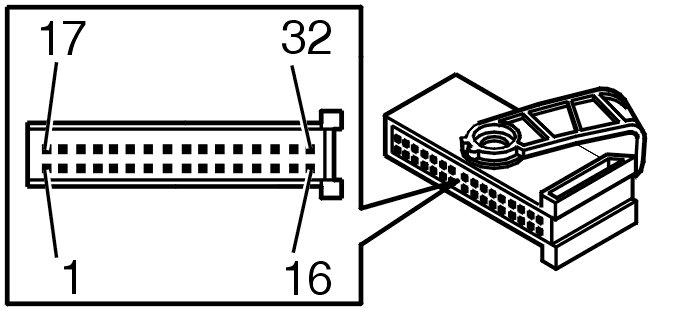

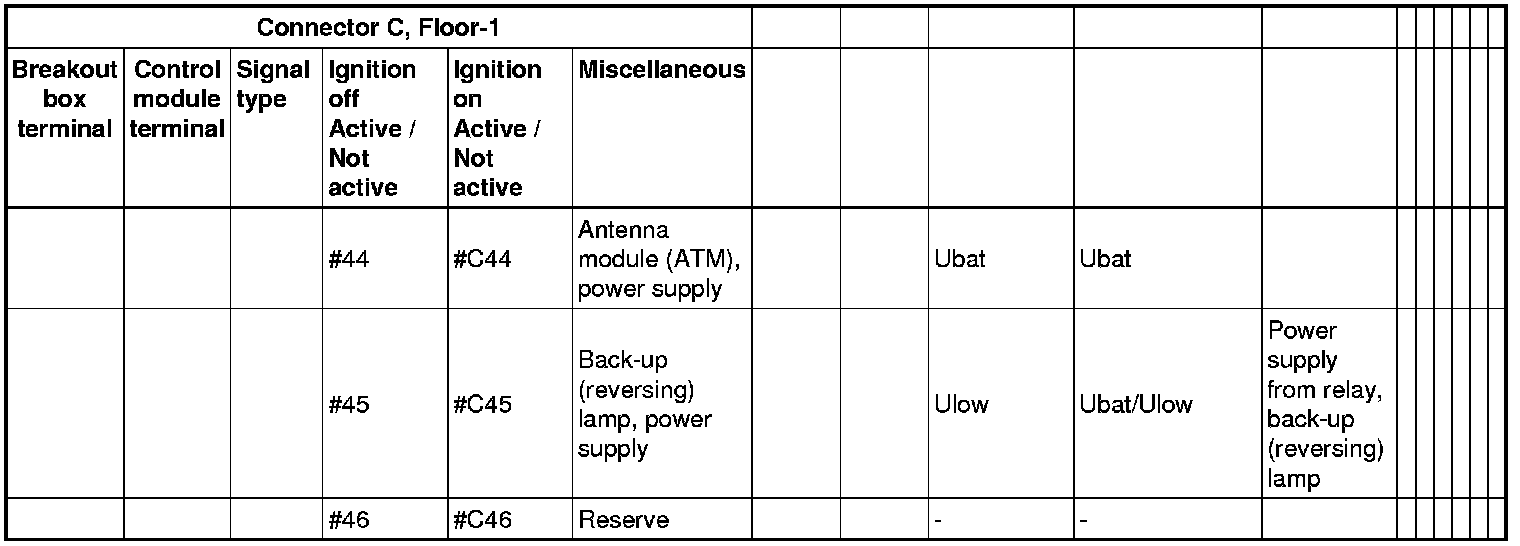

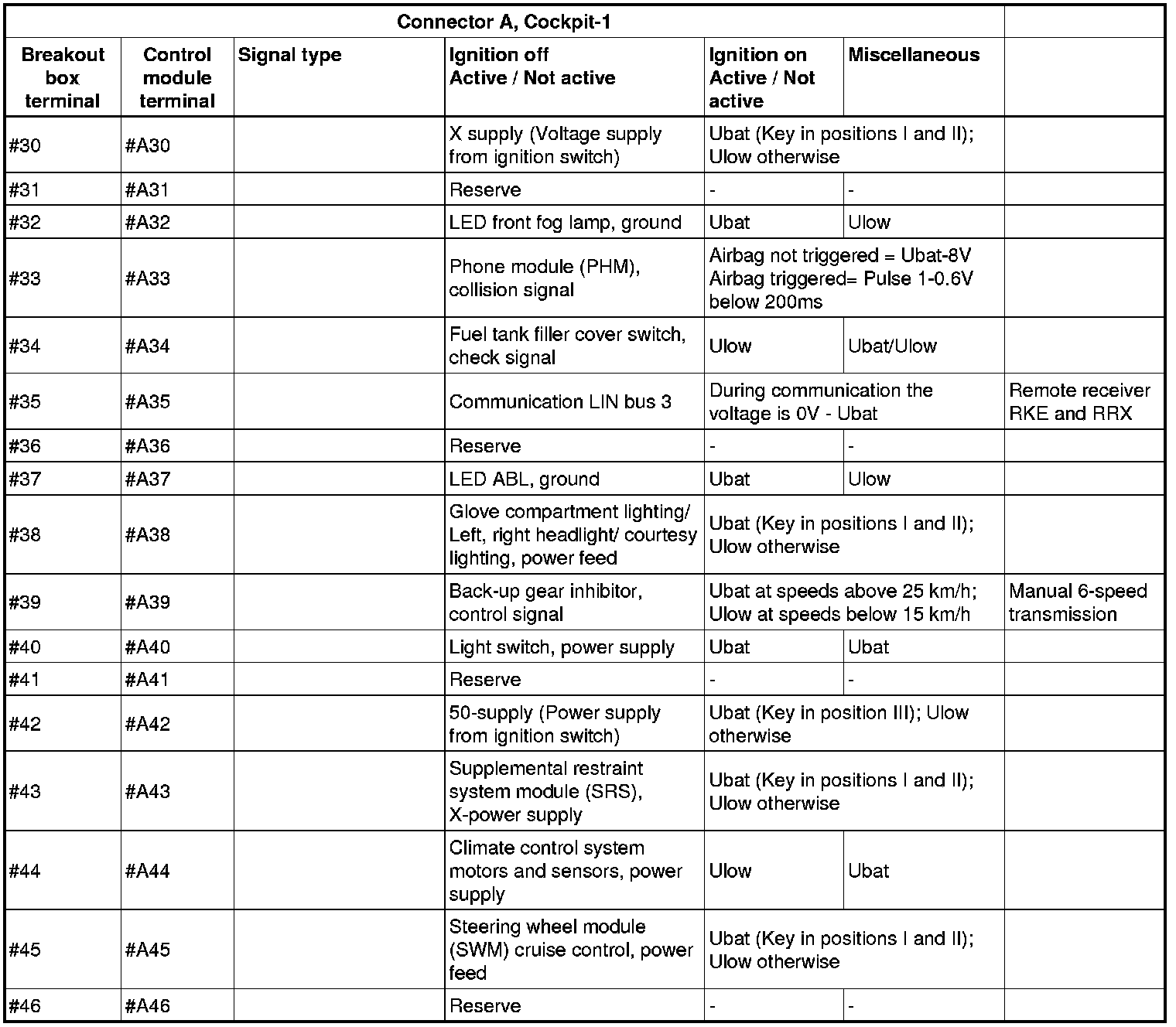

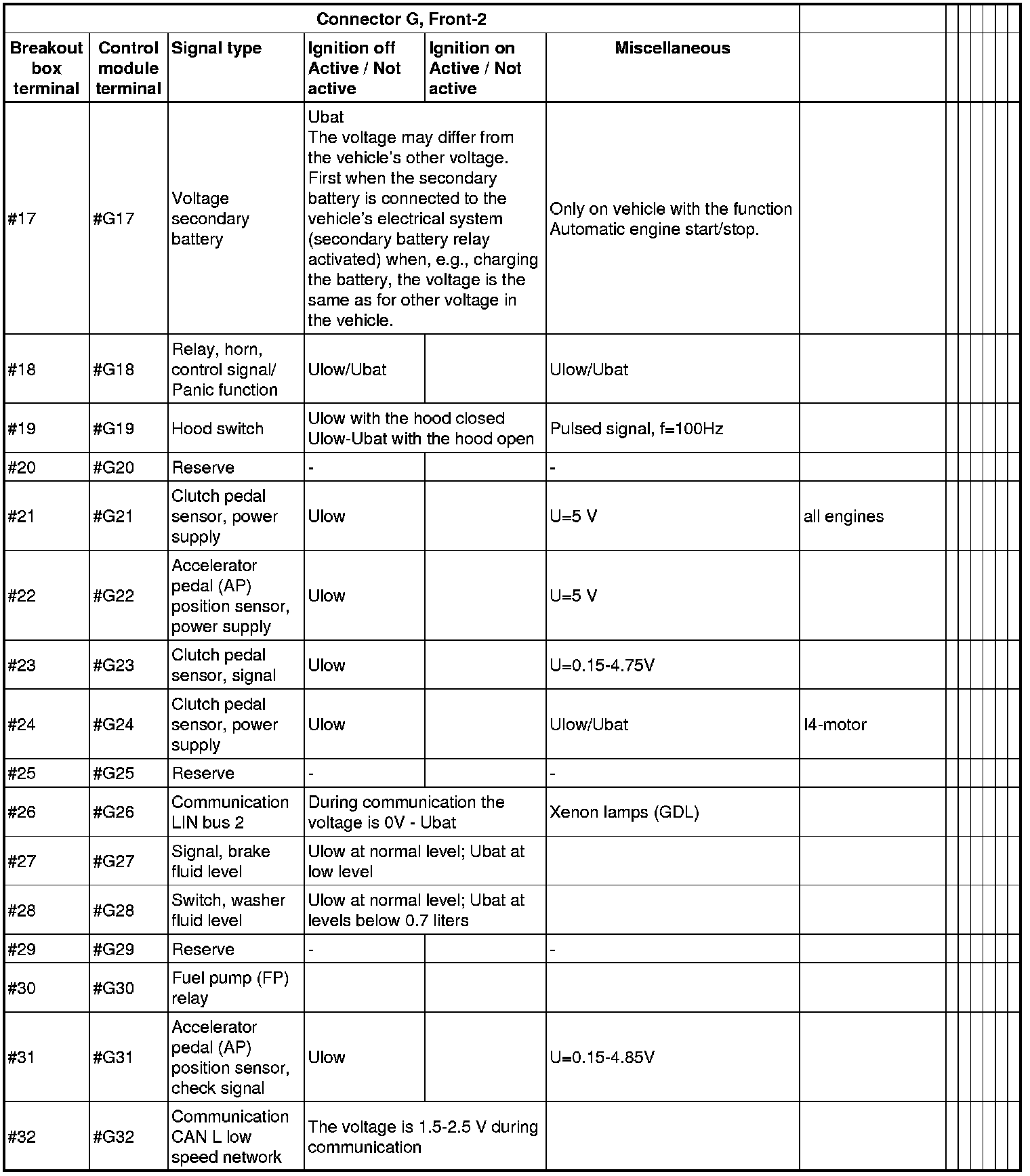

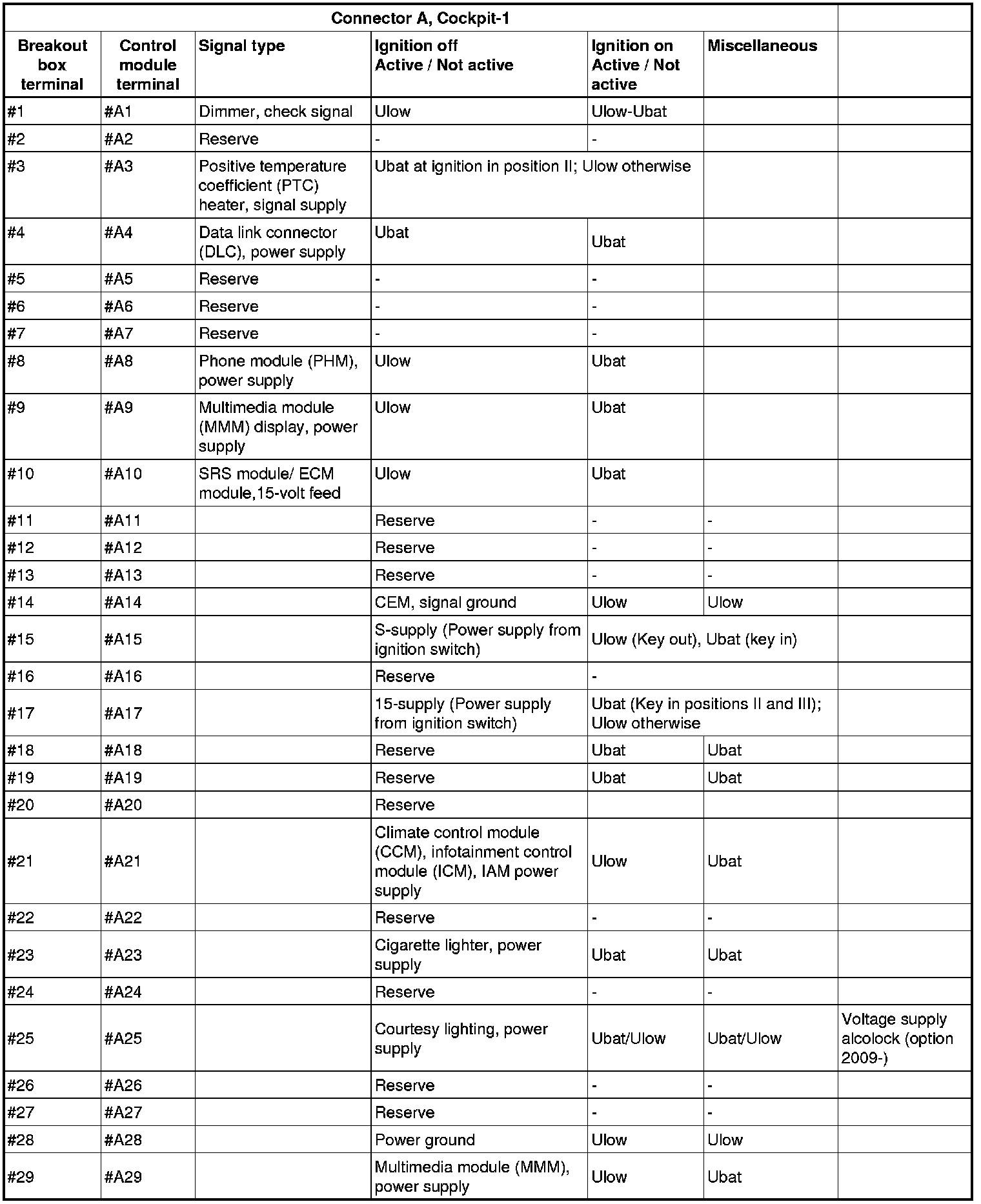

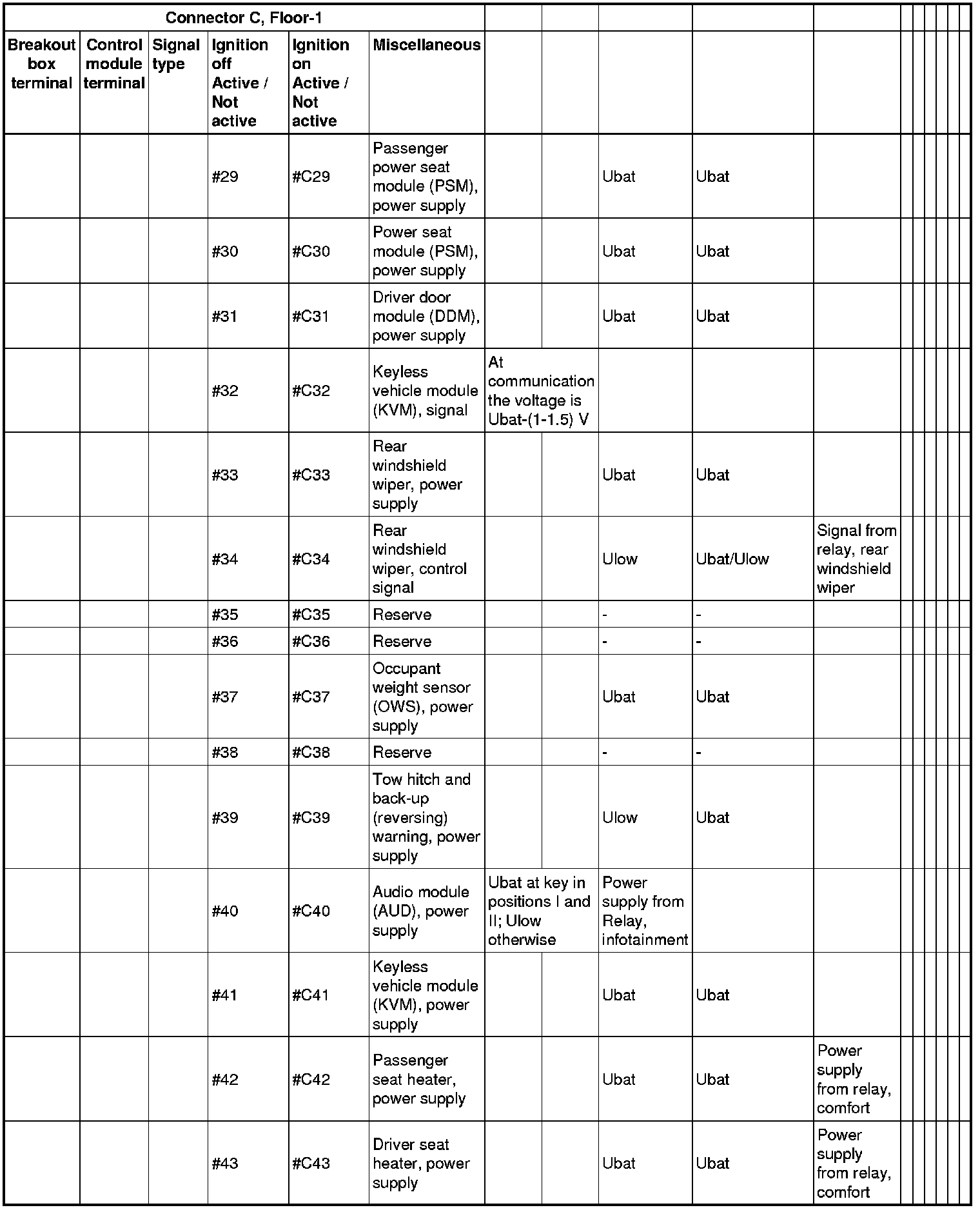

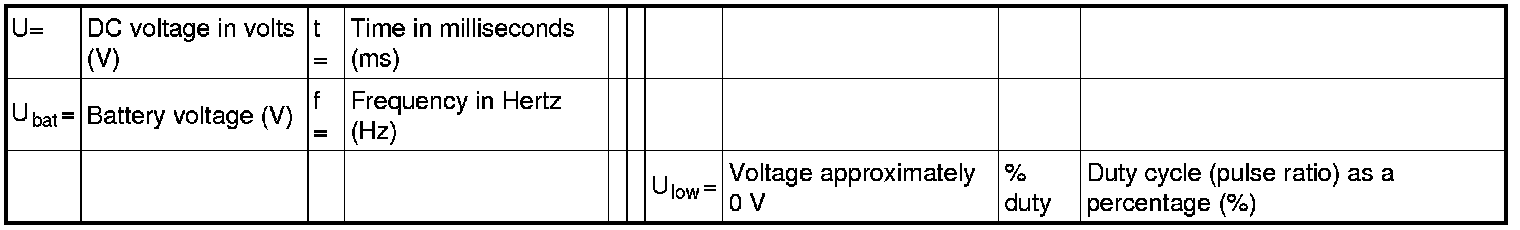

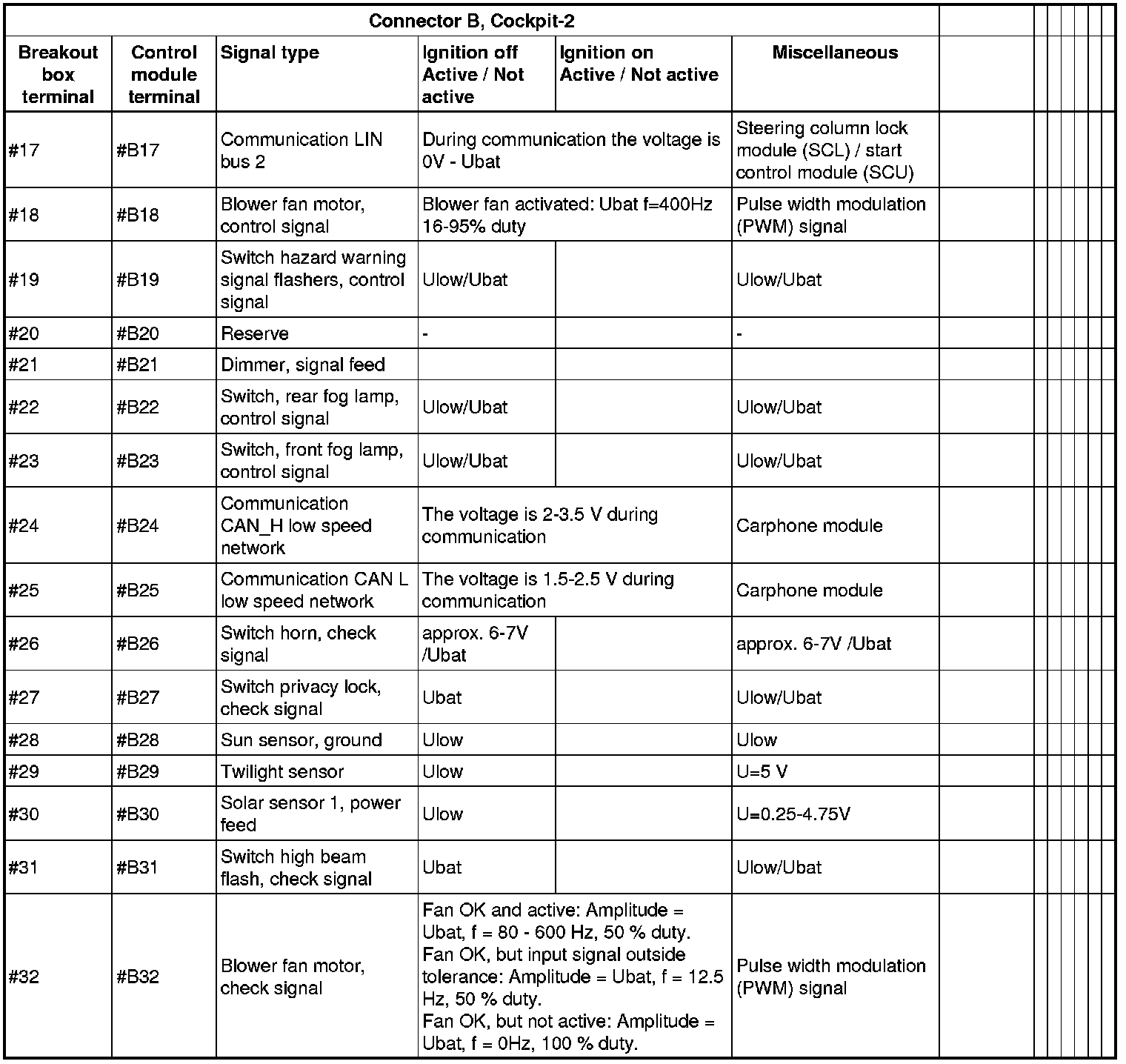

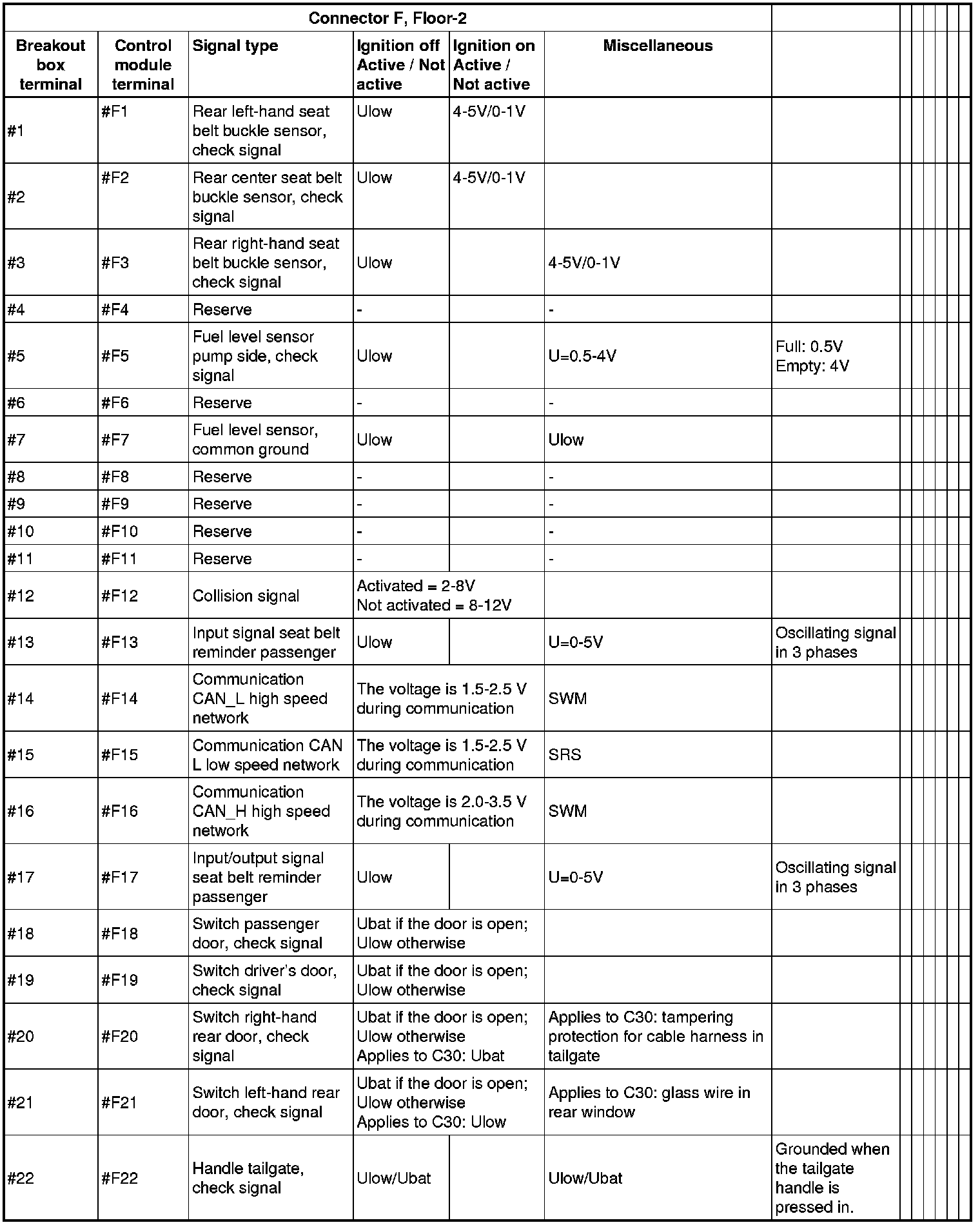

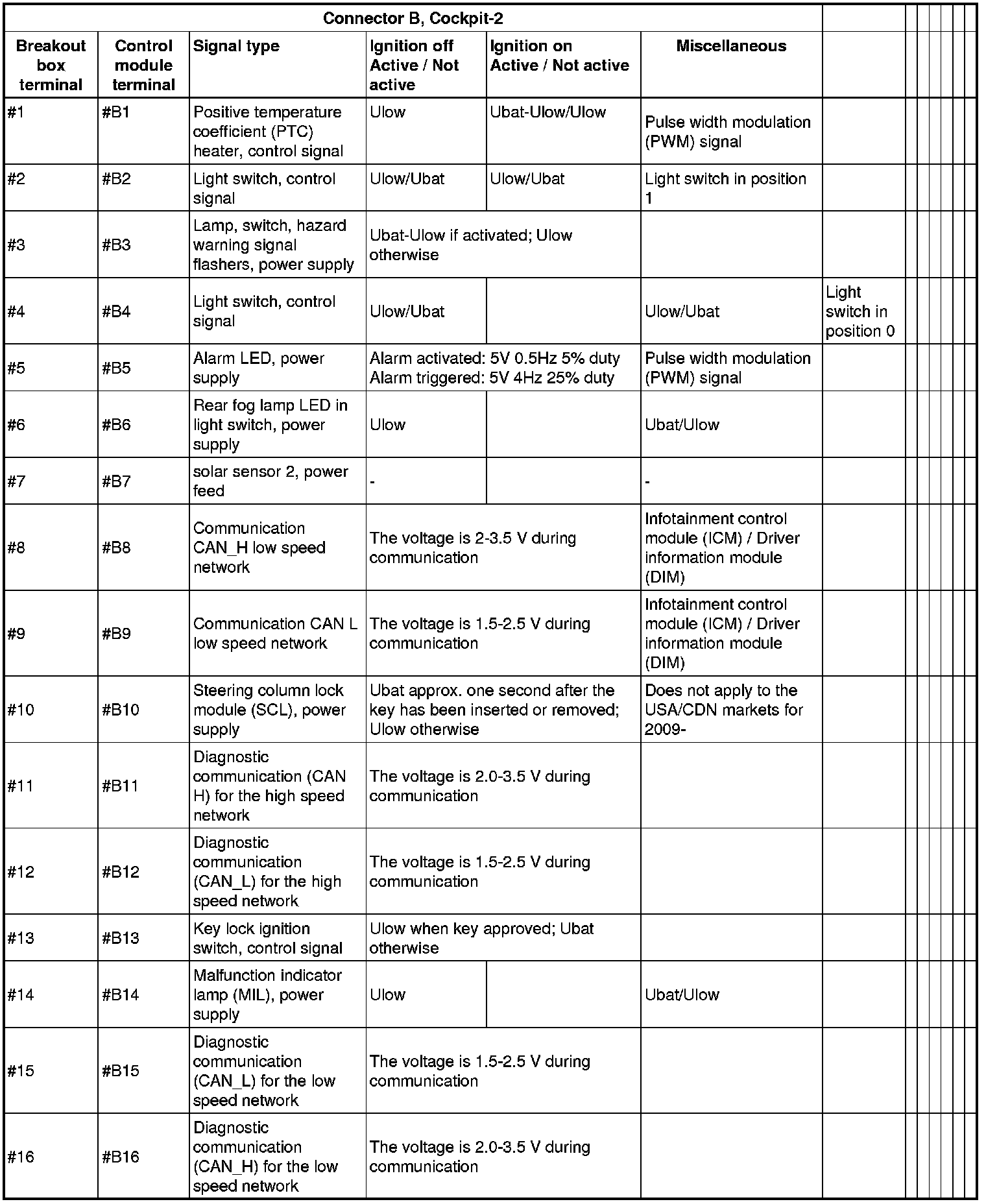

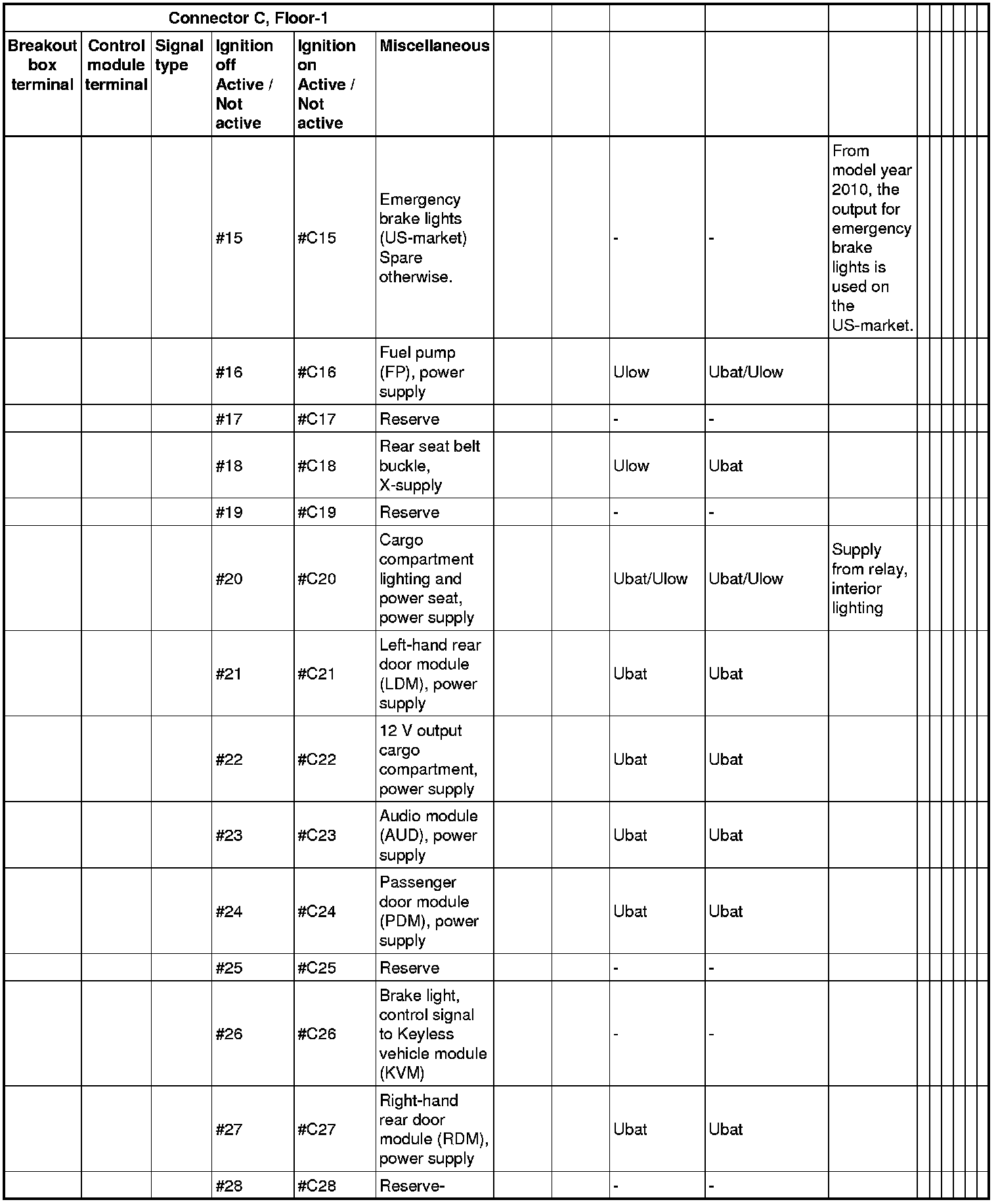

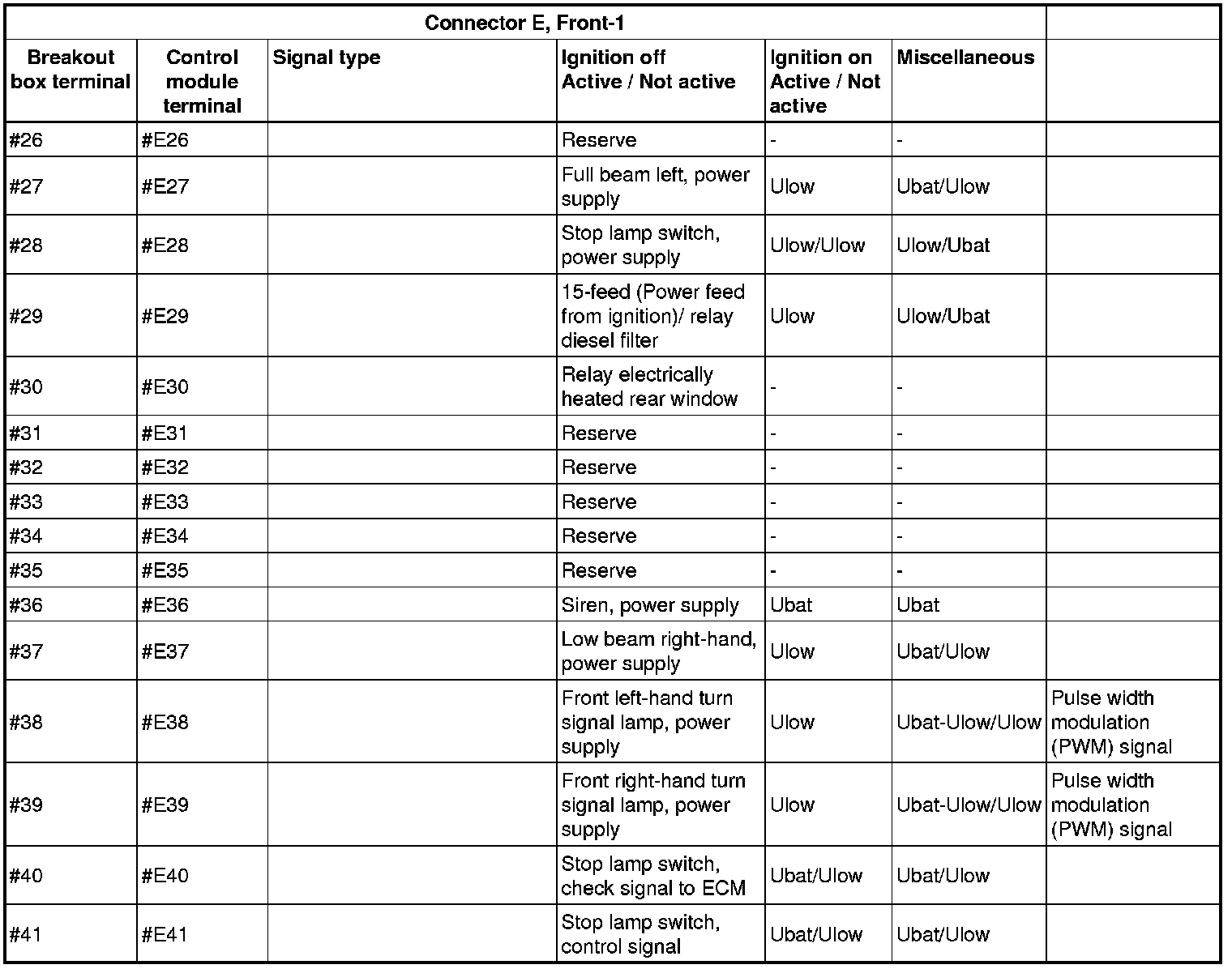

All the values given below are between the connections in column 1 and connection #A28 in column 2 (power ground). This applies unless otherwise indicated in the last column.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.
