Navigation System/MMI(R) - Please Insert Disc Message Displayed
Title MMM+ navigation system: 'please insert disc' messageRef No US20475.1.4 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3972
Func Desc road navigation
Status Released
Status Date 05-10-2012
Issue Date 05-10-2012
Reference

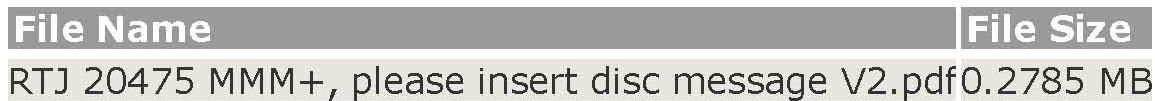

Attachment

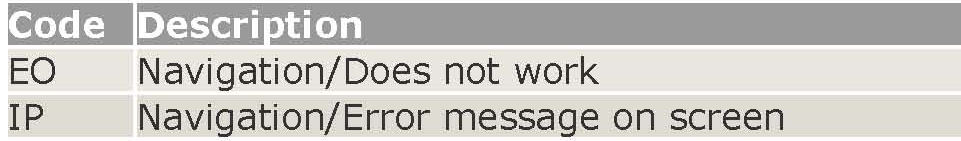

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
CSC = Customer symptom code
************************************************************************
This document supersedes the previous one dated 01-21-2011. Changes to this document are :
- Note added to use the latest SW application disc in place of the one provided in kit 31310029
- added P/N for latest version of the "SW application" disc
***********************************************************************
DESCRIPTION: The RTI (Road and Traffic Information) may display a message "Please insert disc" even though the unit is HDD (Hard Disc Drive)-based (MMM+). This symptom can also cause the MMM (Multi Media Unit) to remain active with the key in the off position (RTI display will stay in the up position) and drain the battery.
PRODUCT MODIFICATION: New bootloader SW (software) was introduced in production 09w04 from following chassis breaks:
533 - 146932
542 - 077565
544 - 463669
545 - 492891
275 - 520777
SERVICE: Upgrade the MMM+ with update CD P/N 31310029 (two discs) as per the instructions provided in the disc package.
Note:
The application SW disc contained in P/N 31310029 is not the latest SW version.
This kit includes two discs, one for the boot loader SW, and the other for the application SW*.
Follow the instructions provided in the disc package and the attachment. use only the
"bootloader" disc. from the kit then use the application SW disc 31328472 which must be ordered separately to ensure the MMM has the latest SW.
The upgrade discs can be used to update more than one vehicle.
PARTS:
Service disc kit 31310029

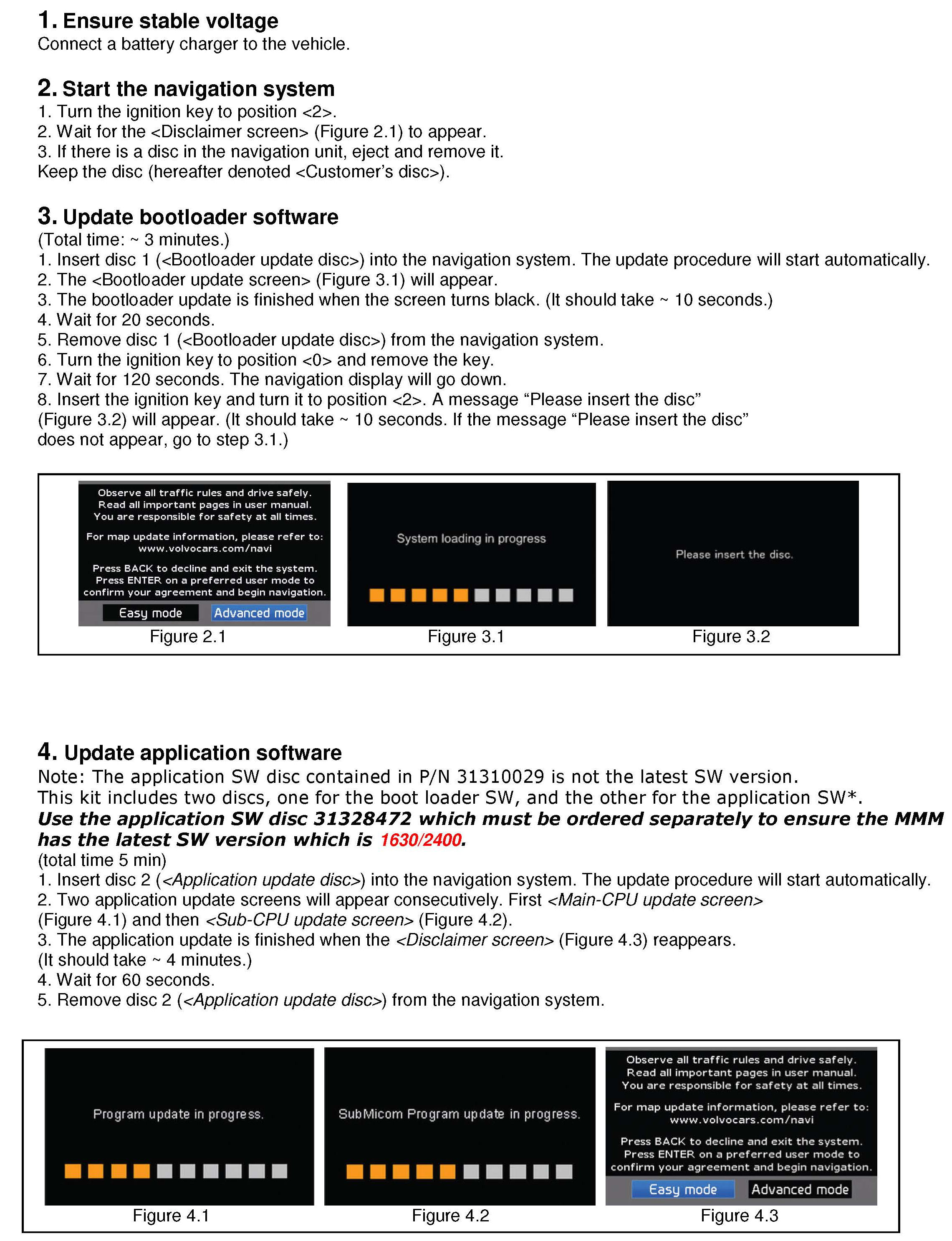

To view TJ attachment see illustrations
