Bluetooth(R) - Some Phone Book Contacts Missing

Title BPM PBAP phone book transfer is incomplete.

Ref No US24969.3.0 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 3949

Func Desc miscellaneous

Status Released

Status Date 02-21-2012

Issue Date 02-21-2012

Reference

Attachment

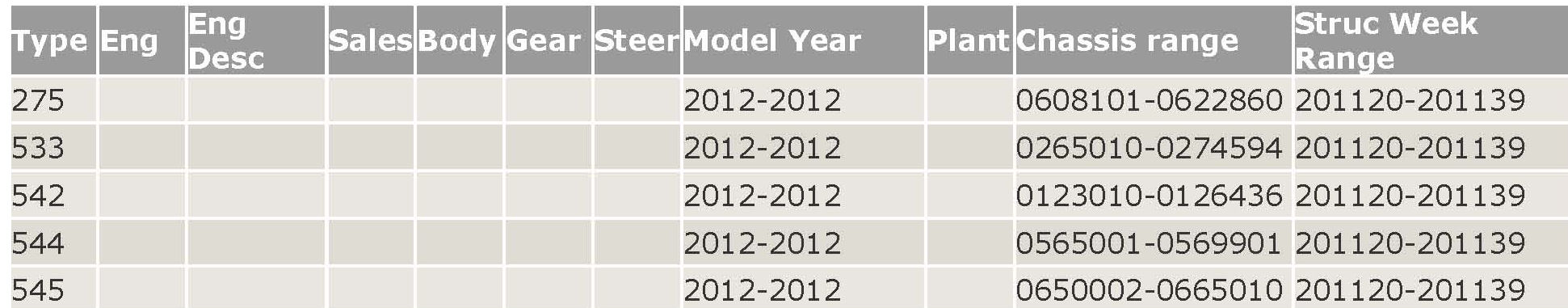

Vehicle Type

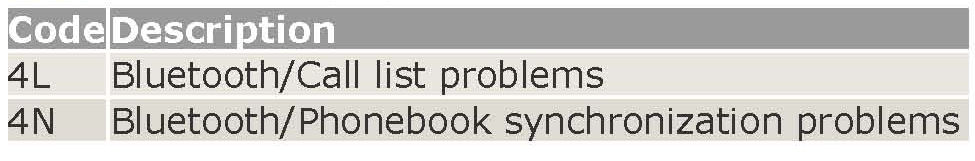

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text
CSC = Customer Symptom Code
BPM = Bluetooth Phone Module

If using a printed copy of this document, always check for the latest online version.

This document supercedes the previous one dated 2011-10-04. Changes to this document are:

Updated chassis end limits and structure weeks.

DESCRIPTION:
Phone Book Access Profile (PBAP) is now the primary used method for phone book and call lists transfer. The BPM SW for C30, C70, S40, V50 and XC90 from model year 2012 (released 2011 week 20), has a SW bug for phone book transfer using PBAP. This error has been seen for a majority of the phones tested during 2011Q2. Affected phones have the "Phone book" function set to Partial or No. Some of the transferred contacts are not shown in car. The reason is a sorting error of phone book contacts in the BPM. The missing contacts are different for one phone to another. Manual transfer will get all contacts.

PRODUCT MODIFICATION:
To prevent this symptom, an improved BPM SW was released 2011-09-20 for the aftermarket. The same BPM SW is scheduled to be released for production week 40, 2011.

SERVICE:
If the above described symptom is present, please perform a BPM Upgrade.

VOLVO STANDARD TIME GUIDE OPERATION NUMBER:
36004-2 Software control module downloading See VSTG
